BionX RIDE+ - Downtube Battery Pack

1 2
3 4
EN-22
ENGLISH
4.4 Downtube battery pack
• Battery pack size
‘RIDE+C420’downtubebatterypack,containing52Li-Mn(Lithium-Ion)cells,48V,8.8Ah,max.423Wh.

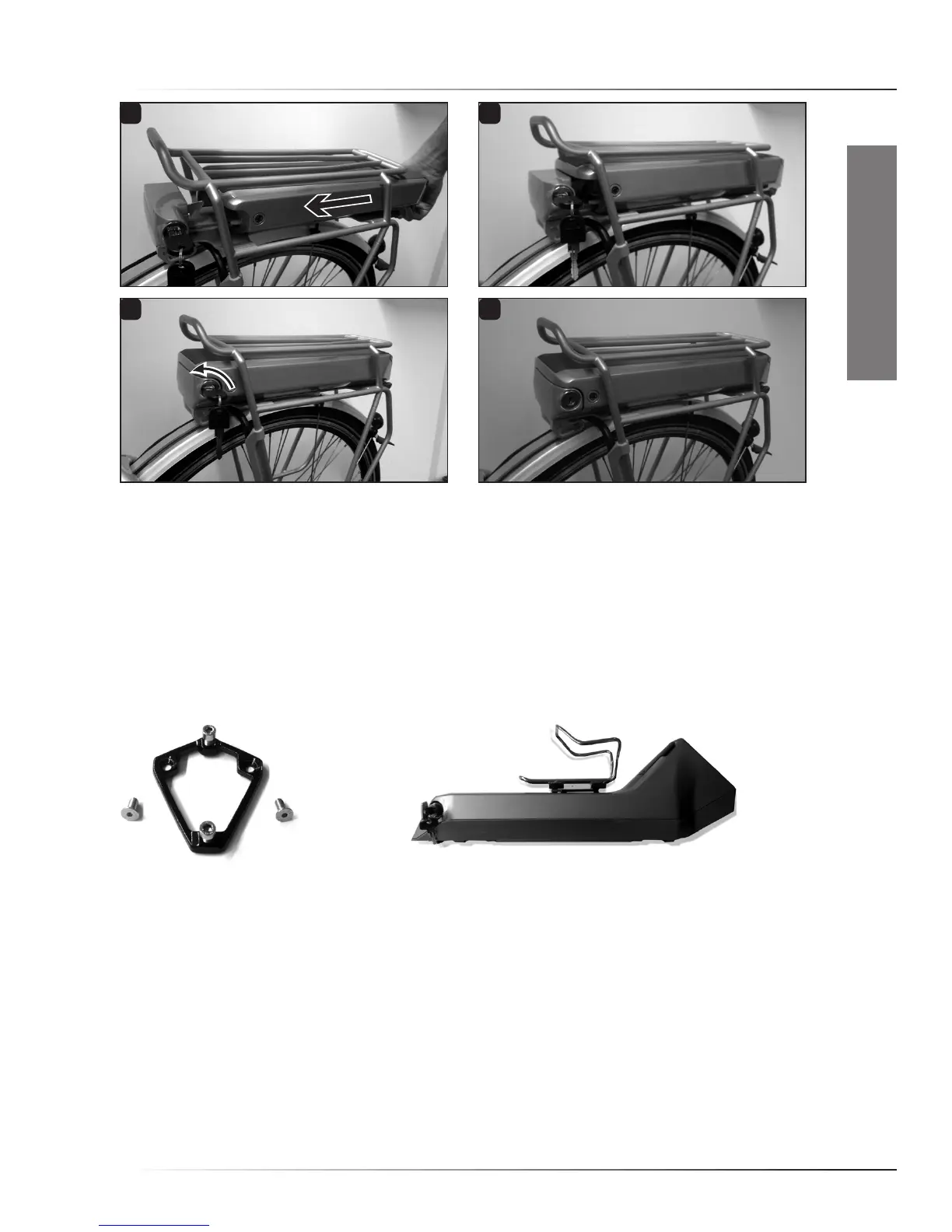

• Bottle cage holder
AbottlecagecanbemountedontheC420batterypackbyinstallingthe‘bottlecageholder’.This
adaptercanbemountedby2bolts.Subsequently,thebottlecagecanbemountedontheadapter.
Onlyusethe4boltsthataredeliveredwiththeholdertopreventdamagetothebatterycellsinside.
• Removing the battery pack
Putthekeyinthelock,twistthekeyclockwiseuntilthelockspringsout(step1,2,seenextpage).
Whenthelockspringsout,theleverofthebatterypackwillbereleased.Nowtakethekeyfromthe
lockandpulltheleverofthebatterypacksothatitslidesupwards-paralleltothedowntube-until
itreleasesfromtherail(step3).Whenthebatterypackisnotonthebike,alwaysusethe
protectivecoveronthecontactsontheframetoprotecttheelectricalsystemfromwater(step5).
Be sure to fasten the cord of the protective cover in a safe way to the frame.
InstruCtIons for use
