5-2. DIMM Module Configuration

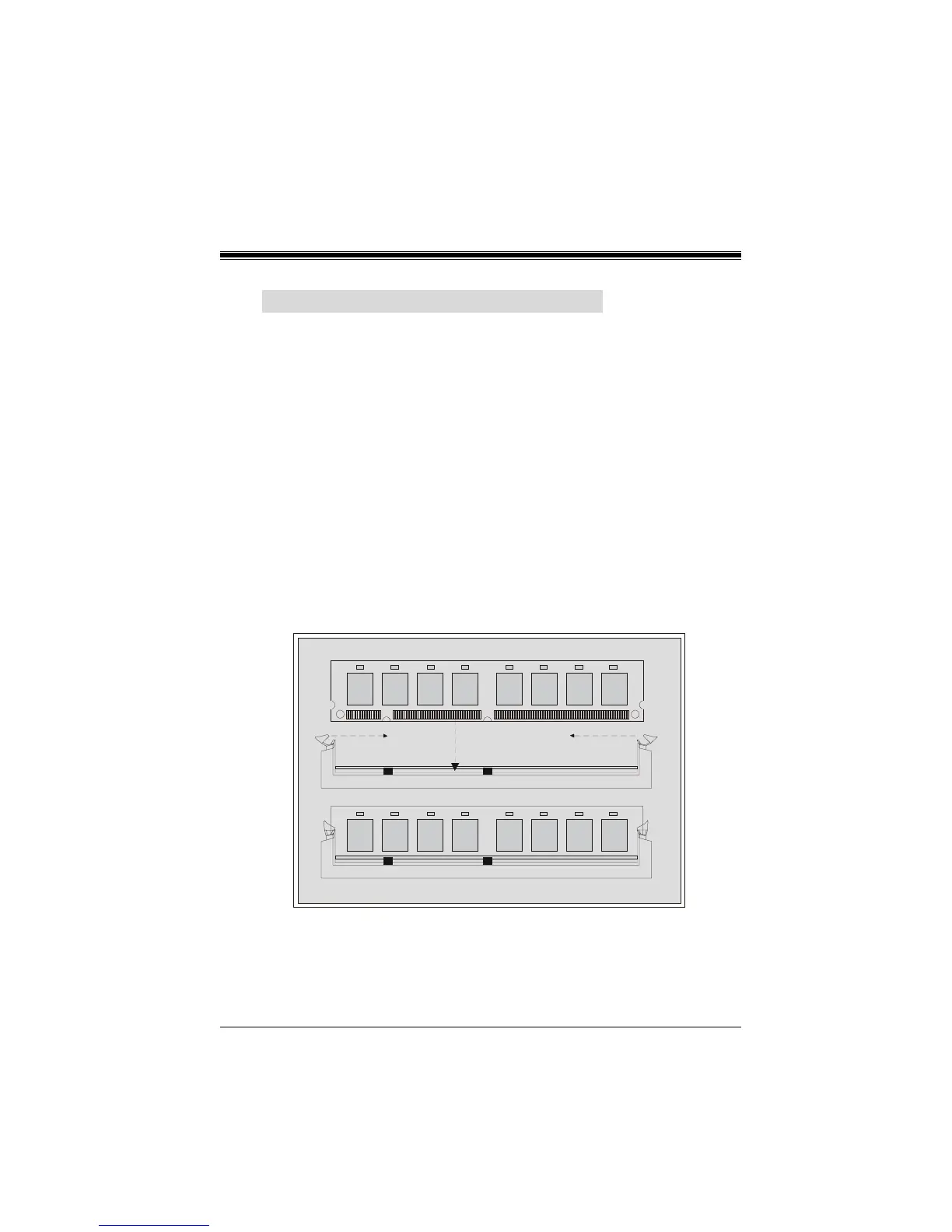

1. The DIMM socket has a “Plastic Safety Tab” and the DIMM
memory module has an asymmetrical notch”, so the DIMM
memory module can only fit into the slot in one direction.
2. Push the tabs out. Insert the DIMM memory modules into the
socket at a 90-degree angle then push down vertically so that it
will fit into place.
3. The Mounting Holes and plastic tabs should fit over the edge
and hold the DIMM memory modules in place.
SDR
