BIXOLON SRP-350plusIII User Manual

SRP-350plusIII/352plusIII
Ver. 2.00
- 16 -

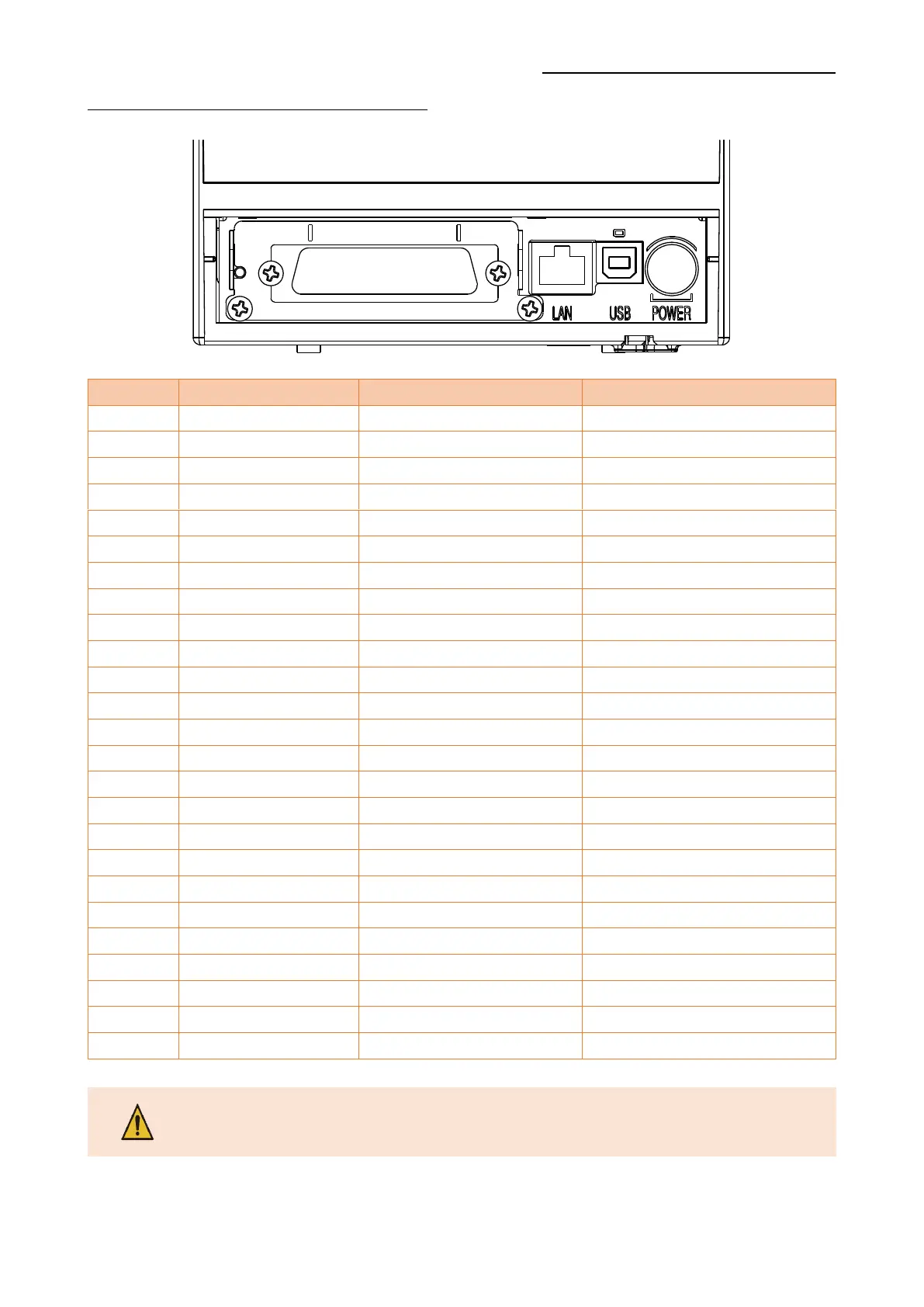

2-2-4 Parallel Interface Card (IEEE1284)
Pin No.
Source
Compatibility Mode
Nibble Mode
1
Host
nStrobe
HostClk
2
Host/Printer
Data 0 (LSB)
-
3
Host/Printer
Data 1
-
4
Host/Printer
Data 2
-
5
Host/Printer
Data 3
-
6
Host/Printer
Data 4
-
7
Host/Printer
Data 5
-
8
Host/Printer
Data 6
-
9
Host/Printer
Data 7 (MSB)
-
10
Printer
Nack
PtrClk
11
Printer
Busy
PtrBusy /Data3,7
12
Printer
Perror
AckDataReq/Data2,6
13
Printer
Select
Xflag/Data1,5
14
Host
nAutoFd
HostBusy
15
-
NC
NC
16
-
GND
GND
17
-
FG
FG
18
Printer
Logic-H
Logic-H
19~30
-
GND
GND
31
Host
nInit
nInit
32
Printer
nFault
nDataAvail/Data0,4
33
-
GND
ND
34
Printer
DK_Status
ND
35
Printer
+5V
ND
36
Host
nSelectIn
1284-Active
Connect or disconnect the communication cable while the printer
power is off. If power is on, your data may be lost.
Parallel Port

BIXOLON SRP-350plusIII Specifications

General

Type	POS printer
Character size	24 x 24 mm
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	50 - 80 µm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
USB port	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Connectivity technology	Wired
Wi-Fi	No
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, ITF-14, ITF-25, Micro QR Code, QR Code, UPC-A, UPC-E
Autocutter durability	1.8 million cuts
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	146 mm
Width	145 mm
Height	204 mm
