BIXOLON SRP-350plusIII User Manual

SRP-350plusIII/352plusIII
Ver. 2.00
- 20 -

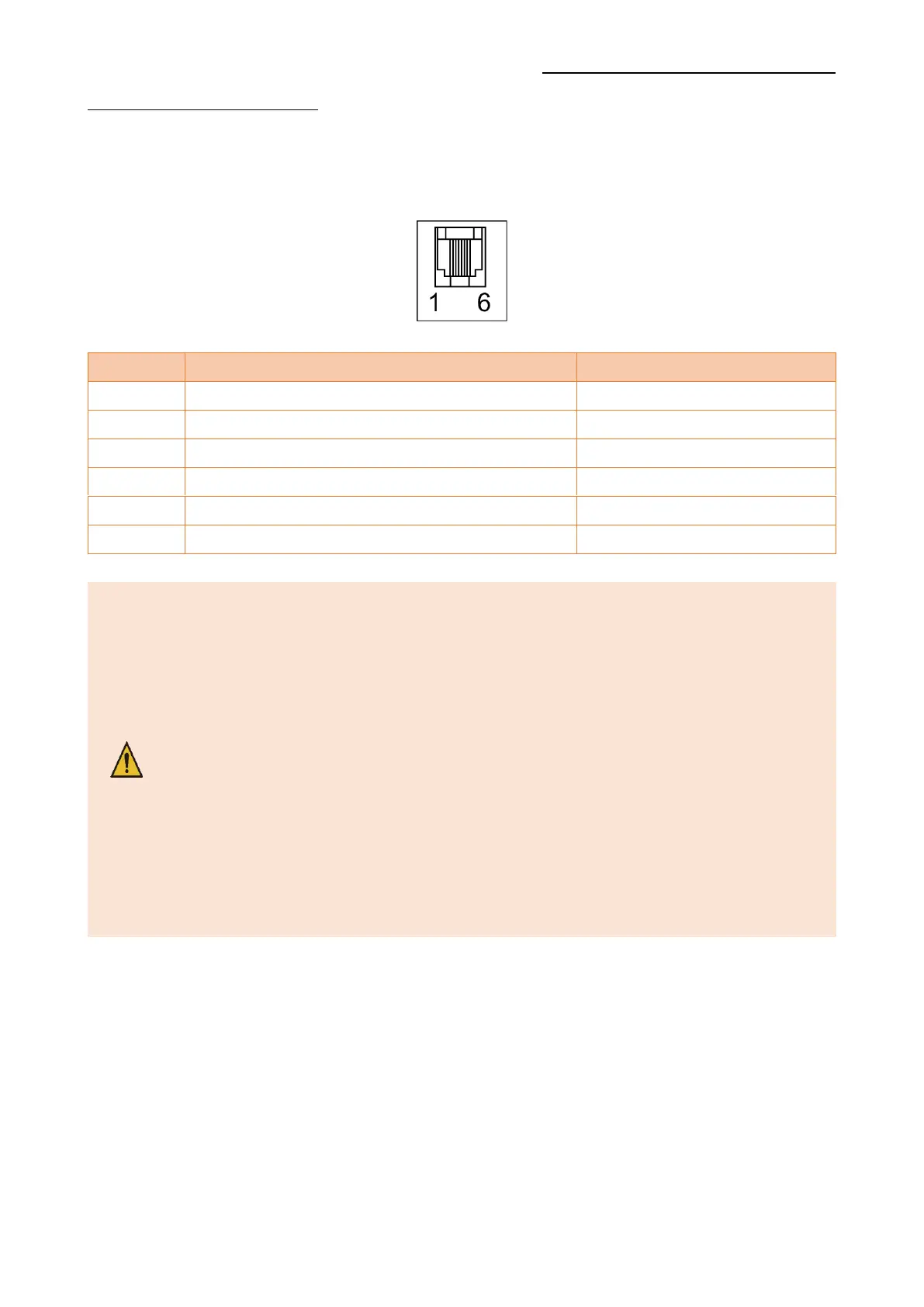

2-2-8 Drawer Kick-out Port
Connect the Drawer Kick-out connection cable to the drawer kick-out port on the rear
side of the printer.
Pin No.
Signal Name
Direction
1
Frame Ground
-
2
Drawer Kick-out Drive Signal 1
Output
3
Drawer Open/Close Signal
Input
4
+24V
-
5
Drawer Kick-out Drive Signal 2
Output
6
Signal Ground
-
- Use a cash drawer that meets the printer specifications.
Using a cash drawer that is inappropriate to the specs or using
it as a power supply for a separate device may result in damage to
the product.
- Do not connect a telephone line to the drawer kick-out port.
Otherwise, the telephone line and the computer may be damaged.
- Do not allow a foreign object such as a conductor to touch the
drawer kick-out port. This may result in damage to the product.
- Make sure to use a cash drawer with an internal coil resistance of
24 Ω or higher. (The maximum current is 1A.)
- The open signal time for the cash drawer should not exceed 0.8
seconds. After opening the cash drawer, make sure to idle for at
least 3.2 seconds (at least 4 times that of the open signal time)
before operating it.

BIXOLON SRP-350plusIII Specifications

General

Type	POS printer
Character size	24 x 24 mm
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	50 - 80 µm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
USB port	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Connectivity technology	Wired
Wi-Fi	No
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, ITF-14, ITF-25, Micro QR Code, QR Code, UPC-A, UPC-E
Autocutter durability	1.8 million cuts
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	146 mm
Width	145 mm
Height	204 mm
