Rev. 1.00
- 10 -
SRP-F310/312/313II

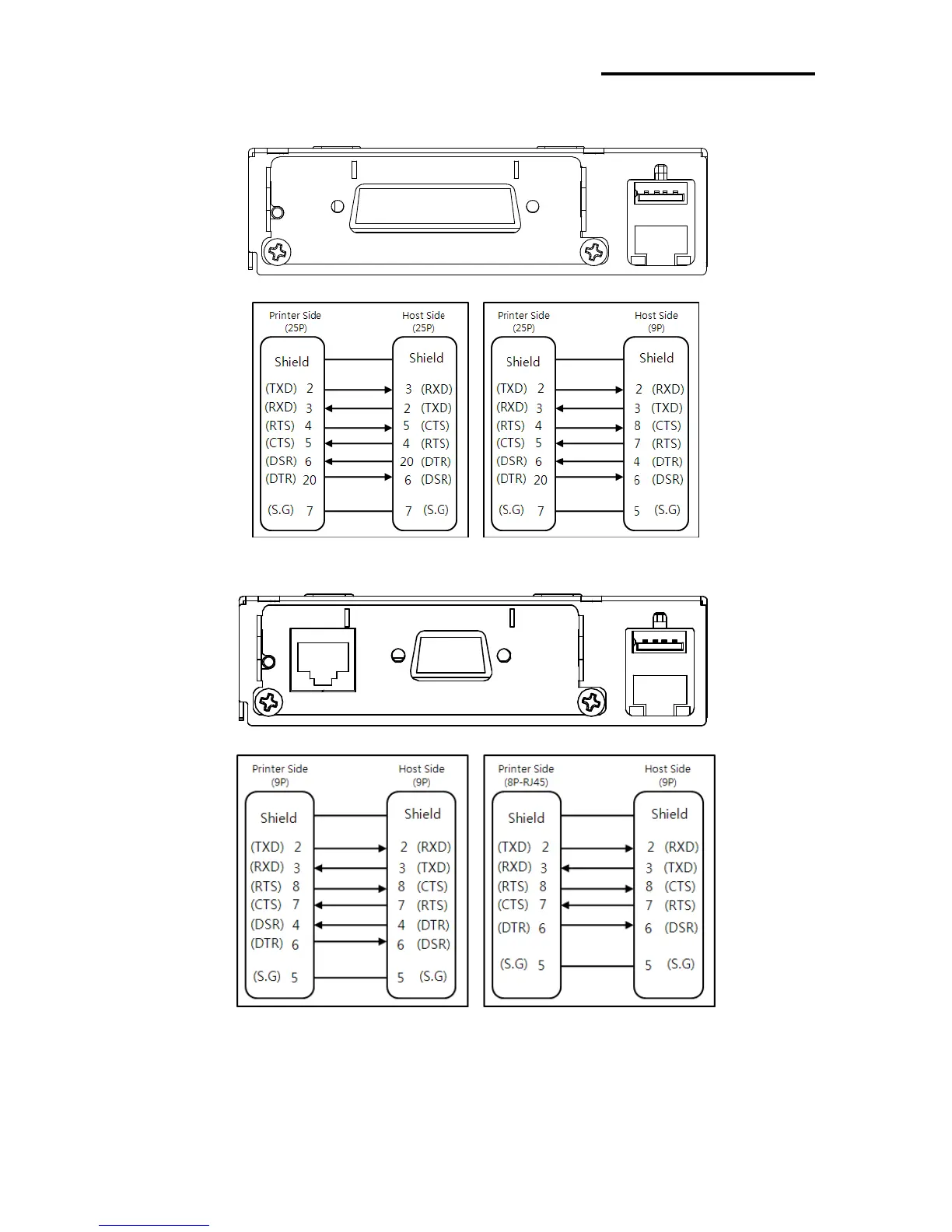

1-2-3 Serial Interface (RS-232C)
1-2-3-1 Single Interface
1-2-3-2 Dual Interface
USB
connector
Interface connector
USB
connector
ETHERNET
connector
ETHERNET
connector
Interface connector
