BIXOLON SRP-F310 User Manual

Rev. 1.00
- 13 -
SRP-F310/312/313II

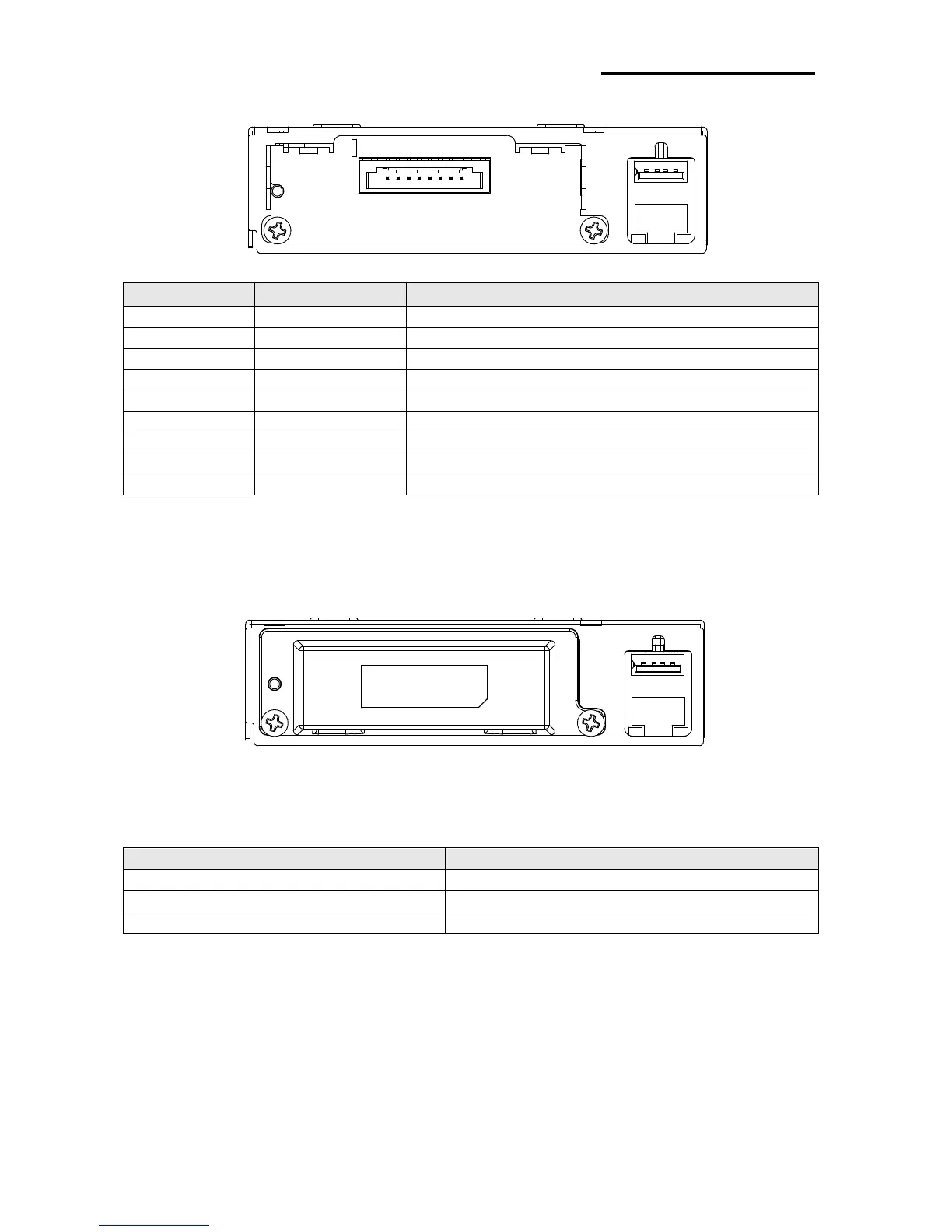

1-2-5 Powered USB Interface
Pin No.
Signal Name
Function
Shield
Shield
Frame Ground
1
PGND
Main Power Ground
2
VPP24V
Main Power
3
GND
Signal Ground
4
D+
Data Line (D+)
5
D-
Data Line (D-)
6
VBUS
Hose Power
7
VPP24V
Main Power
8
PGND
Main Power Ground
* For cable and connector information, refer to the web-site (www.powered.org)
* In case of using Powered USB interface, the other USB interface provided by default is
not useful. (In this case, USB communication is only available through the Powered USB)
1-2-6 Bluetooth / WLAN Interface
1-2-6-1 Bluetooth Interface
1) Bluetooth Communication Specifications
Item
Specifications
Frequency
2.402~2.480 GHz
Version
2.1 + EDR
Module Type
Class 1
2) Bluetooth Connection
Printer can be connected to terminal devices with Bluetooth communication capability
(PDA, PC, smartphone, tablet PC, etc.)
* Refer to the Bluetooth Connection Manual for more detailed instructions about how to
establish the connection.
USB
connector
Interface connector
USB
connector
Interface card
ETHERNET
connector
ETHERNET
connector

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
