BIXOLON SRP-F310 User Manual

Rev. 1.00
- 9 -
SRP-F310/312/313II
1-2 Interface

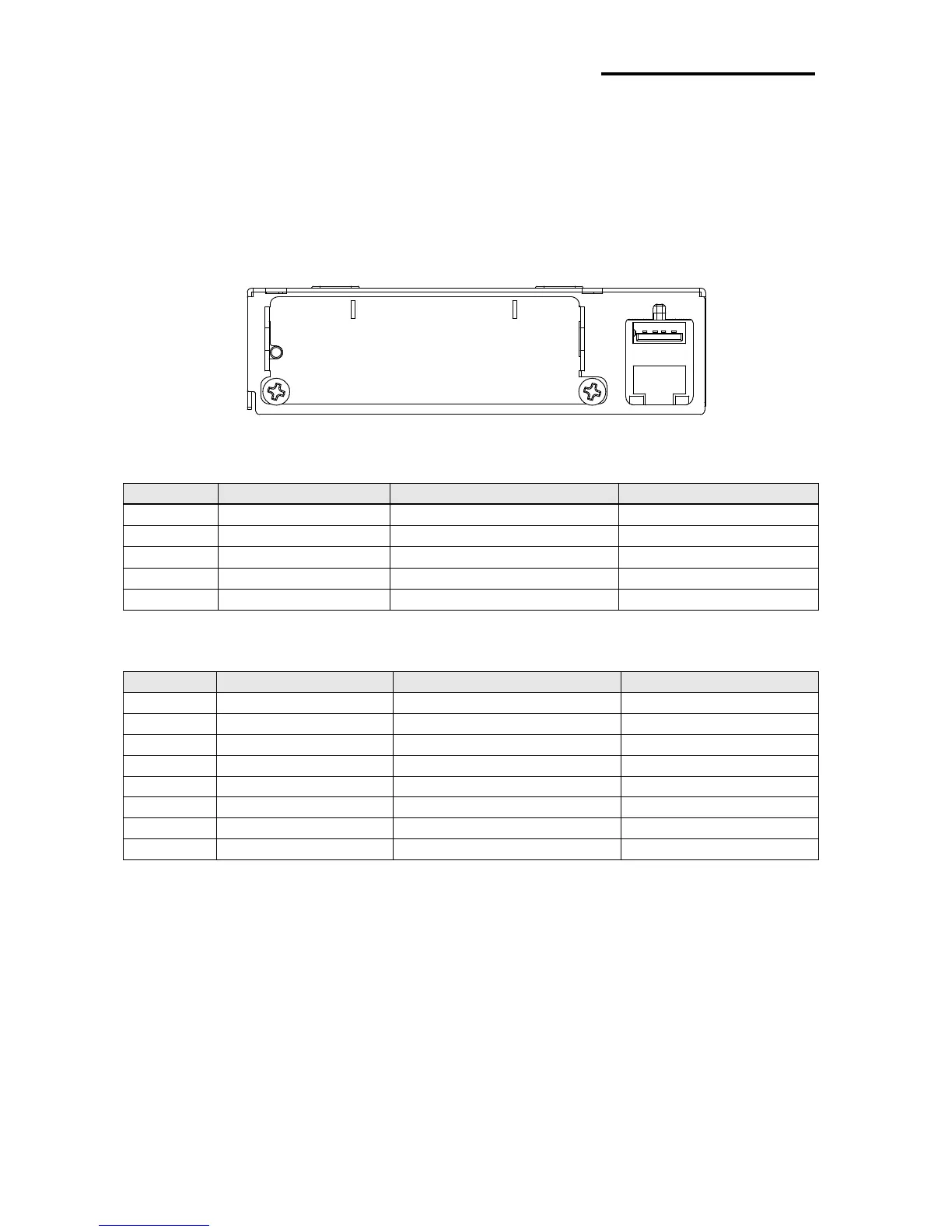

You can connect up the three cables to the printer.
They all connect to the connector panel on the back of the printer, which is shown below:
※ CAUTIONS
Before connecting any of the cables, make sure that both the printer and the host
are turned off.
1-2-1 USB Interface
Pin No.
Signal Name
Assignment (Color)
Function
Shell
Shield
Drain Wire
Frame Ground
1
VBUS
Red
Host Power
2
D-
White
Data Line (D-)
3
D+
Green
Data Line (D+)
4
GND
Black
Signal Ground
1-2-2 Ethernet Interface
Pin No.
Signal Name
Color
Function
1
TD+
WHITE ORANGE
Transmit +
2
TD-
ORANGE
Transmit -
3
TCT
WHITE GREEN
Receive +
4
NC
BLUE
-
5
NC
WHITE BLUE
-
6
RCT
GREEN
Receive -
7
RD+
WHITE BROWN
-
8
RD-
BROWN
-
* IP and MAC information can be obtained from the self-test. Refer to the Ethernet User’s
Manual that is available from the BIXOLON website for more detailed information.
* For using this interface in the Bluetooth or WLAN applied product, Printer wiring
requires to use double shielded (Cat 7) Ethernet cable.
ETHERNET
connector
USB
connector

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
