BIXOLON SRP-F310 User Manual

Rev. 1.00
- 18 -
SRP-F310/312/313II
1-6 Using 83mm Paper
Use of the partition depends on the width of the paper.

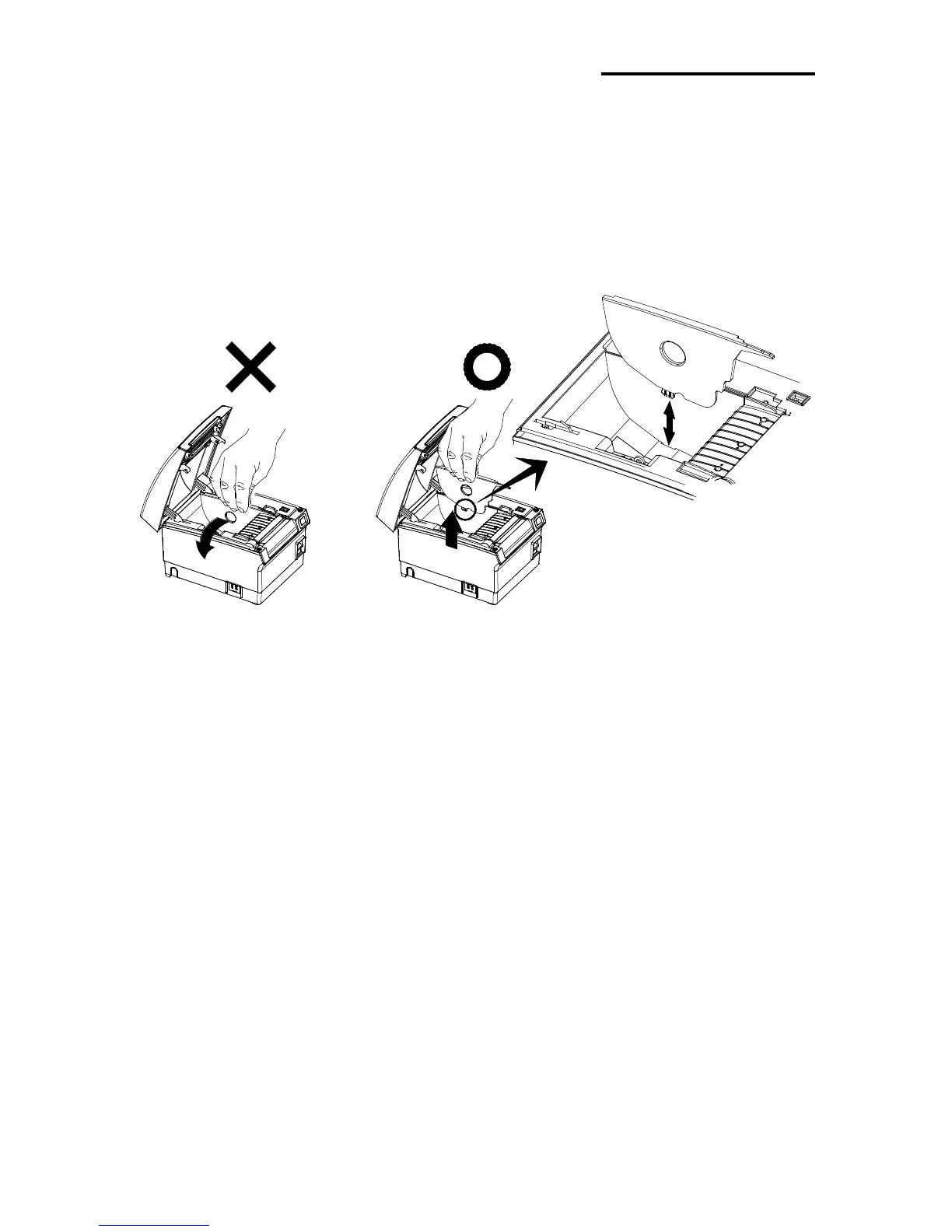

1-6-1 Remove the partition as shown in the following picture when using 83 mm paper.
※ NOTE
Partition is installed at the factory for 80 mm paper.
Fig 1 Fig 2
※ CAUTIONS
Do not rotate the partition while removing it from the printer as shown in Fig 1 because
the holder may be damaged. Lift up the partition as shown in Fig 2 to remove it safely.
1-6-2 The rest of the installation process after this step is the same as the procedure
described in 1-5.
1-7 Recommended Papers
- TF50KS-E (Paper Thickness: 65μm): Nippon Paper Industries Co., Ltd.
- PD 160R (Paper Thickness: 75μm): New Oji Paper Mfg. Co., Ltd.
- P350 (Paper Thickness: 62μm): Kansaki Specialty Paper, Inc. (USA)
※ CAUTIONS
Use of papers other than those recommended above may damage TPH or degrade
the printing quality and our company is not responsible for the damage caused by
non-recommended papers. If you have to use other products, we recommend that you
use papers with a similar level of quality to the recommended ones.

BIXOLON SRP-F310 Specifications

General

Color	No
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Maximum printing width	72 mm
Network ready	Yes
Ethernet LAN	-
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired
Power requirements	AC 100-240V / DC 24V, 2.5A
Compatible operating systems	Windows, Mac, Linux Kernel 2.4.18+
Number of fonts	3
Built-in barcodes	CODABAR (NW-7), EAN13, EAN8, ITF-14, UPC-A, UPC-E
Operating temperature (T-T)	0 - 45 °C
Maximum roll diameter	105 mm
Supported paper width	80 - 83 mm

Weight and Dimensions

Depth	203 mm
Width	154 mm
Height	148 mm
Weight	2000 g
