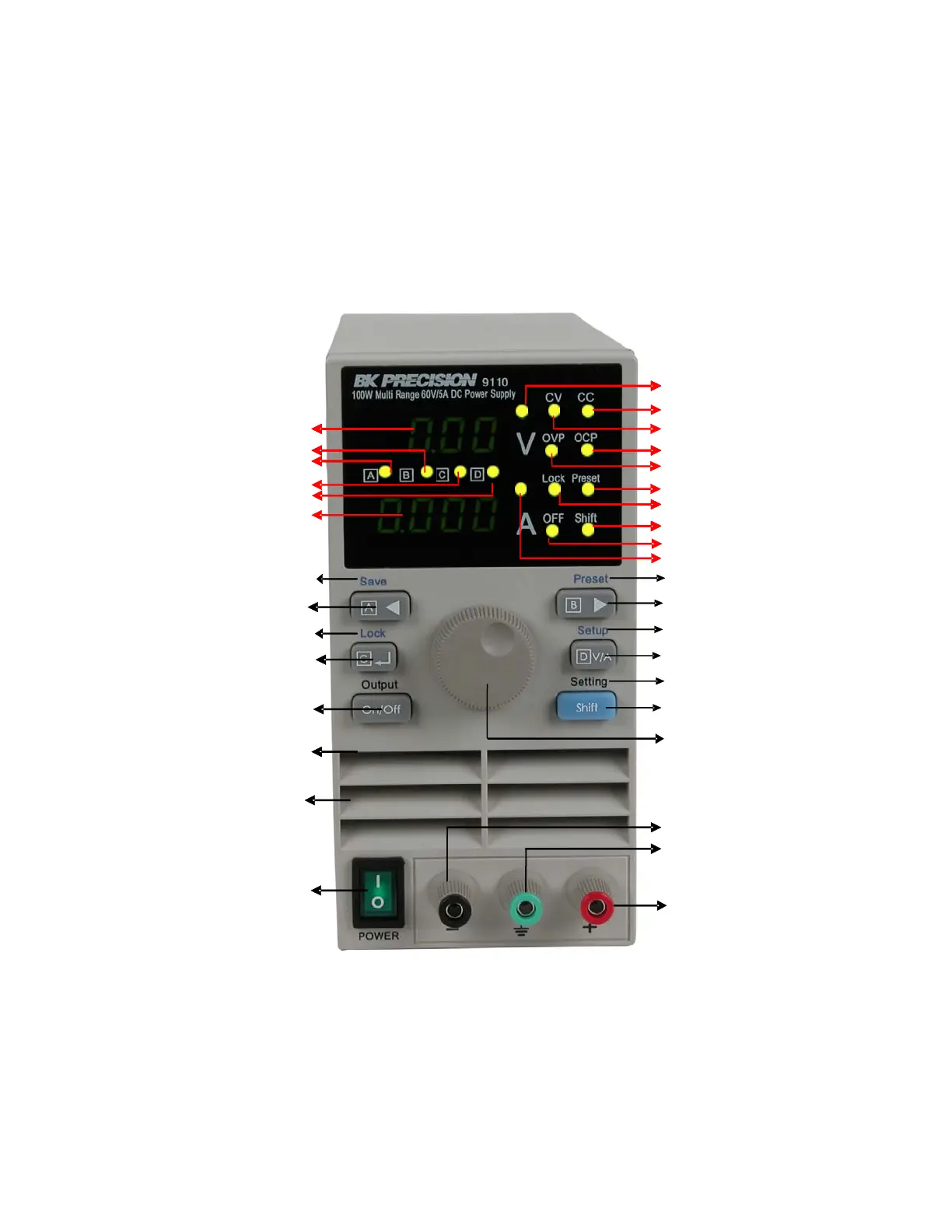

Front Panel layout
CC mode indicator
CV mode indicator
OCP indicator
OVP indicator
Keys locked indicator
Shift mode indicator
Output off indicator
knob
Display Voltage and Current setting
Secondary function key
Output +
Output -
Ground
Main power on/off
Air flow input
Keyboard lock (Shift)
Store voltage-ampere combination (Shift)
Current value
Cursor position B or preset B is active
Voltage value
Toggle between Voltage/Current
setting or store/recall preset D
Set Voltage indicator
OCP indicator
OVP indicator
Preset mode indicator
Set Current indicator
Output on/off
Enter or store/recall preset C values
Move cursor left or store/recall
preset A values
Current value
Cursor position A or preset A is active
Cursor position C or preset C is active
Cursor position D or preset D is active
Enter OVP, OCP, preset mode
Move cursor left or store/recall
preset B values
Recall Preset values
To Next Page
