Mini Converter SDI to Audio 4K
23
Blackmagic Mini Converter SDI to Audio 4K
De-embed 4 channels of audio from any SDI video connection and output to 4 channels of analog audio
or 8 channels of AES/EBU digital. Output to audio equipment such as audio mixers, analog decks and
reference monitors. Additional SDI audio channels can be de-embedded by daisy chaining another Mini
Converter SDI to Audio 4K to your converter's SDI output.

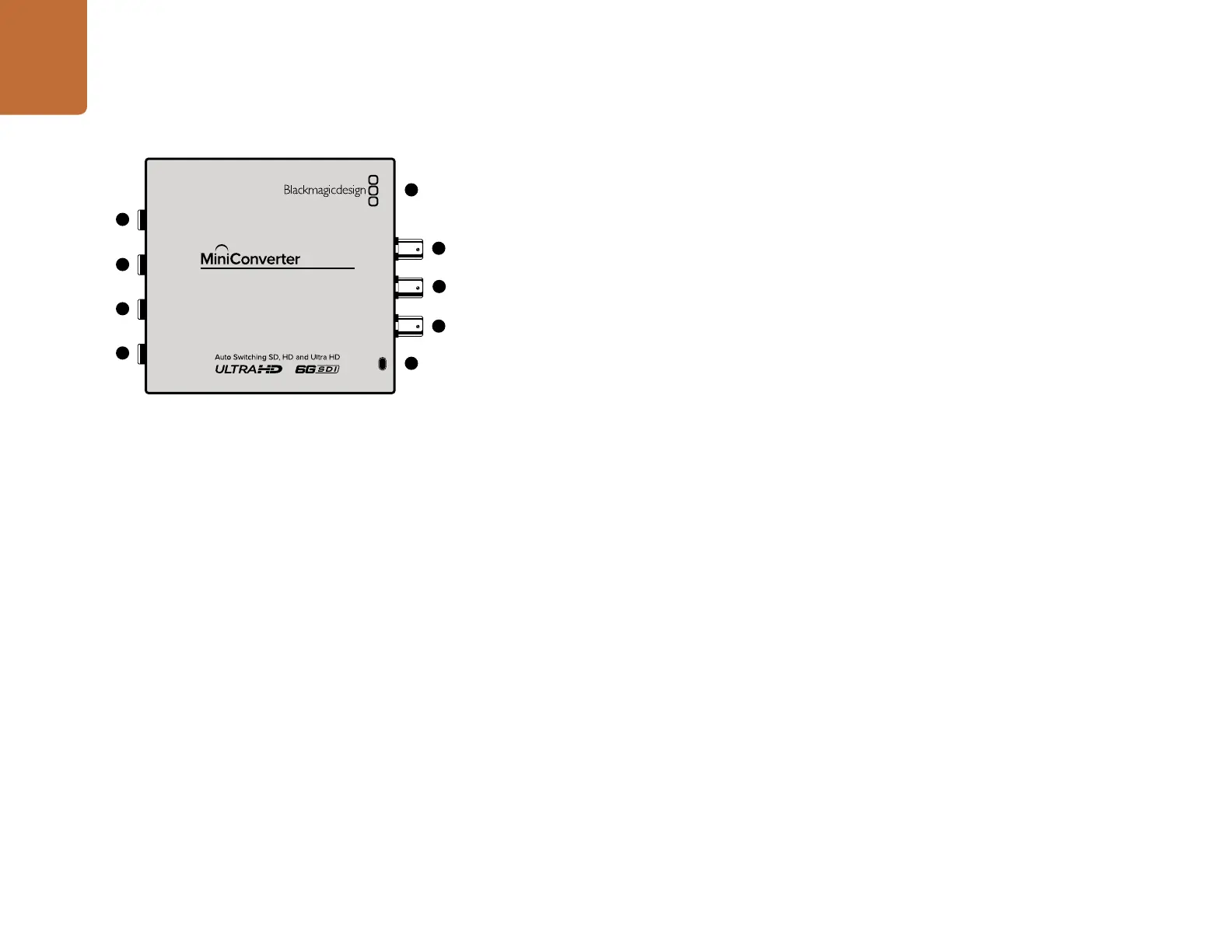

Connectors
1. CH 1 ANALOG or CH 1 & 2 AES/EBU
Balanced analog audio channel 1, or AES/EBU digital audio channels 1 and 2 output 1/4" TRS connector.
2. CH 2 Analog or CH 3 & 4 AES/EBU
Balanced analog audio channel 2, or AES/EBU digital audio channels 3 and 4 output 1/4" TRS connector.
3. CH 3 Analog or CH 5 & 6 AES/EBU
Balanced analog audio channel 3, or AES/EBU digital audio channels 5 and 6 output 1/4" TRS connector.
4. CH 4 Analog or CH 7 & 8 AES/EBU
Balanced analog audio channel 4, or AES/EBU digital audio channels 7 and 8 output 1/4" TRS connector.
5. MINI-B USB PORT
Connects to the Converter Utility software via your Mac OS X or Windows computer. The Mini Converter’s
internal software is also updated using the USB port.
6. SDI OUT
Loop through SDI video output BNC connector.
7. ALT SDI IN
Redundant SDI input provided as an optional back up. When using both the SDI IN and ALT SDI IN, the
ALT SDI IN will take over should the SDI IN signal fail. The SDI LOCK LED will flash indicating that the
converter has switched to the ALT SDI IN.
8. SDI IN
Primary SDI input.
9. POWER +12V
12 volt power supply input.
CH 1 ANALOG or
CH 1&2 AES/EBU
SDI LOCK
SDI OUT
ALT SDI IN
SDI IN
POWER
+12V
CH 2 ANALOG or
CH 3&4 AES/EBU
CH 3 ANALOG or
CH 5&6 AES/EBU
CH 4 ANALOG or
CH 7&8 AES/EBU
SDI to AUDIO 4K
1
ON
2345678
Mini Converter SDI to Audio 4K
1
2
3
4
5
7
6
8
9
