Blackmagic Mini Converter Heavy Duty Analog to SDI
Convert video and audio from analog equipment such as Betacam SP decks, HDV cameras and game
consoles to SD/HD-SDI video. A choice of analog and digital formats is supported, including component
SD/HD, S-Video, or composite NTSC and PAL. The converter’s HD-SDI outputs include the option to
embed digital AES/EBU or analog audio.

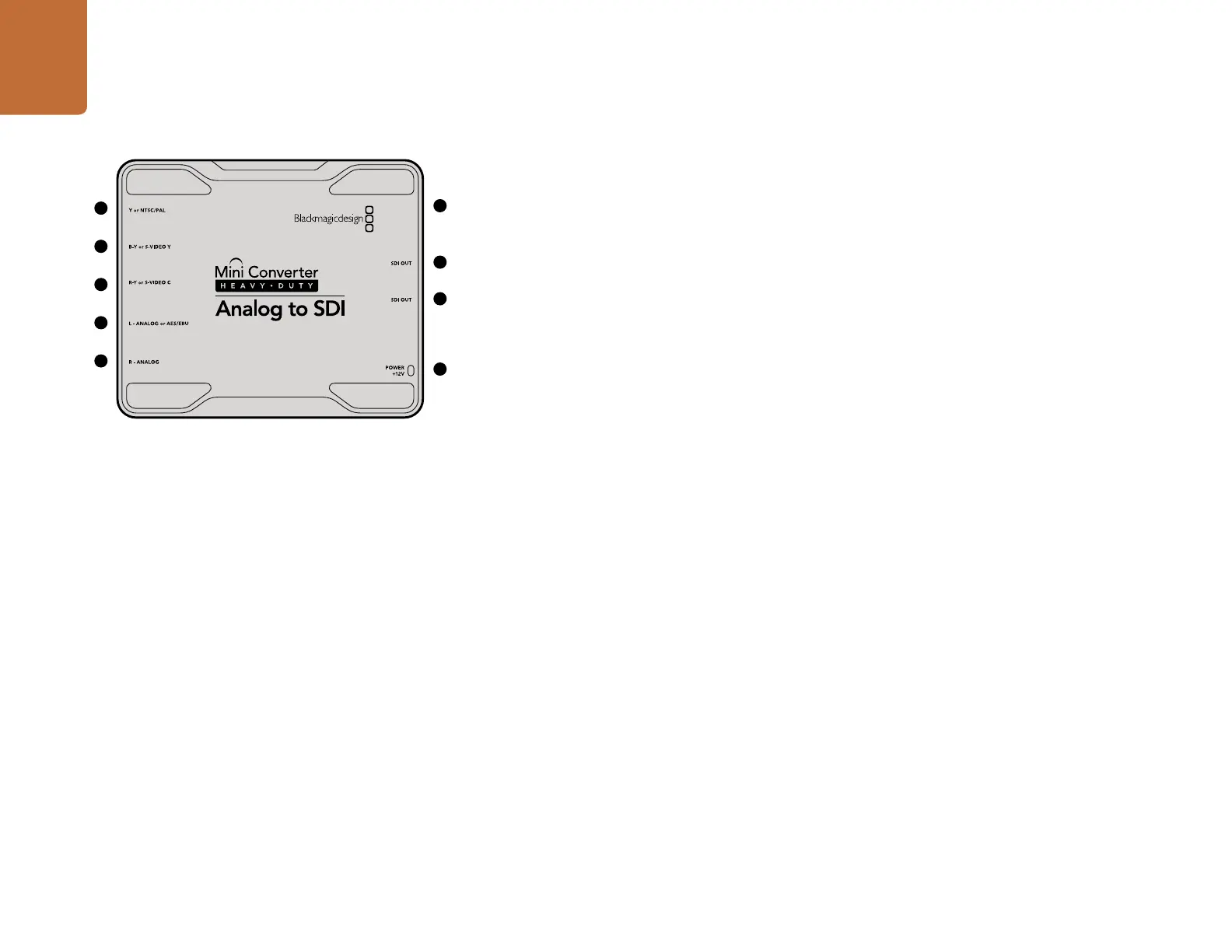

Connectors
1. Y or NTSC/PAL
Analog component Y, or composite NTSC/PAL input BNC connector.
2. B-Y or S-VIDEO Y
Analog component B-Y, or S-Video Y input BNC connector.
3. R-Y or S-VIDEO C
Analog component R-Y, or S-Video C input BNC connector.
4. L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio input 1/4" TRS connector.
5. R - ANALOG
Balanced right channel analog audio input 1/4" TRS connector.
6. MINI-B USB PORT
Connects to the Converter Utility software via your Mac OS X or Windows computer. The Mini Converter’s
internal software is also updated using the USB port.
7. SDI OUT
SDI video output BNC connector.
8. SDI OUT
Secondary SDI output.
9. POWER +12V
12 volt power supply input.
Mini Converter Heavy Duty Analog to SDI
1
2
3
4
5
7
6
8
9
