Mini Converter Optical Fiber 4K
35
Blackmagic Mini Converter Optical Fiber 4K
Convert SD/HD and single link 6G-SDI to Optical Fiber and Optical Fiber to SD/HD and single link 6G-SDI
simultaneously. Mini Converter Optical Fiber 4K automatically switches between SD/HD/3G/6G-SDI
video standards and both directions are completely independent. Use this converter if you need to send
and receive SDI signals over longer distances than traditional SDI cables will support. SD video can be
sent up to 45 km or 147000 feet using optical fiber, compared to just 300 feet with copper SDI cables.
6G-SDI can be sent up to 25 km away!

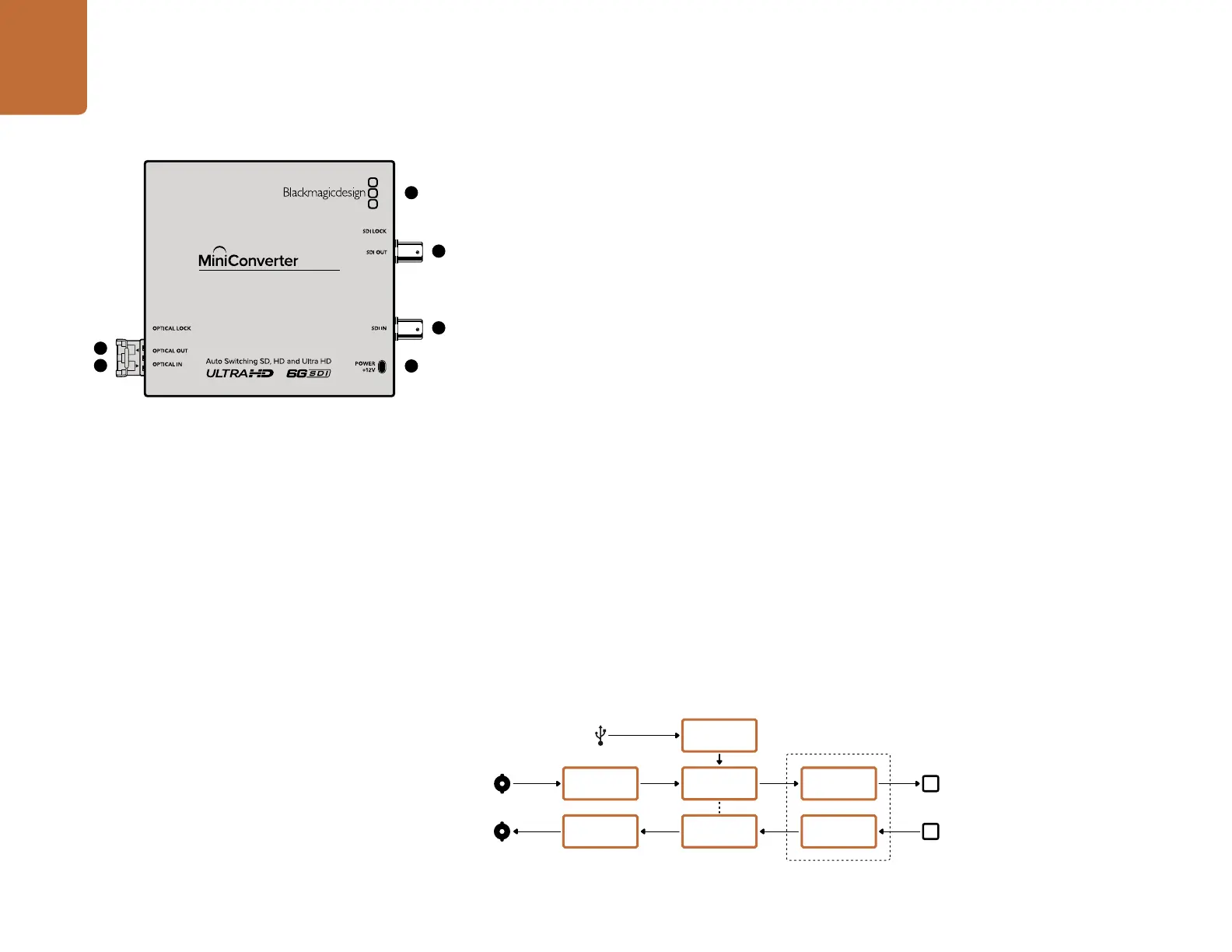

Connectors
1. MINI-B USB PORT.
The Mini Converter’s internal software is updated using the USB port.
2. OPTICAL OUT
Optical fiber output supports a single mode optical fiber cable with LC connector.
3. OPTICAL IN
Optical fiber input supports a single mode optical fiber cable with LC connector.
4. SDI OUT
SDI video output on a BNC connector for connection to traditional SDI equipment.
5. SDI IN
SDI input on a BNC connector for connection to traditional SDI equipment.
6. POWER +12V
12 volt power supply input.
Mini Converter Optical Fiber 4K Block Diagram
Reclocker
1310nm Laser
Driver with
LC Connector
Automatic SDI/
HD-SDI/6G HD-
SDI Equalizer
SDI Out
SDI In
Optical Out
Reclocker
Automatic SDI/
HD-SDI/6G
HD-SDI Driver
Optical In
SFP Optical Fiber Transmitter
and Receiver Module
1310nm Laser
Receiver with
LC Connector
Central
Processor and
Firmware
USB
Optical Fiber 4K
2
3
4
5
6
Mini Converter Optical Fiber 4K
1
