Blackmagicdesign Mini Converter User Manual

Mini Converter SDI to Analog 4K
7
Blackmagic Mini Converter SDI to Analog 4K
Convert from SD/HD/3G/6G-SDI to analog component, NTSC and PAL video out, plus balanced AES/
EBU and analog audio out. This down converter lets you connect up to 6G-SDI video to SD or HD analog
equipment and easily connects to video monitors and decks such as Betacam SP and VHS. You can even
output pairs of analog audio from 16 de-embedded SDI audio channels.

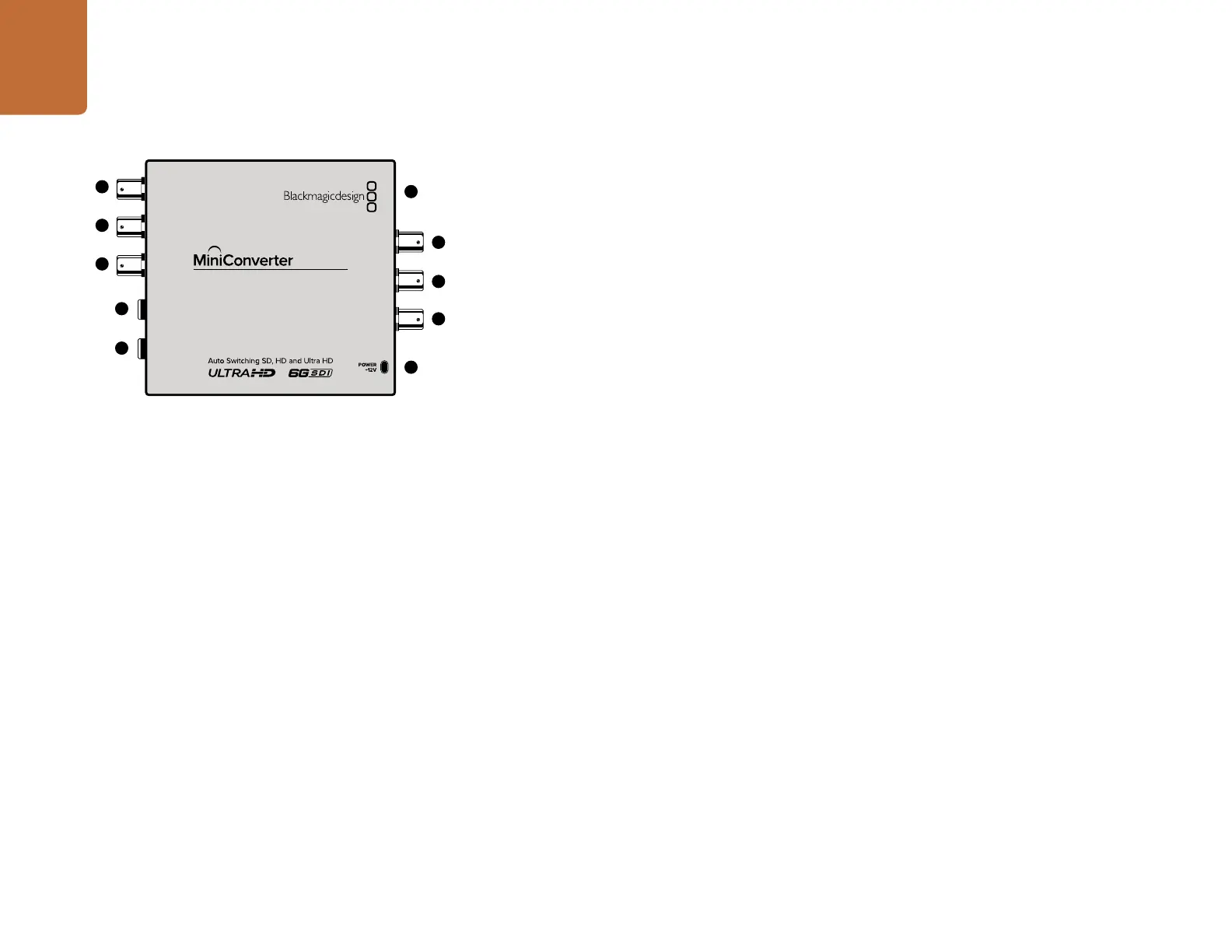

Connectors
1. Y or NTSC/PAL
Analog component Y, composite or NTSC/PAL output BNC connector.
2. B-Y or S-VIDEO Y
Analog component B-Y, or S-Video Y output BNC connector.
3. R-Y or S-VIDEO C
Analog component R-Y, or S-Video C output BNC connector.
4. L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio output 1/4" TRS connector.
5. R - ANALOG
Balanced right channel analog audio output 1/4" TRS connector.
6. MINI-B USB PORT
Connects to the Converter Utility software via your Mac OS X or Windows computer. The Mini Converter’s
internal software is also updated using the USB port.
7. SDI OUT
SDI video output BNC connector.
8. ALT SDI IN
Redundant SDI input is provided as an optional back up.
9. SDI IN
Primary SDI input.
10. POWER +12V
12 volt power supply input.
L -
ANALOG or
AES/EBU
Y or
NTSC/PAL
B-Y or
S-VIDEO Y
R-Y or
S-VIDEO C
R - ANALOG
SDI LOCK
SDI OUT
ALT SDI IN
SDI IN
SDI to Analog 4K
Mini Converter SDI to Analog 4K
1
2
3
4
5
7
8
9
6
10

Blackmagicdesign Mini Converter Specifications

General

Model	Mini Converter
Manufacturer	Blackmagic Design
Category	Media Converter
Input	SDI
Output	HDMI
Audio Input	SDI Embedded Audio
Audio Output	HDMI Embedded Audio
Operating Temperature	0°C to 40°C
Supported Resolutions	720p, 1080i, 1080p
