Mini Converter SDI Multiplex 4K
46
6. Mini-B USB port
Connects to the Converter Utility software via your Mac OS X or Windows computer. The Mini Converter’s
internal software can also be updated using the USB port.
Supported formats are listed under each SDI output:
7. SDI OUT 1
 SD/HD-SDI
 Single link 3G-SDI
 Single link 6G-SDI
 Dual link HD-SDI channel A
 Dual link 3G-SDI Ultra HD channel A
 Quad link HD-SDI Ultra HD channel A
8. SDI OUT 2
 SD/HD-SDI
 Single link 3G-SDI
 Single link 6G-SDI
 Dual link HD-SDI channel B
 Dual link 3G-SDI Ultra HD channel B
 Quad link HD-SDI Ultra HD channel B
9. SDI OUT 3
 SD/HD-SDI
 Single link 3G-SDI
 Single link 6G-SDI
 Dual link HD-SDI channel A
 Dual link 3G-SDI Ultra HD channel A
 Quad link HD-SDI Ultra HD channel C
10. SDI OUT 4
 SD/HD-SDI
 Single link 3G-SDI
 Single link 6G-SDI
 Dual link HD-SDI channel B
 Dual link 3G-SDI Ultra HD channel B
 Quad link HD-SDI Ultra HD channel D

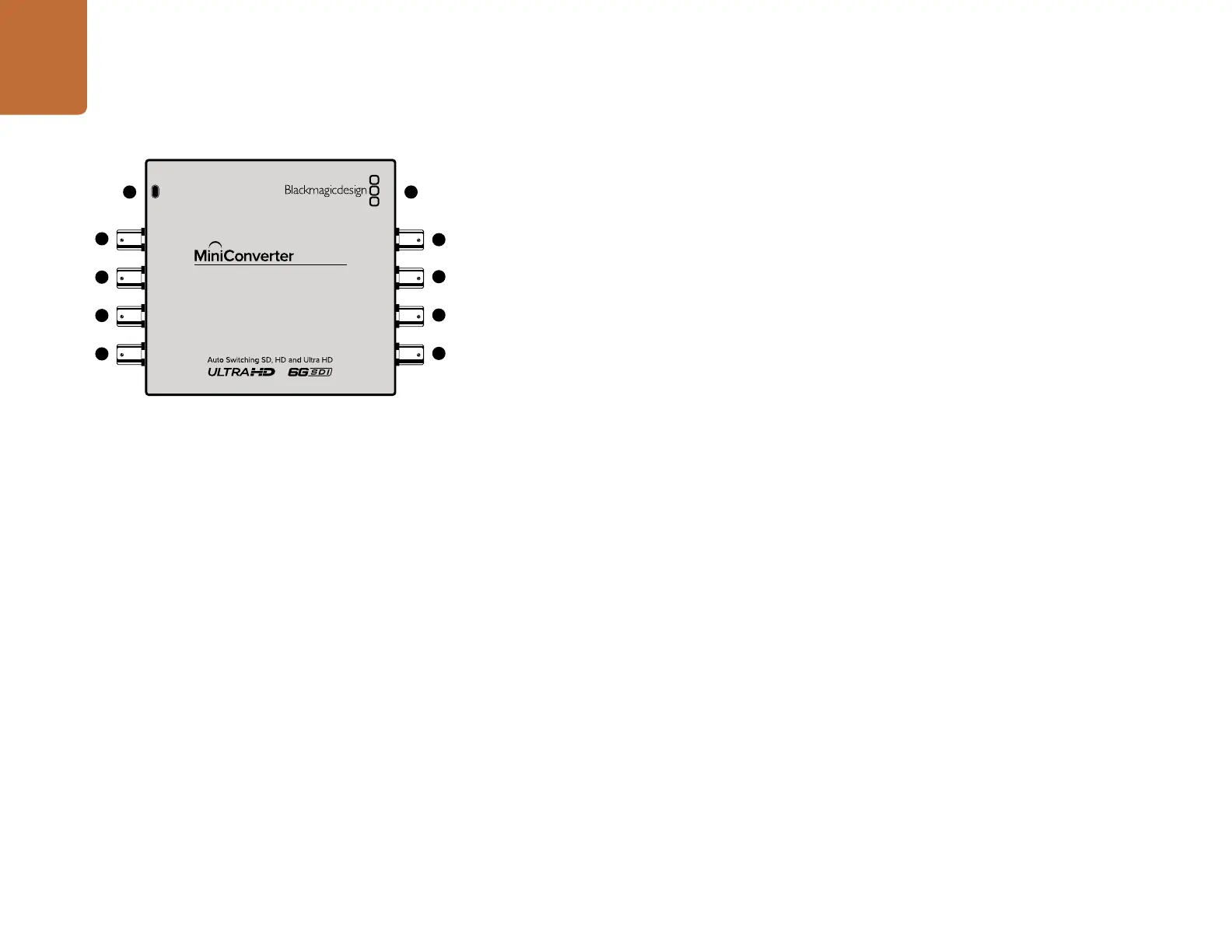

SDI IN 1
SDI IN 2
SDI IN 3
SDI IN 4
SDI OUT 1
SDI OUT 2
SDI OUT 3
SDI OUT 4
4K
SDI Multiplex 4K
1
2
3
4
5
7
8
9
6
10
