Mini Converter Quad SDI to HDMI 4K
50
SDI IN 4
SDI IN 3
SDI IN 2
SDI IN 1
Quad SDI
to HDMI 4K
HDMI OUT
SDI
Multiplex
Input automatically
detects between
SD, HD and Ultra HD
HDMI Out
USB
Equalizer,
Re-Clocker and
10 bit De-Serializer
Central
Processor and
Firmware
SDI In 4
SDI In 3
SDI In 2
SDI In 1
HDMI Video and
Audio Formatter
Customizable
Video Processor
5. MINI-B USB PORT
Connects to the Converter Utility software via your Mac OS X or Windows computer. The Mini Converter’s
internal software is also updated using the USB port.
6. HDMI
HDMI type A video output.
7. POWER +12V
12 volt power supply input.

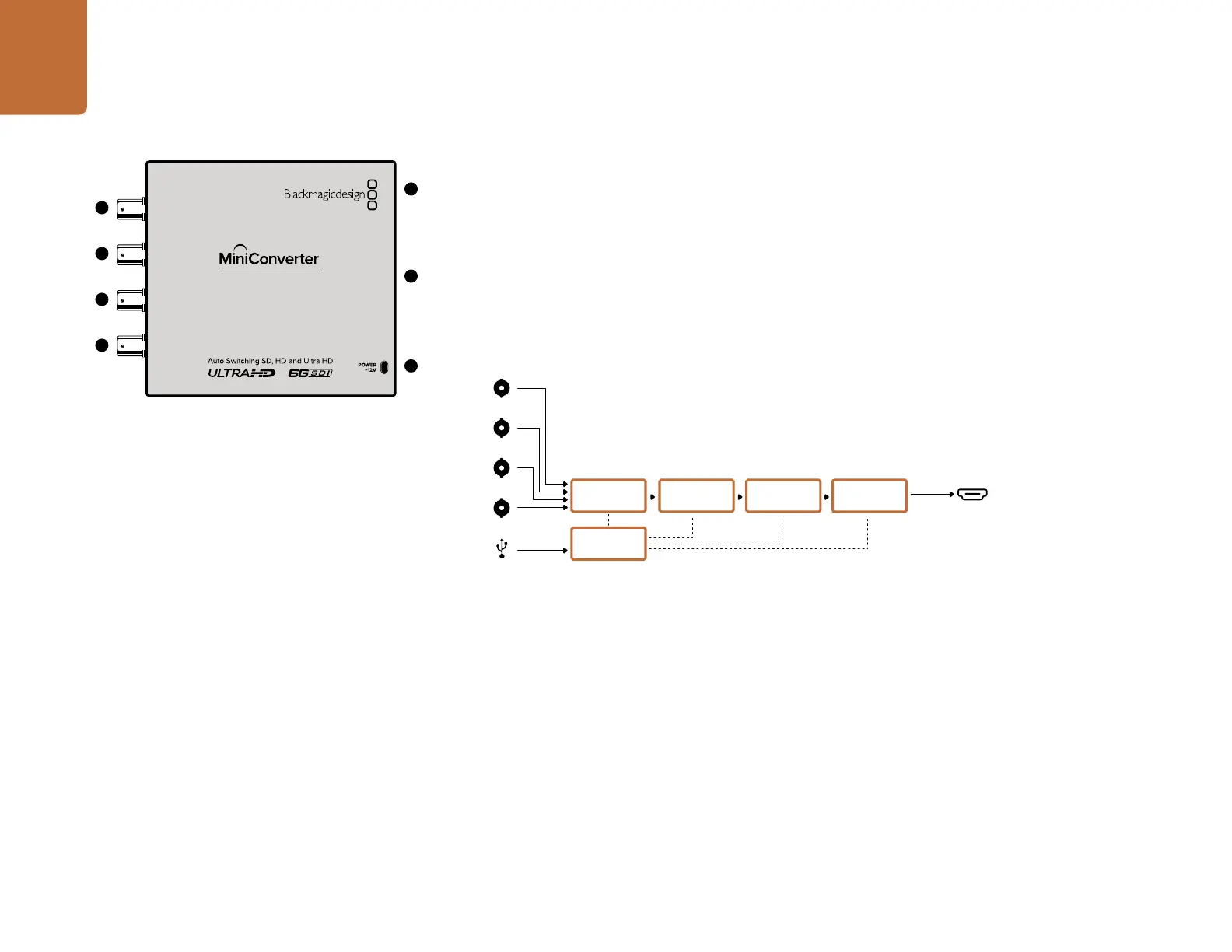

Mini Converter SDI to HDMI 4K Block Diagram
6
5
7
1
2
3
4
