Mini Converter Heavy Duty Analog to SDI
57

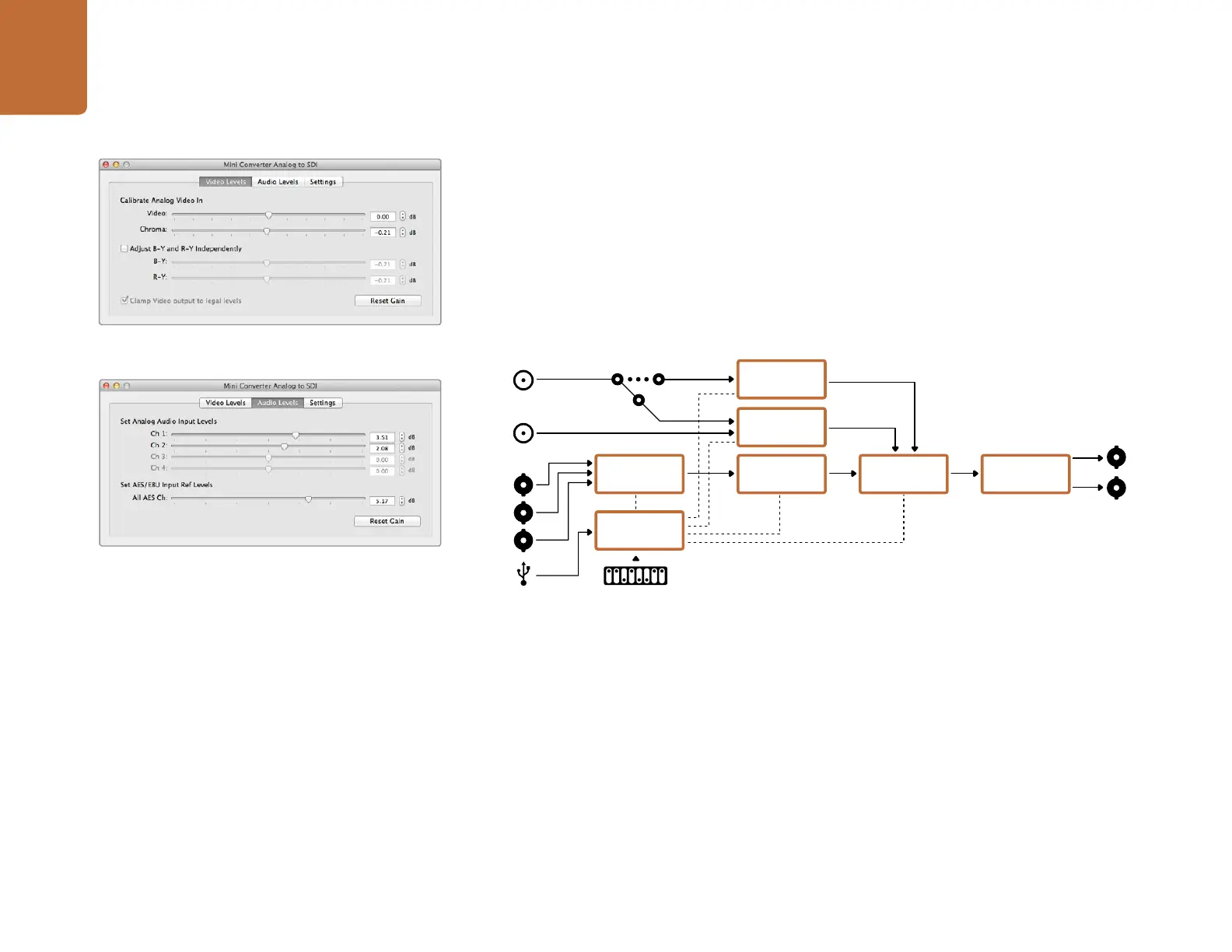

Adjust audio levels using Blackmagic Converter Utility.
Blackmagic Converter Utility Settings
The Converter Utility software complements your mini switch settings by providing supplementary
adjustment options.
The Video Levels pane lets you adjust the analog video luminance and chroma levels, and the B-Y and
R-Y component chroma levels independently.
The Audio Levels pane lets you adjust audio levels for analog channels or AES/EBU reference levels.
Mini Converter Heavy Duty Analog to SDI Block Diagram
12 bit Digital to
Analog SD/HD
Video Converter
Component input can switch to
S-Video and Composite
Mini Switches
Customizable
Video Processor
Central
Processor and
Firmware
SDI Audio
Embedder
Automatic
SD/HD/3G-SDI
Cable Driver
USB
Y
R-Y
B-Y
SDI Out
SDI Out
Analog or AES/EBU
Audio Switch
AES/EBU
Sample Rate
Converter
Audio Analog to
Digital from
Balanced Input
Right Analog In
Left Analog In
or AES/EBU
Adjust analog video levels using Blackmagic Converter Utility.
