3 Grasp the SFP module and carefully remove it from the cage.
4 Immediately place the SFP module in a static shielding bag.
5 Insert an SFP module cage cover into the optical module cage of your Teranex
whenno SFP module is installed.

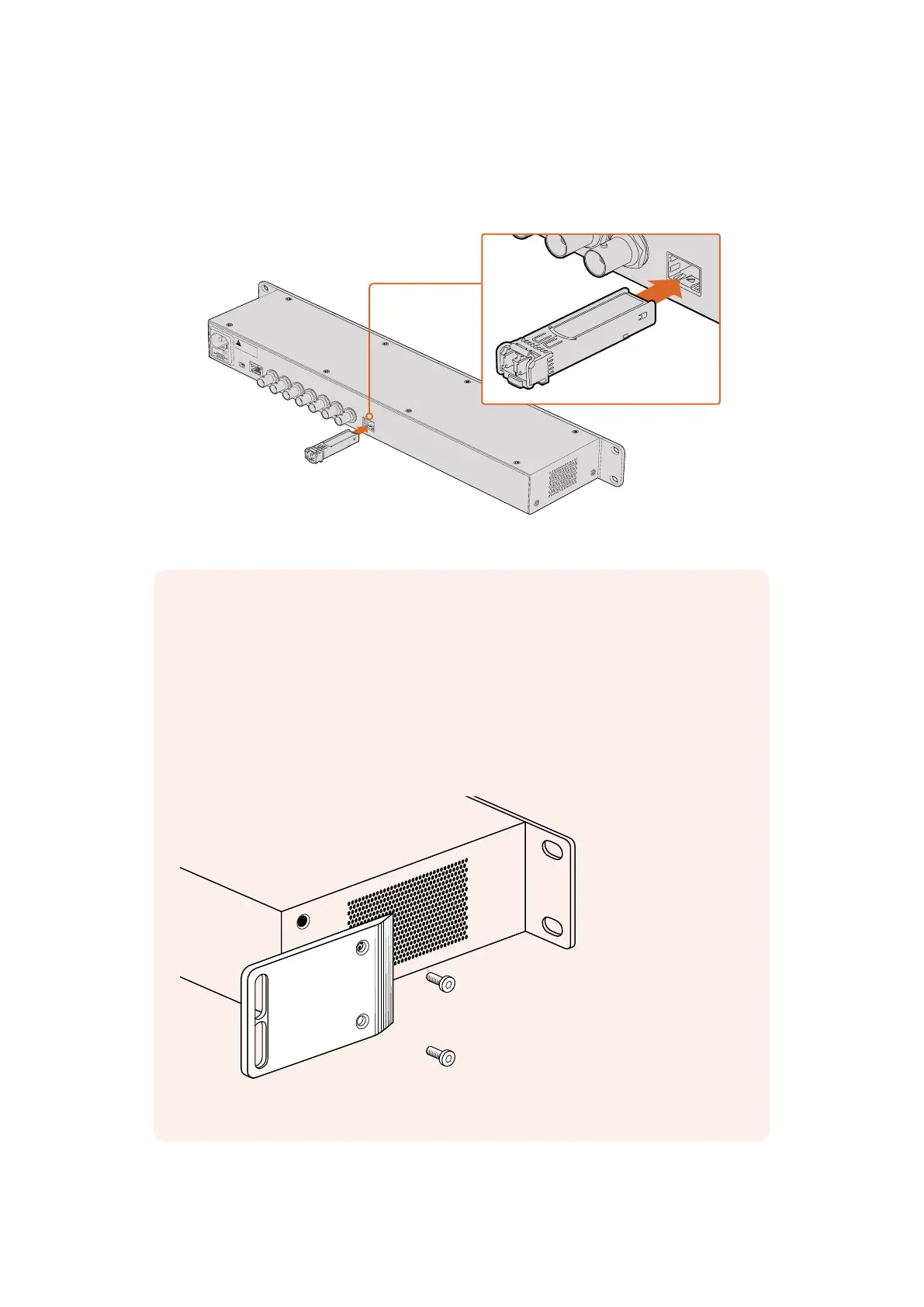

Installing the SFP Module into the Teranex Express.
OPTICAL
6G-SDI
REF IN
CAUTION!
RISK OF ELECTRIC
SHOCK - DO NOT OPEN
100-240V 1.7A 50-60Hz Fuze T5AL
USE ONLY 250V FUSES
IN A
IN B
LOOP A
LOOP B
OUT A
OUT B
OUT/IN
OPTICAL
6G-SDI
REF IN
CAUTION!
RISK OF ELECTRIC
SHOCK - DO NOT OPEN
100-240V 1.7A 50-60Hz Fuze T5AL
USE ONLY 250V FUSES
IN A
IN B
LOOP A
LOOP B
OUT A
OUT B
OUT/IN
Teranex AV Chassis Bumpers
Teranex AV is supplied with two chassis bumpers that can be attached to each side of
the chassis. These bumpers are designed to protect the connectors onthe rear panel
from potential damage when using in portable, outside broadcast, or field work. They
can also provide strain relief for cables that are connected to the unit.
The chassis bumpers should be attached to the Teranex AV using the four M4 screws
included with your unit. A pair of M4 mounting holes is provided on each side of the
Teranex AV.
Attach the supplied bumpers to each side of your Teranex AV.
100100Installing Optional Blackmagic Fiber Optic SFP
