Blackmagicdesign Teranex Series User Manual

Connectors
The types of connectors will vary depending on your Teranex processor model. Generally,
allTeranex processors can convert SDI signals. Other models can also convert HDMI and
analog video, but you will need to check your particular model to know which information in
thismanual is relevant to your Teranex.
This section shows you all the connectors that are built into each Teranex model so you
canquickly identify them.

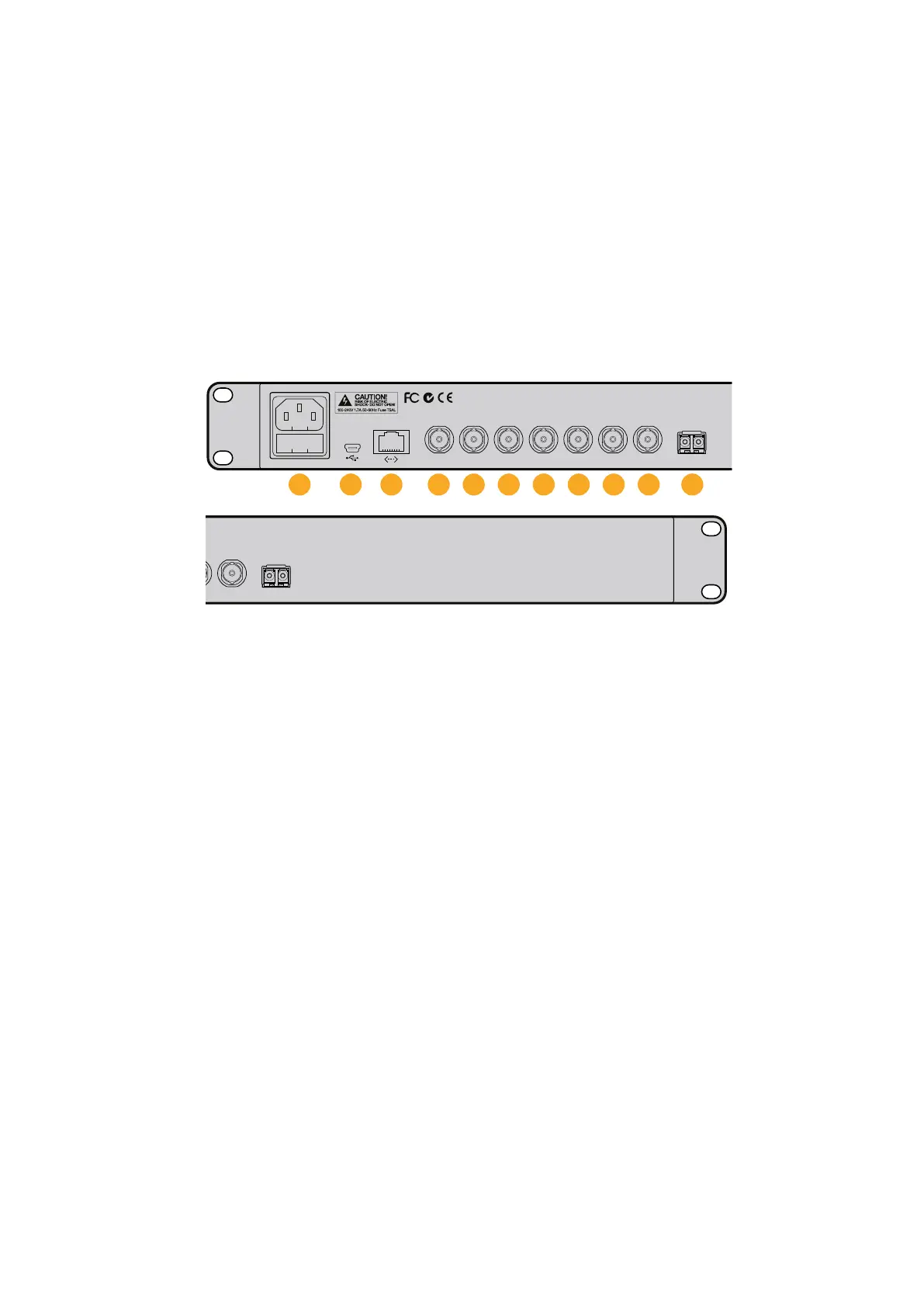

Teranex Express
1 Power
1x IEC C14 – For built-in international
90 – 240 volt AC power supply.
2 USB
1x USB Type B – Connect to
acomputer running Blackmagic
Teranex Setup software to update
theinternal software.
3 Ethernet
1x RJ-45 – Connect to a computer
running Blackmagic Teranex Setup
software to apply settings remotely.
4 REF In
1x BNC – Black burst or tri-level
reference input.
5 SDI In A
1x BNC – 12G-SDI input A.
Usable forsingle link
ordual-link≈SDI input.
6 SDI In B
1x BNC – 6G-SDI input B.
Fordual-linkinput only.
7 SDI In A Loop
1x BNC – 12G-SDI video loop output.
May also be used for one channel of
quad-3G output.
8 SDI In B Loop
1x BNC – 6G-SDI video loop output.
May also be used for one channel of
quad-3G output.
9 SDI Out A
1x BNC – 12G-SDI video output A.
May also be used for dual-link output
or for one channel of quad-3G output.
10 SDI Out B
1x BNC – 6G-SDI video output B.
Will replicate output A if output
formatis 6G-SDI or less.
May be used for dual-link output or
for one channel of quad-3G output.
11 Optical Out/In Socket
Supports SMPTE optical fiber
SFPmodules for 3G, 6G or 12G SDI
speeds to support video formats
upto Ultra HD 2160p60 depending
on the module that is installed.
12G-SDI 6G-SDI 6G-SDI 6G-SDI12G-SDI 12G-SDI
LOOP AIN BIN A
REF IN
LOOP B
OUT A OUT B
OPTICAL
OUT/IN
VIDEO AUDIO FORMAT FRAME RATE ASPECT MENU VIDEO PRESETS AUDIO STATUS
SYSTEM STATUS
IN
OUT
SDI
OPT
486
720
EMBED
2K
P
1
PSF
576
1080
ULTRA
HD
23.98
25
29.97
30
24
50
59.94
60
ANAM 14:9
LBOX
PBOX
CCUT
ZOOM
SMART ADJ
HOME
MENU
1
MENU
2
GAIN
SAT
R-Y
B-Y
REM
LOCK
BLK
HUE
SHARP
1
3
5
2
4
6
PANEL
LOCK
1 2 3 5 7 84 6 9 10 11
12G-SDI 6G-SDI 6G-SDI
6G-SDI
12G-SDI 12G-SDI
LOOP AIN BIN A
REF IN
LOOP B
OUT A
OUT B
OPTICAL
OUT/IN
VIDEO AUDIO FORMAT FRAME RATE ASPECT MENU VIDEO PRESETS AUDIO STATUS
SYSTEM STATUS
IN
OUT
SDI
OPT
486
720
EMBED
2K
P
1
PSF
576
1080
ULTRA
HD
23.98
25
29.97
30
24
50
59.94
60
ANAM 14:9
LBOX
PBOX
CCUT
ZOOM
SMART ADJ
HOME
MENU
1
MENU
2
GAIN
SAT
R-Y
B-Y
REM
LOCK
BLK
HUE
SHARP
1
3
5
2
4
6
PANEL
LOCK
99Connectors

Blackmagicdesign Teranex Series Specifications

General

Frame Rate Conversion	Yes
Up Conversion	Yes
Down Conversion	Yes
Cross Conversion	Yes
De-interlacing	Yes
Aspect Ratio Conversion	Yes
Video Inputs	SDI, HDMI
Video Outputs	SDI, HDMI
Audio Inputs	Analog Audio
Audio Outputs	Analog Audio
Reference Input	Yes
Remote Control	Ethernet
Supported Resolutions	SD, HD
Processing Features	Noise Reduction, Detail Enhancement
Form Factor	Rackmountable
