Blackmagicdesign Teranex Series User Manual

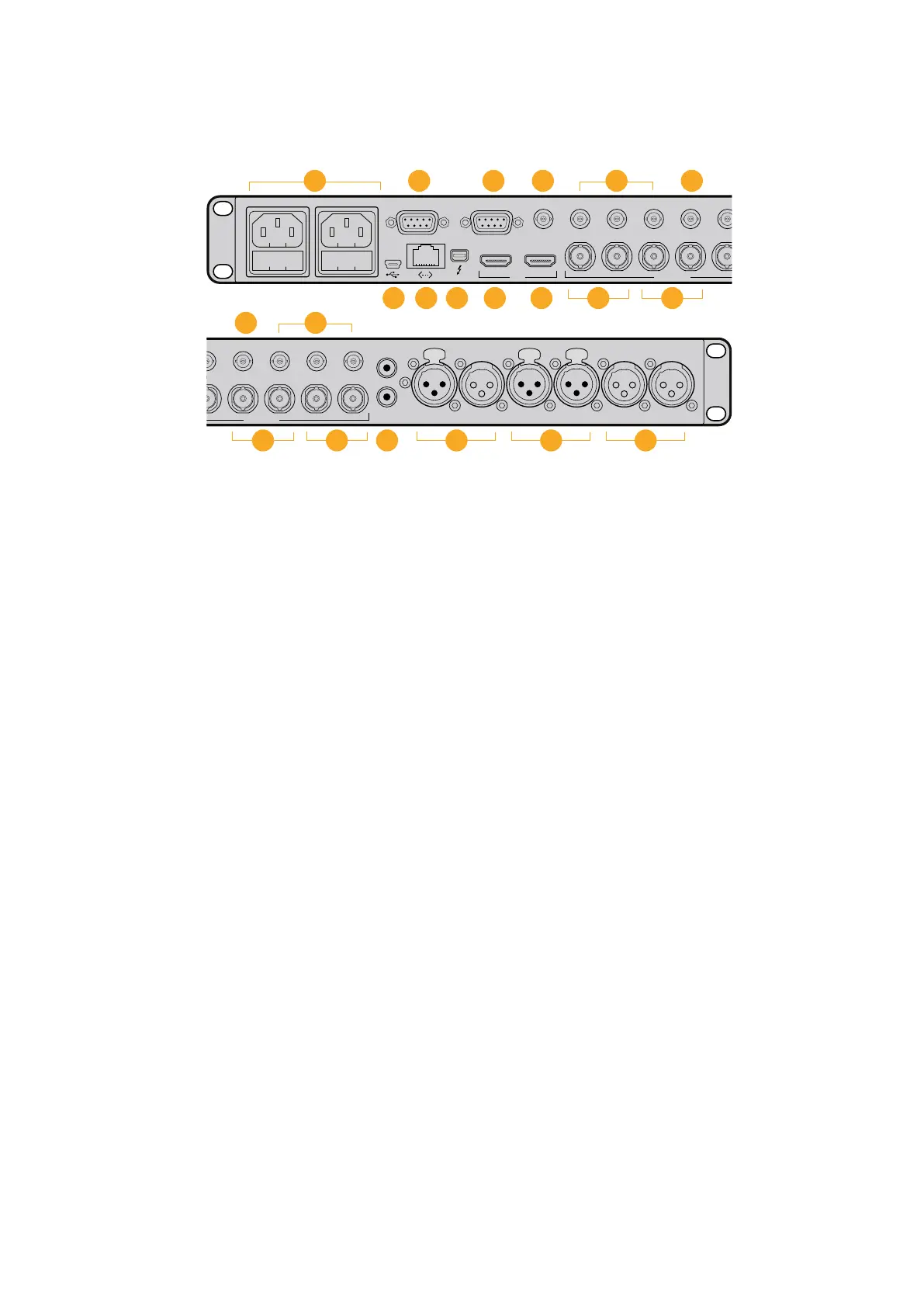

Teranex 3D
1 Power
2x IEC C14 – For built-in
international90 – 240 volt AC power
supplies forfailover redundancy.
2 USB
1x USB Type B – Connect to a
computer running Blackmagic
Teranex Setup software to
updatetheinternal software.
3 Ethernet
1x RJ-45 – Connect to a computer
running Blackmagic Teranex Setup
software to apply settings remotely.
4 Thunderbolt
1x Thunderbolt – Capture/playback
computer interface.
5 HDMI In
1x HDMI type A – HDMI input.
6 HDMI Out
1x HDMI type A – HDMI output.
7 SDI Inputs A and B
1x BNC – 3G-SDI input A
Usable for single link, encoded
3Dinput, dual link HD-SDIor
dualstream 3D left eye input.
1x BNC – 3G-SDI input B
Usable for dual link HD-SDI or
dualstream 3Dright eye input.
8 SDI Input A and B Loop
1x BNC – SDI input A active
loop through.
1x BNC – SDI input B active
loop through.
9 SDI Outputs A and B
1x BNC – 3G-SDI output A. Singlelink
output. Usable for dual linkHD SDI or
dual stream 3D left eye output.
1x BNC – 3G-SDI output B.
Replicated Single link output.
Usable for dual link HD SDI or dual
stream 3D right eye output.
10 Analog Inputs, Left and Right
2x RCA Phono – Stereo audio Inputs,
left and right, unbalanced, line level.
11 LTC Timecode In/Out
1x XLR – Timecode Input.
1x XLR – Timecode Output.
12 Analog/AES-EBU Audio In
2x XLR – Two channels of balanced
analog audio in or two pairs of
AESdigital audio in, user selectable.
13 Analog/AES-EBU Audio Out
2x XLR – Two channels of balanced
analog audio out or two pairs of
AESdigital audio out, user selectable.
14 Dolby Metadata
1x DB9 – Dolby metadata
supportusing RS-485.
15 Remote In/Out
1x DB9 – Sony™ compatible
RS-422deck control port.
16 REF In
1x BNC – Black burst or
tri-levelreference input.
18
IN
OUT
SDI
VIDEO
VIDEO
HDMI
ANLG
AUDIO
AUDIO
EMBED
AES
ANLG
FORMAT
FORMAT
486
720
2K
1080
576
1080
FRAME
FRAME
P
I
PSF
MENU
MENU
HOME
MENU
1
MENU
2
REM
LOCK
PANEL
LOCK
RATE
RATE
23.98
25
29.97
30
24
50
59.94
60
VIDEO
VIDEO
GAIN
SAT
R-Y
B-Y
BLK
HUE
SHARP
PRESETS AUDIO STATUS
SYSTEM STATUS
PRESETS
1
3
5
2
4
6
ANAM
LBOX
PBOX
ASPECT
ASPECT
SMART
14:9
CCUT
ZOOM
ADJ
PUSH
LOOP AIN BIN A
REF INDOLBY METADATA REMOTE IN/OUT Y/NTSC/PAL IN B-Y IN R-Y IN Y/NTSC/PAL OUT
B-Y OUT
SD/HD/3G-SDIHDMI
R-Y OUT STEREO IN TIMECODE IN TIMECODE OUT AUDIO IN 1 AUDIO IN 2 AUDIO OUT 1 AUDIO OUT 2
IN OUT
LOOP B
OUT A OUT B
L
R
PUSH PUSH
1
2 3 54 6
14 15 16
17
7 8
IN
OUT
SDI
VIDEO
VIDEO
HDMI
ANLG
AUDIO
AUDIO
EMBED
AES
ANLG
FORMAT
FORMAT
486
720
2K
1080
576
1080
FRAME
FRAME
P
I
PSF
MENU
MENU
HOME
MENU
1
MENU
2
REM
LOCK
PANEL
LOCK
RATE
RATE
23.98
25
29.97
30
24
50
59.94
60
VIDEO
VIDEO
GAIN
SAT
R-Y
B-Y
BLK
HUE
SHARP
PRESETS AUDIO STATUS
SYSTEM STATUS
PRESETS
1
3
5
2
4
6
ANAM
LBOX
PBOX
ASPECT
ASPECT
SMART
14:9
CCUT
ZOOM
ADJ
PUSH
LOOP A
IN BIN A
REF INDOLBY METADATA REMOTE IN/OUT Y/NTSC/PAL IN B-Y IN
R-Y IN Y/NTSC/PAL OUT B-Y OUT
SD/HD/3G-SDI
HDMI
R-Y OUT STEREO IN TIMECODE IN TIMECODE OUT AUDIO IN 1 AUDIO IN 2 AUDIO OUT 1 AUDIO OUT 2
IN OUT
LOOP B
OUT A OUT B
L
R
PUSH PUSH
10
17
8 11 12 139
18
1212Connectors

Blackmagicdesign Teranex Series Specifications

General

Frame Rate Conversion	Yes
Up Conversion	Yes
Down Conversion	Yes
Cross Conversion	Yes
De-interlacing	Yes
Aspect Ratio Conversion	Yes
Video Inputs	SDI, HDMI
Video Outputs	SDI, HDMI
Audio Inputs	Analog Audio
Audio Outputs	Analog Audio
Reference Input	Yes
Remote Control	Ethernet
Supported Resolutions	SD, HD
Processing Features	Noise Reduction, Detail Enhancement
Form Factor	Rackmountable
