Exploded View Parts Listings
# Item Description
1 EFLH1150 ......Flybar Paddle
2 EFLH1165 ......Flybar Weight 1.6 x 6 x 5mm
3 EFLH1148 ...... Flybar Retaining Collar
3 x 7 x 5mm
4 EFLH1149 ......Flybar 1.5 x 200mm
5 EFLH1148 ......Paddle Control Frame
6 EFLH1146 ......Rotor Head Frame B
7 EFLH1512 ......Center Hub Cap
8 EFLH1146 ......Rotor Head Frame A
9 EFLH1146 ......Rotor Head
10 EFLH1512 ......Center Hub
11 EFLH1513 ......O-Ring 2 x 6mm
12 EFLH1151 ......Pitch Control Link
13 EFLH1151 ......Pitch Control Rod 1.4 x 10mm
14 EFLH1523 ......Spindle
15 EFLH1163 ......Paddle Control Frame Pushrod
16 EFLH1512 ...... Socket Head Cap Screw 2 x 9mm
17 EFLH1513 ......Shim 3.1 x 5.6 x 0.1mm
17 EFLH1172 ......Shim 3.1 x 5.6 x 0.1mm
18 EFLH1171 ......Step Washer 3.1 x 5.5 x 0.5mm
19 EFLH1150 ......Pan Head Screw 2 x 6mm
20 EFLH1514 ......Setscrew 3 x 3mm
21 EFLH1514 ......Nut 2mm
22 EFLH1514 ......Pan Head Screw 2.6 x 6mm
23 EFLH1115 ......Bearing 3x 6 x 2.5mm
24 EFLH1514 ......Pan Head Screw 1.4 x 3mm
25 EFLH1171 ......Brass Spacer 3.1 x 4 x 3.1mm
26 EFLH1172 ......Bell Mixer Arm Pushrod
27 EFLH1171 ......Blade Grip
28 EFLH1514 ...... Socket Head Cap Screw 2 x 12mm
29 EFLH1518 ......Blades
30 EFLH1514 ......Flat Washer 2.2 x 5 x 0.5mm
31 EFLH1514 ...... Socket Head Cap Screw 2 x 6mm
32 EFLH1172 ......Bell Mixer Arm
33 EFLH1172 ...... B/M Arm Bushing 2.9 x 3.4 x 7mm
34 EFLH1514 ...... Washer- Special 1.8 x 5.2 x 0.1mm
35 EFLH1514 ......Pan Head Screw 1.7 x 4mm
36 EFLH1511 ......Swashplate
37 EFLH1508 ......Main Shaft 4 x 79mm
38 EFLH1510 ......Main Shaft Collar
39 EFLH1515 ......Servo Pushrod 1.6 x 16mm
40 EFLH1515 ......Servo Pushrod Link
41 EFLH1515 ......Servo Pushrod 1.6 x 28mm
42 EFLH1215 ......Main Shaft Brg 4 x 8 x 3mm
43 EFLH1509 ......Main Gear 140T
44 EFLH1501 ......Right Frame
45 EFLH1501 ......Left Frame
46 EFLH1514 ......Pan Head Screw 1.7 x 6mm
47 EFLH1514 ......Socket Head Cap Screw 2 x 10mm
48 EFLH1524 ......Anti-Rotation Bracket
49 EFLH1522 ......Canopy Mount Rod 2 x 30mm
50 EFLH1522 ......Canopy Mount Ends
51 EFLH1502 ......Landing Gear Asm
52 EFLH1514 ......Pan Head Screws 1.6 x 6mm
# Item Description
53 EFLH1409 ......Pinion 9T
54 EFLH1514 ......Pan Head Screw 3 x 6mm
55 EFLH1517 ......Motor Mount
56 EFLH1516 ......Brushless Motor
57 EFLH1514 ......Pan Head Screw 2 x 6mm
58 EFLH1503 ......Tail Boom Blue 7x 8 x 271mm
59 EFLH1507 ......Tail Motor Wire Lead
60 EFLH1506 ......Lower Horz. Fin Mount
61 EFLH1506 ......Upper Horz. Fin Mount
62 EFLH1326W .....Horizontal Fin
63 EFLH1326W .....Vert Fin
64 EFLH1505 ......Tail Motor Mount
65 EFLH1514 ......Flat Washer 2 x 4 x 0.4mm
66 EFLH1514 ......Pan Head Screw 1.6 x 3mm
67 EFLH1323 ......Tail Rotor Adapter
68 EFLH1324 ......Tail Rotor Blade
69 EFLH1514 ......Flat Washer-Special 2 x 8 x 1.2mm
70 EFLH1322 ......Tail Motor
71 EFLH1319 ......Tail Motor Heat Sink
72 EFLDS75H ......Servos
73 EFLH1515 ......Control Ball
74 EFLH1514 ......Flat Head CS Screw
75 EFLH1514 ......Nylock Nut 2mm
76 EFLRG110HL ....Gyro
77 EFLA308H ......ESC
78 EFLH1514 ......Hook & Loop Strap
79 EFLH0997 ......1000mAh 3-Cell Li-Po Battery
80 EFLH1520 ......Canopy
81 SPMAR6110E . . . Receiver
82 EFLH1519 ......Blade Holder
83 EFLH1522 ......Canopy Grommet

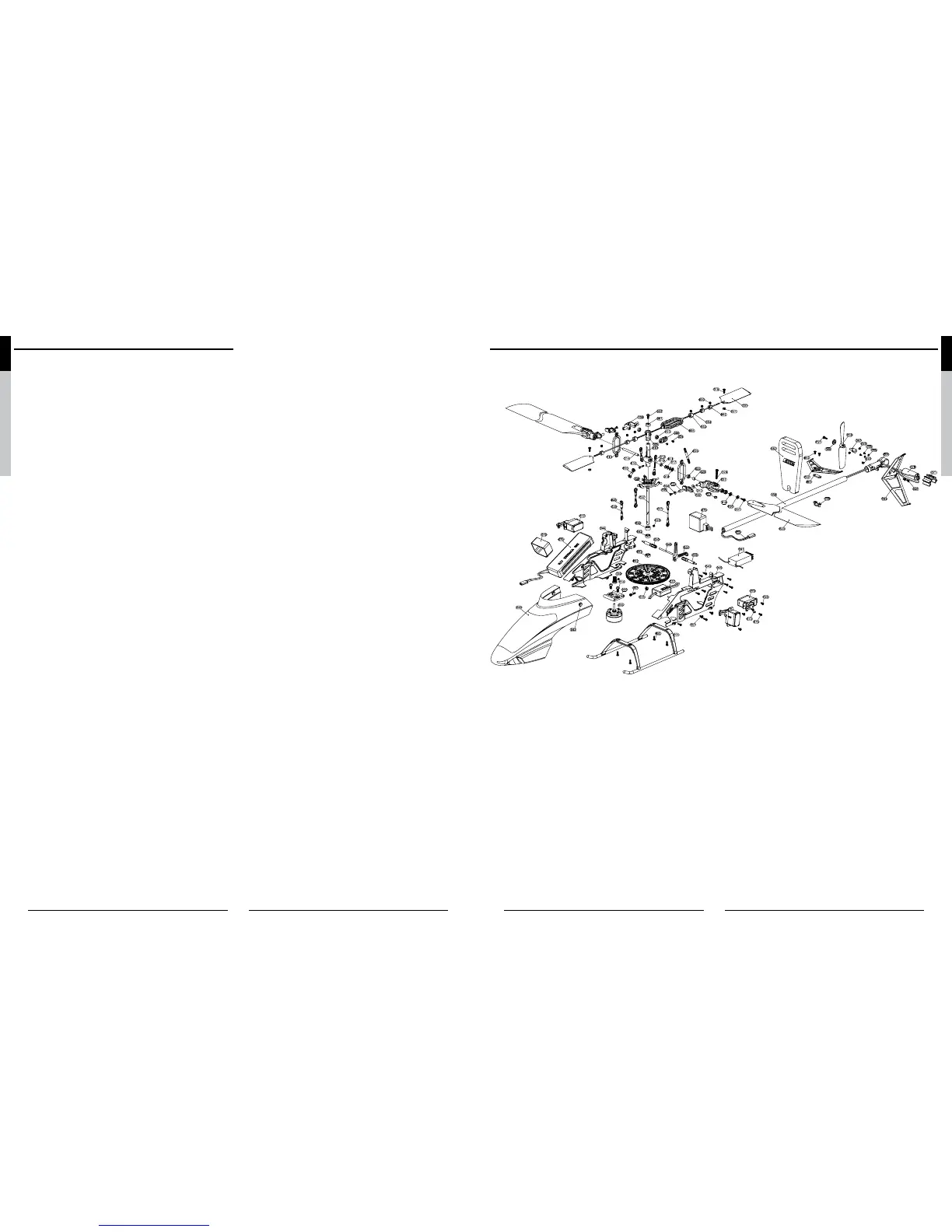

Exploded View
