30
5.2.3 Plug in Charging Connector
•

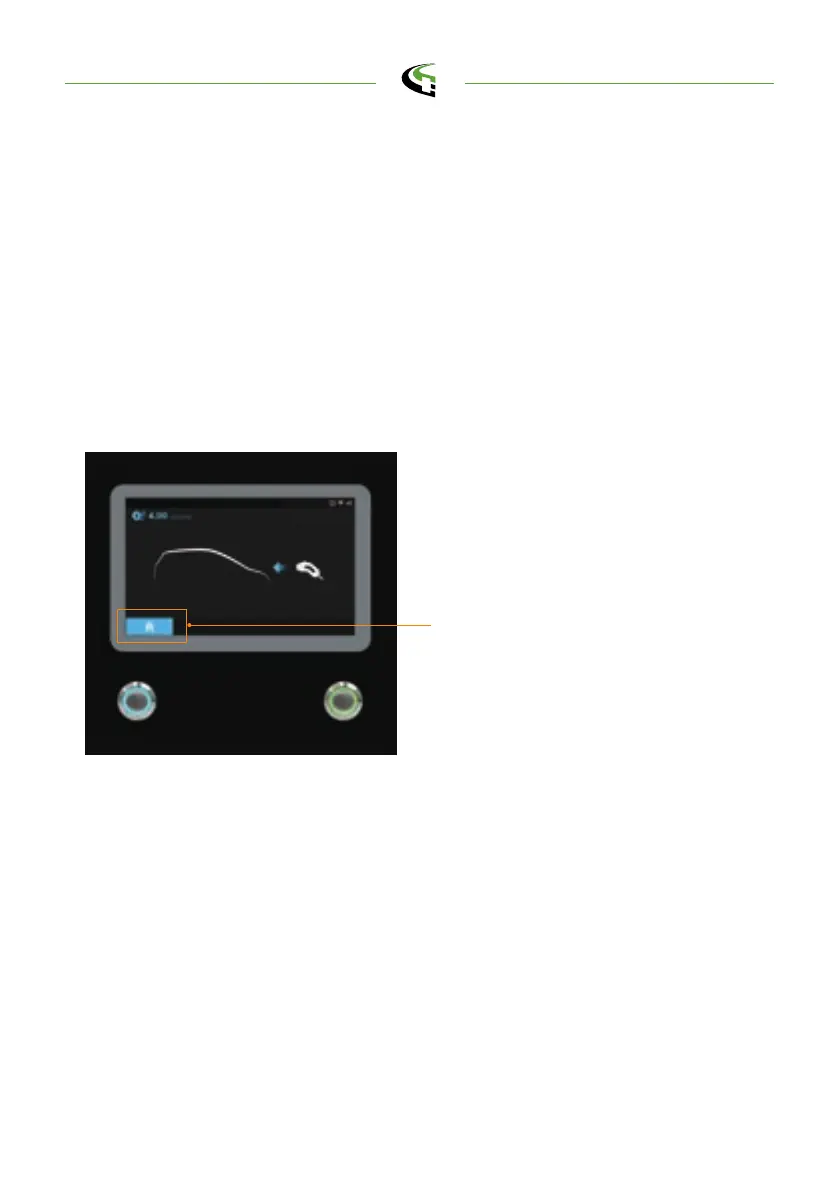

After authorization the screen will ask the user to plug the charging connector
into the EV charging inlet as below illustrated.
•
Take the Charging connector from the charging cable holder and plug the con -
nector into EV charging inlet. The charger will automatically detect the type of
the charging connector.
•
It will normally take less than 10 seconds to start the process after completing
the physical connection of charging connector to charging inlet. To terminate
this session, please press the left button to return to the Home page
The screen will return to home page
and terminate this session if the left
button is pressed
5.2.4 Prepare for Charging
•
After authorization and plug-in process, the charger will start communicating
with the vehicle and the screen will show the Preparing page as below illustrated.
Plug-in page
