Control Panel Menu Structure
d13-- 000 - 512 13-channel DMX mode
d.8-- 000 - 512 8-channel DMX mode
r--- 000 - 255 Red intensity (0% <--> 100%)
g--- 000 - 255 Green intensity (0% <--> 100%)
b--- 000 - 255 Blue intensity (0% <--> 100%)
A--- 000 - 255 Amber intensity (0% <--> 100%)
P--- 000 - 255 UV intensity (0% <--> 100%)
n--- 000 - 255 White intensity (0% <--> 100%)
pr-- Color
Presets
01-25
01. Red 02. Green 03. Blue
04. Lime 05. Yellow Green 06. Yellow
07. Congo Red 08. Light Orange 09. Wine Red
10. Pink 11. Purple 12. Light Purple
13. Pink Blue 14. Light Blue 15. Sky Blue
16. Light Cyan 17. Cyan Green 18. Water Green
19. Light Green 20. Cold White 21. Light Cold White
22. Pure White 23. Purple White 24. Cream White
25. Warm White
F--- 000 - 255 Strobeeects(slow<-->fast)
C--- 000 - 255 7-color fade (slow <--> fast)
J--- 000 - 255 7-color jump (slow <--> fast)
S--- 000 - 255 Sound = increase/decrease microphone sensitivity level
IR-- on/of IRon=IRremoteison,IRof=IRremotecontroliso
dr-- dr-0 Standard dimming
dr-1 Dimming curve 1, Tup 980 ms, Tdown 1010 ms
dr-2 Dimming curve 2, Tup 1210 ms, Tdown 1320 ms
dr-3 Dimming curve 3, Tup 1600 ms, Tdown 1710 ms
dr-4 Dimming curve 4, Tup 1850 ms, Tdown 1980 ms
TL-- TL-0 Auto temperature control (reduces to 50% power at 75°C)
TL-1 Half power
TL-2 Full power

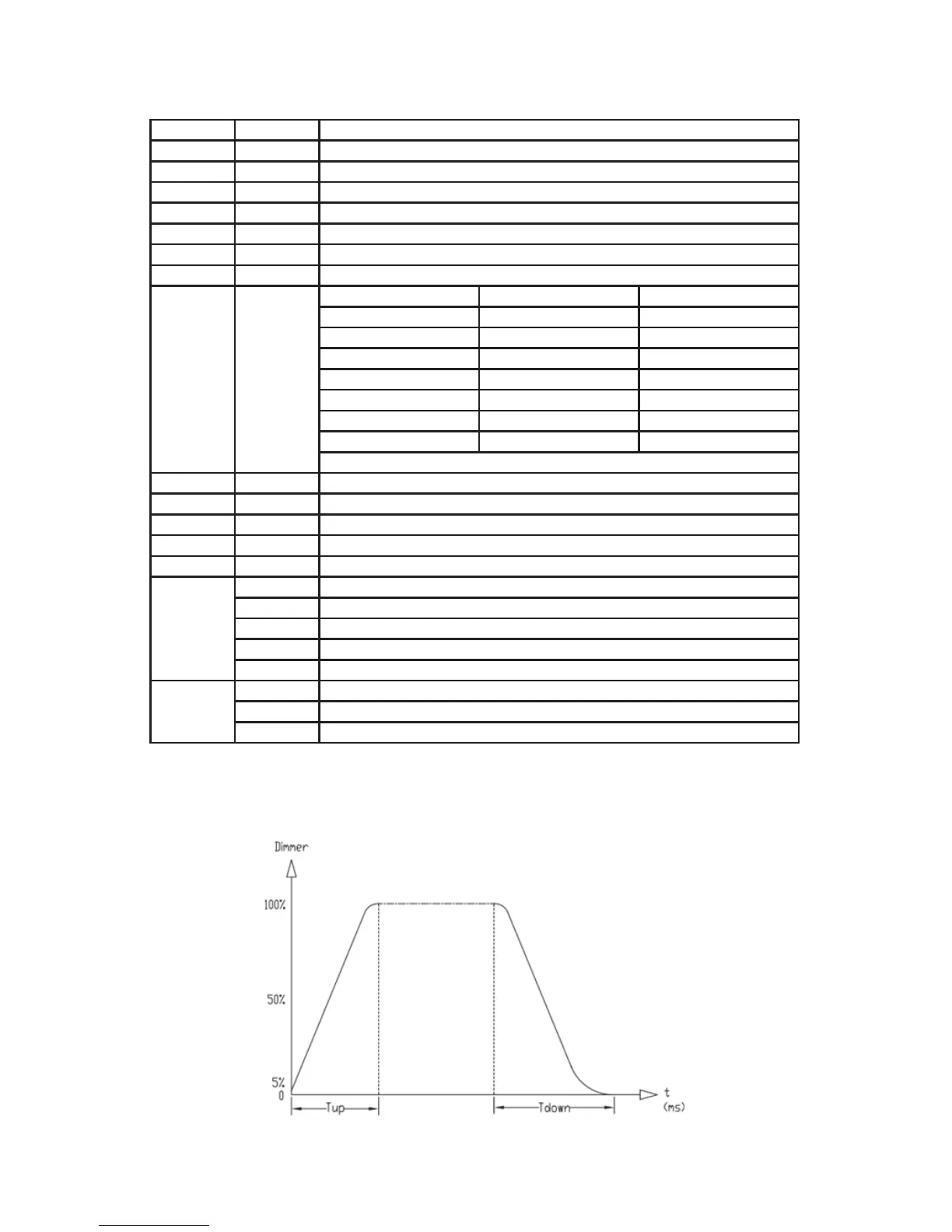

Dimming Curves
*See dimming curve
ramp up/down times in
the table above.
