Oven Components
Heating Elements --- located on the back wall of
the oven, the elements provide heat to the baking
chamber on electric ovens.
Chain & Turnbuckle --- controls operation of the
oven doors.
Control Panel --- contains wiring and components
to control the oven operation.
Oven Racks --- five racks are provided standard.
Additional racks are available.
Rack Supports --- h o l d o v e n r a c k s .
Baffle --- located on the back interior wall of the
oven. Protects the blower wheel.
Blo wer Wheel --- spins to circulate hot air in the
baking chamber.
Convection Motor --- provides power to turn the
blower wheel.
Oven Lights --- provide lighting inside the baking
compartment.
Heating
Elements
Control
Panel Cover
Control
Panel
Convection
Motor
Blower
Wheel
Blower
Wheel Cover
Rack
Support
Oven Rack
Chain &
Turnb uckle
Oven Lights

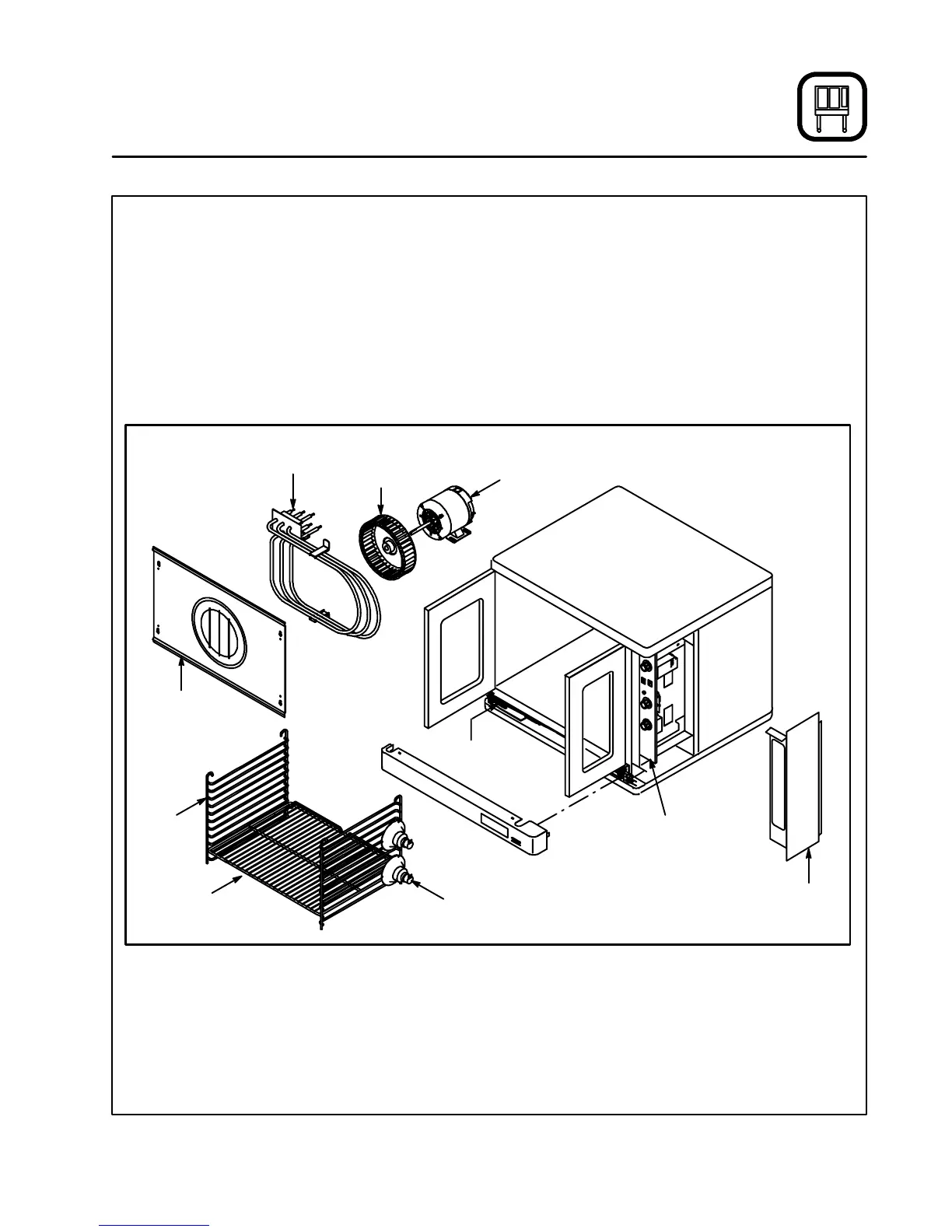

Figure 2
To Next Page
