Bluetti EP760 - Page 57

JUST POWER ON 57

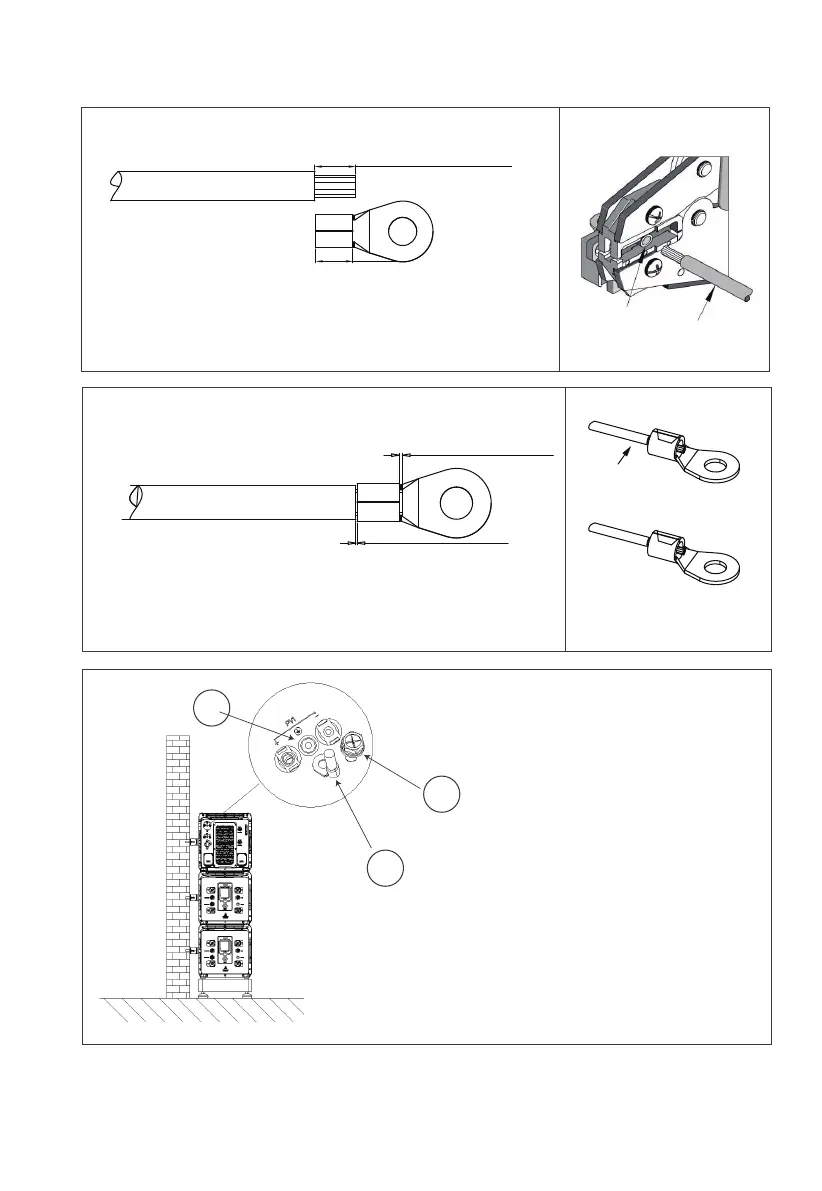

L2 is 3mm longer than L1
6-11-1
L2=L1+3mm
L1
6-11-2 6-11-3
1
2
3
1 . M5×10 screws
2. OT terminal
3. PV grounding pole
L3≥2mm
L4≥1mm
Visible wire
Qualified
Wire even or bulge
up to 1mm
Figure 6-11-3 Grounding Connection
Terminal block
Wire
