BMW Z3(E36/7) - Page 17

BM
BMW
BMWBMW
Z3
SYMBOLS
06/00
0140.0Ć
2001
03
1.5 BR
DATA LINK
0670.5
.5 WS/GE
0670.0-03
0670.0-02
1.5 BR
N9
RADIO
THE COMPLETE WIRE
PROGRESSION AND
FURTHER CIRCUITS
CONNECTED TO
GROUND X497 ARE
SHOWN IN CELL
”0670.4 GROUND
DISTRIBUTION” AT
GROUND X497
THE COMPLETE WIRE
PROGRESSION AND
FURTHER CIRCUITS
CONNECTED TO FUSE
18 ARE SHOWN IN CELL
”0670.3 FUSE DETAILS”
AT FUSE 18
CURRENT PATH IS CON-
TINUED AS LABELED
P90
FRONT POWER
DISTRIBUTION BOX
F18
15A
GROUND
DISTRIBUTION
0670.4
N1
ANTI–THEFT
CONTROL MODULE
(DWA)
FUSE DETAILS
0670.3
A1
GENERAL MODULE
X252
17
X332
2

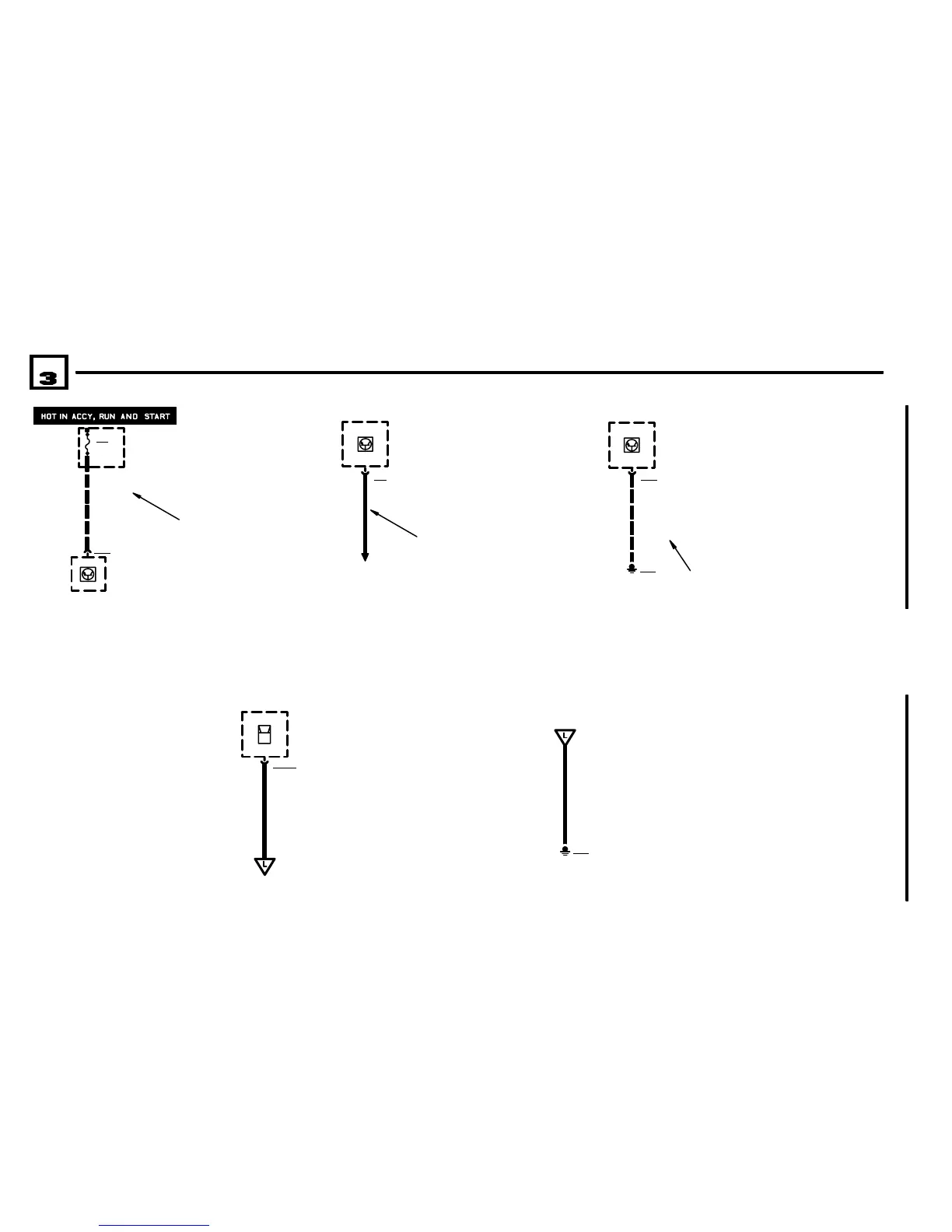

CIRCUIT REFERENCE–A
WIRE WHICH CON-
NECTS TO ANOTHER
CIRCUIT
A2
INSTRUMENT
CLUSTER
X16
11
RXD
ARROW SHOWS DIRECTION
OF CURRENT FLOW AND IS
REPEATED WHERE CURRENT
PATH CONTINUES
X497
X1812615
X491
