20

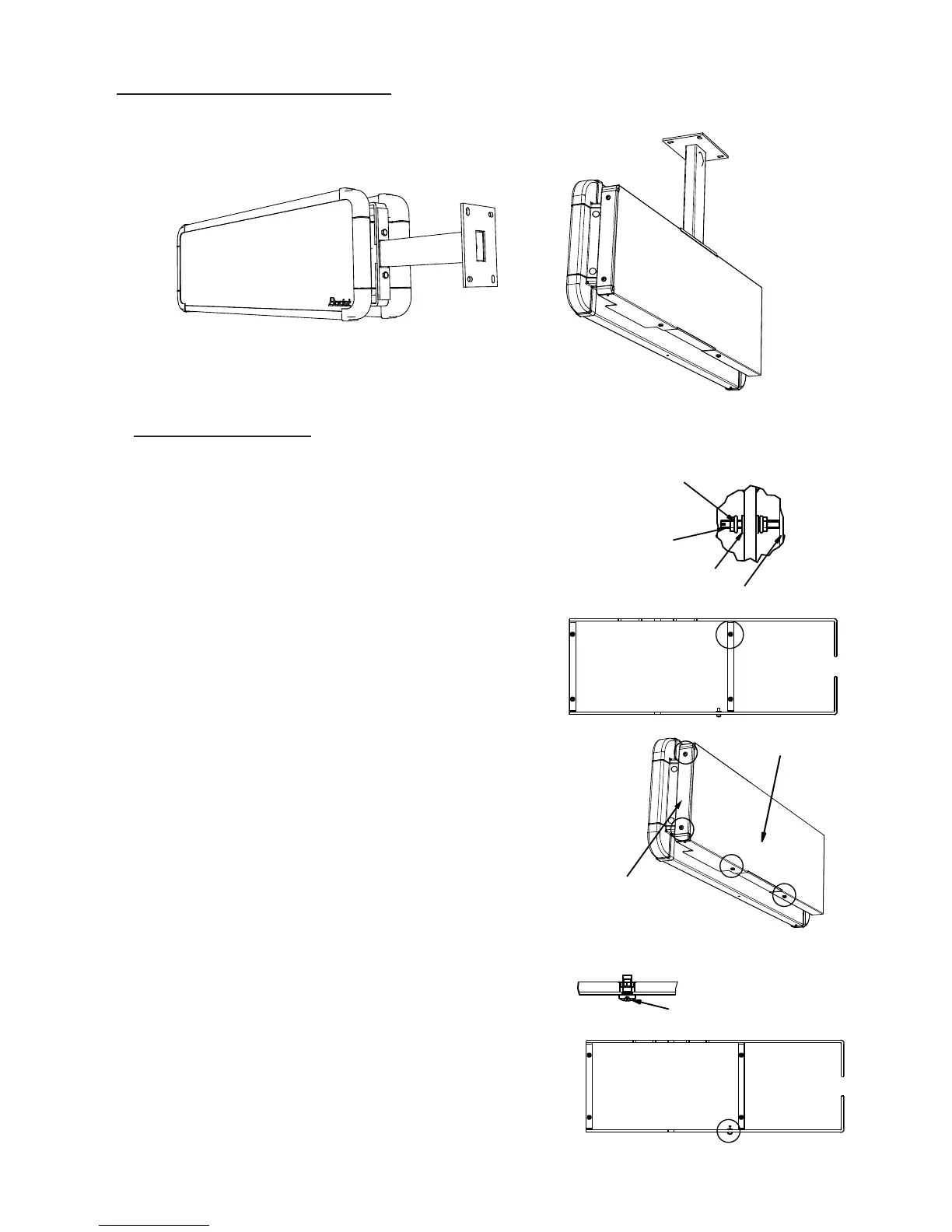

2.3 Double sided bracket mounting
The bracket can be installed vertically or horizontally and is designed for one or two clocks.
Single sided assembly
1) Place the 4 screws and washers (detail D) on the
double sided frame.
2) For single sided assembly, it is possible to install a
cover (optional) on the back of the clock by tting it on
the double sided frame. Lock it in place with the collar nut
(detail A) at the bottom of the frame.
3) Tighten the 4 screws in contact with the vert. bracket
single sided cover and then lock the 4 nuts on the double
sided frame.
4) For a vertical mounting, attach the side cover on the
side of the double sided frame with the two 5 mm screws
(detail B).
Double sided fixing with
horizontal bracket
Single sided fixing with
vertical bracket
