Bodet Style 12 User Manual

23
4) Attach the pole to the wall with four 8 mm threaded rods plus chemical sealing
(recommended).
5) Attach the double side frame to the polewith
the TWO 8 mm screws (C). Do not forget to
feed the cables through pole.
6) Open the clocks and remove the wall
mounting parts.
7) Attach the rst clock (repeater clock) to the
double sided frame on the 4 screws ST F M5-
40 (D). Place the 6 mm washers (detail D)
at on the frame (and not inside the clocks)
to move the clocks sufciently far away and
facilitate insertion of the cables. Screw in the 2
nuts at the top (D) without tightening, move the
clock away and insert the cables.
8) Attach the second clock (master clock) on
the other side of the frame with the same 4
screws ST F M5-40 (D). Screw in the 2 nuts at
the top (D) without tightening, move the clock
away and insert the cables. Refer to section III
Electrical Installation.

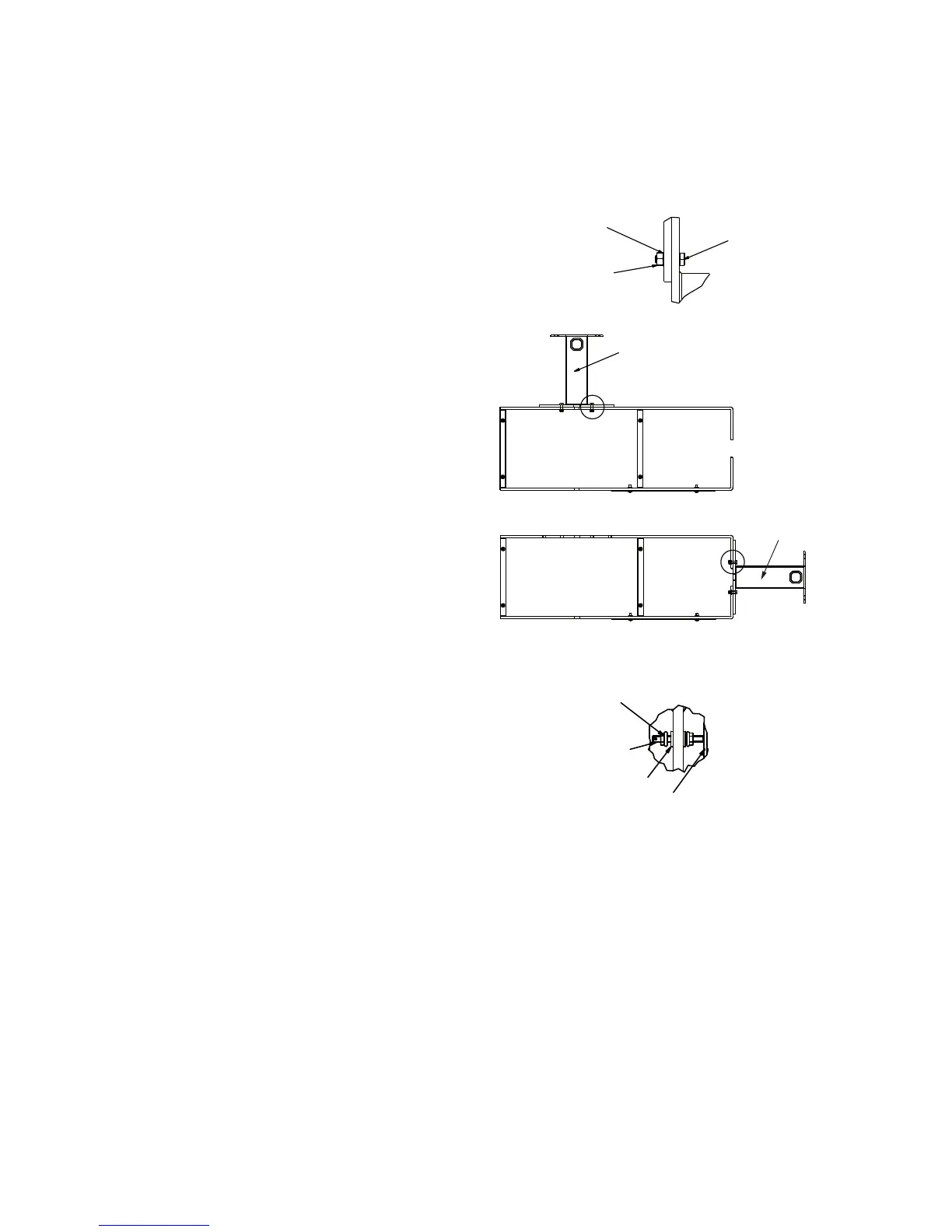

C
St. steel nut HU M8
Stainless steel 8 mm
tooth washer
St. steel screw
H M8x25
C
C
Horizontal mounting
Vertical mounting
Pole
D
St. steel screw
ST F M5-40
Cover for single sided mounting
St. steel 6 mm
flat washer
St. steel nut HM5
Pole
