29 mm cable
grommet
D
Stainless steel
screw ST F M5-40
Stainless steel 6 mm
flat washer
16 mm
Stainless steel nut HM5

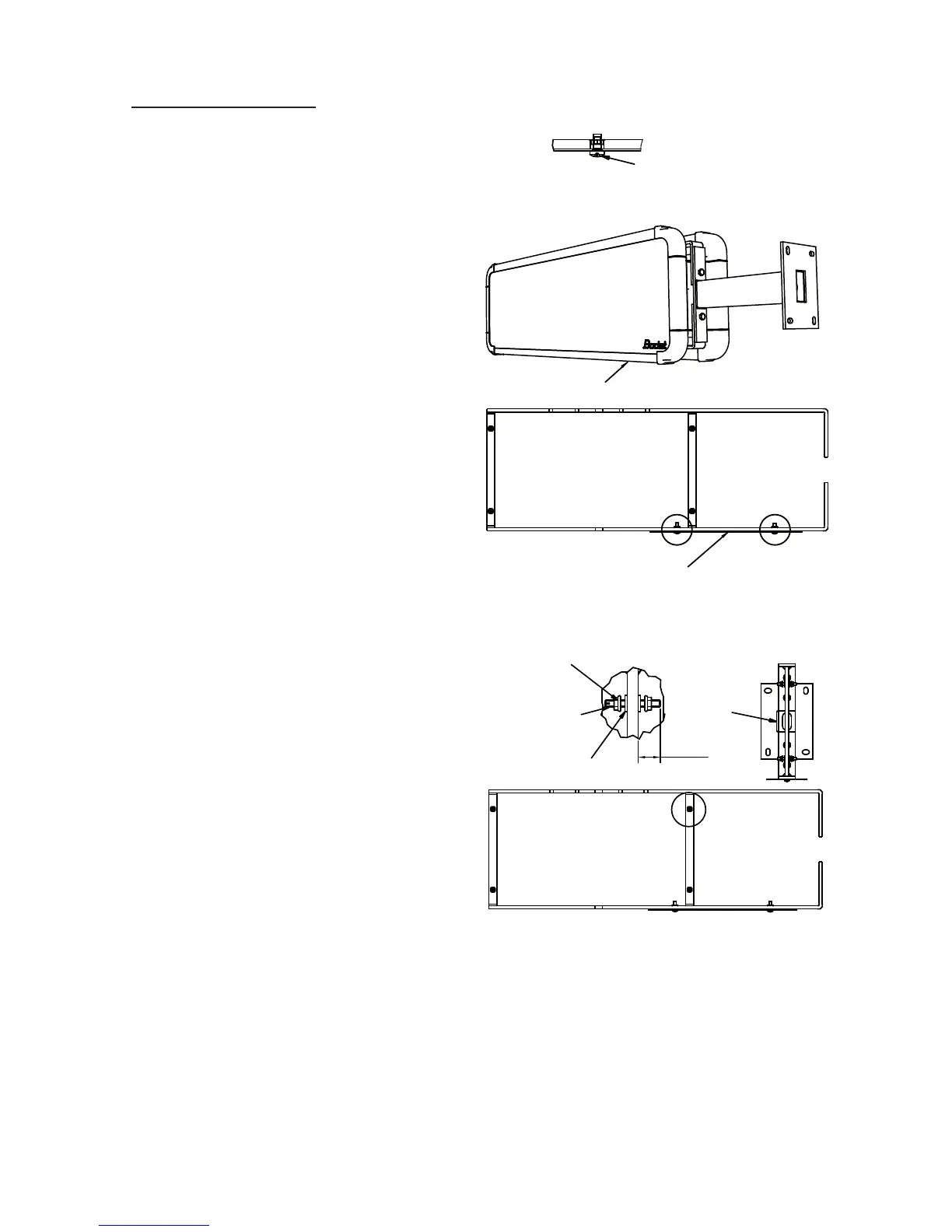

Double sided mounting
1) For double sided assembly only, t the cable
grommet cover (supplied in standard version)
under the double sided frame, attaching it with
the 2 screws at the bottom (detail A).
2) Attach the side cover on the side of the frame
(only with vertical bracket) with the two 5 mm
screws (detail B) (see single sided assembly
4/).
3) Place the 4 screws (D) at 16 mm. Do not t
the nuts and washers.
Stainless steel screw M5X16
