BodorWelder Fiber Laser User Manual-V1.1
Bodor Inc.

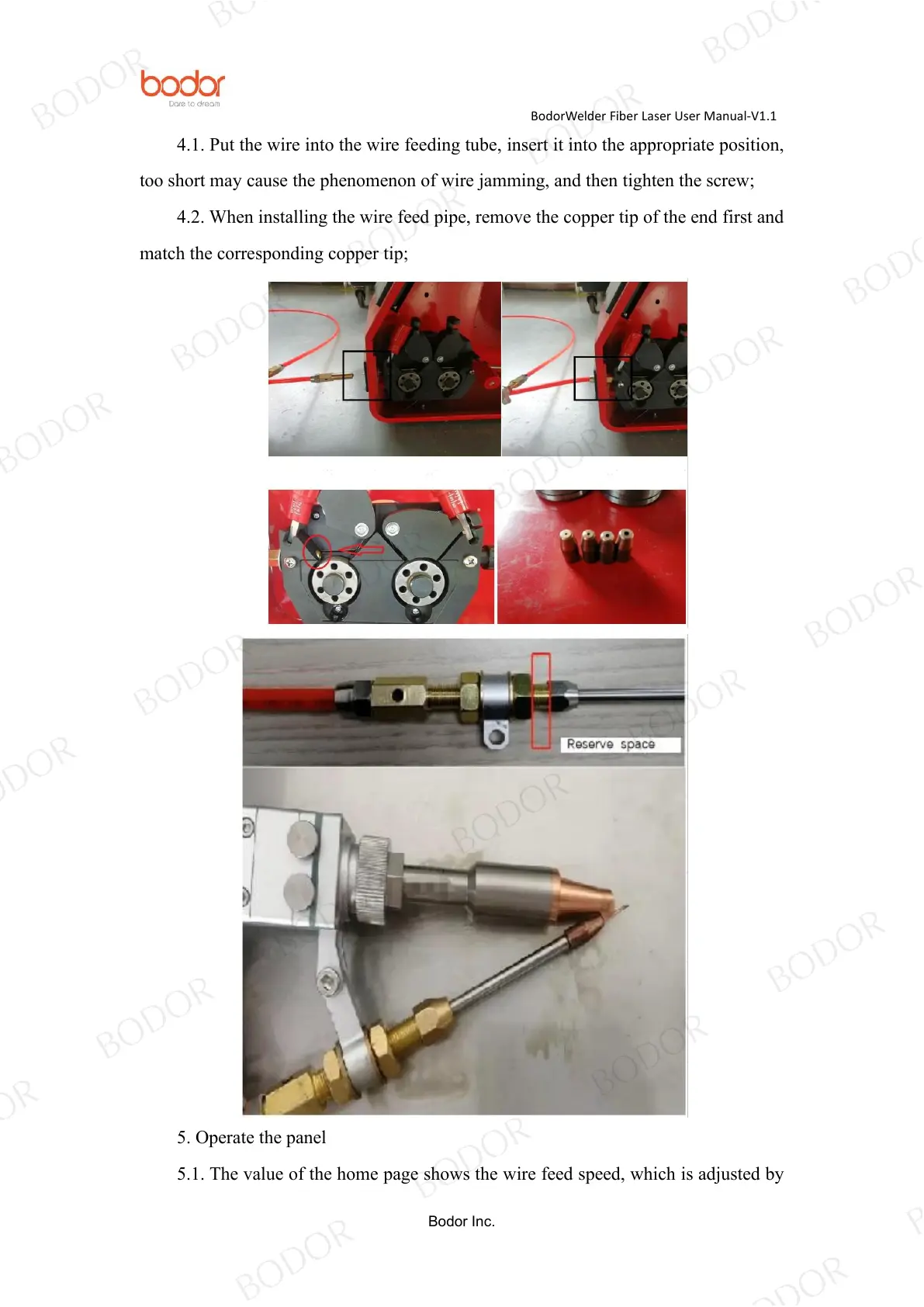

4.1. Put the wire into the wire feeding tube, insert it into the appropriate position,
too short may cause the phenomenon of wire jamming, and then tighten the screw;
4.2. When installing the wire feed pipe, remove the copper tip of the end first and
match the corresponding copper tip;
5. Operate the panel
5.1. The value of the home page shows the wire feed speed, which is adjusted by
