Boge FOCUS - Control unit

FOCUS 1.1 The BOGE control concept
Page 2 BOGE FOCUS compressor control for piston compressors
Control unit
The display unit comprises a graphic display and 3 indicator lamps (LEDs) for
an additional illustration of the operating modes.

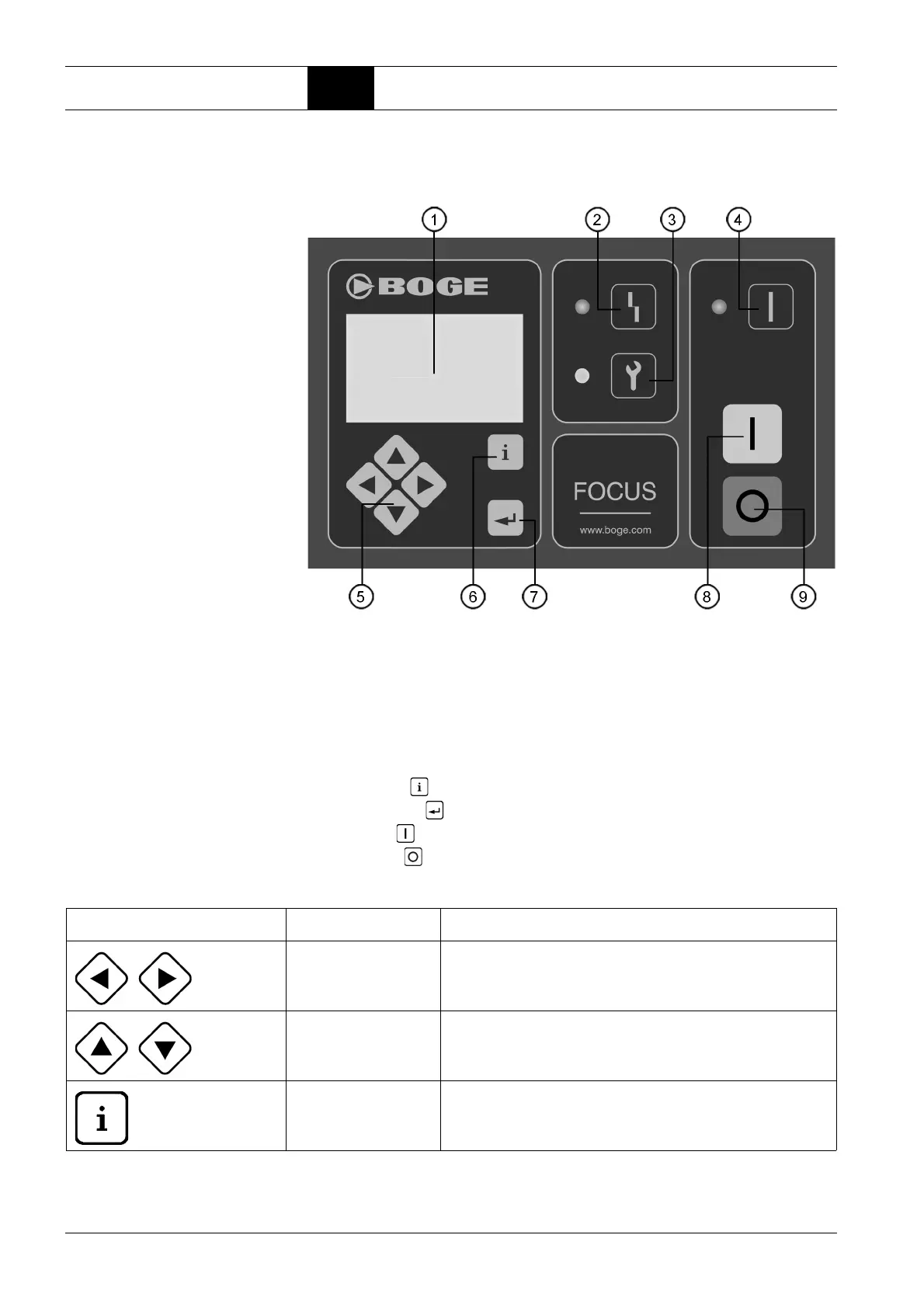

Fig. 1.1: FOCUS operating panel
1LC display
2 Indicator lamp – Fault (red)
3 Indicator lamp – Warning (yellow)
4 Indicator lamp – Ready (green)
5 Navigation keys
6 INFO key
7 ENTER key
8 ON key
9 OFF key
Operating / control element Designation Function
Navigation keys Navigation in the menu, scrolling the displays, scrolling of pages
in the parameter display.
Navigation keys Navigation in the menu, displays, dryer status, navigation in the
parameter display, setting of values.
INFO key Display of faults, warnings or maintenance messages, log book,
quitting of settings.
