3-4 Function Buttons for FUNCTION 1 and FUNCTION 2
Used to select the functions to be assigned to individual buttons F1 to F2 (front-panel buttons)
Double function for FUNCTION 1 and
FUNCTION 2 are prohibited.
!
Note :
In case input modes are DVI,PC-RGB,
YPbPr and RGB, the following functions are not
operated.
1) H/V Delay
2) GRAY(MONO)
3) MARKER
1080/60i

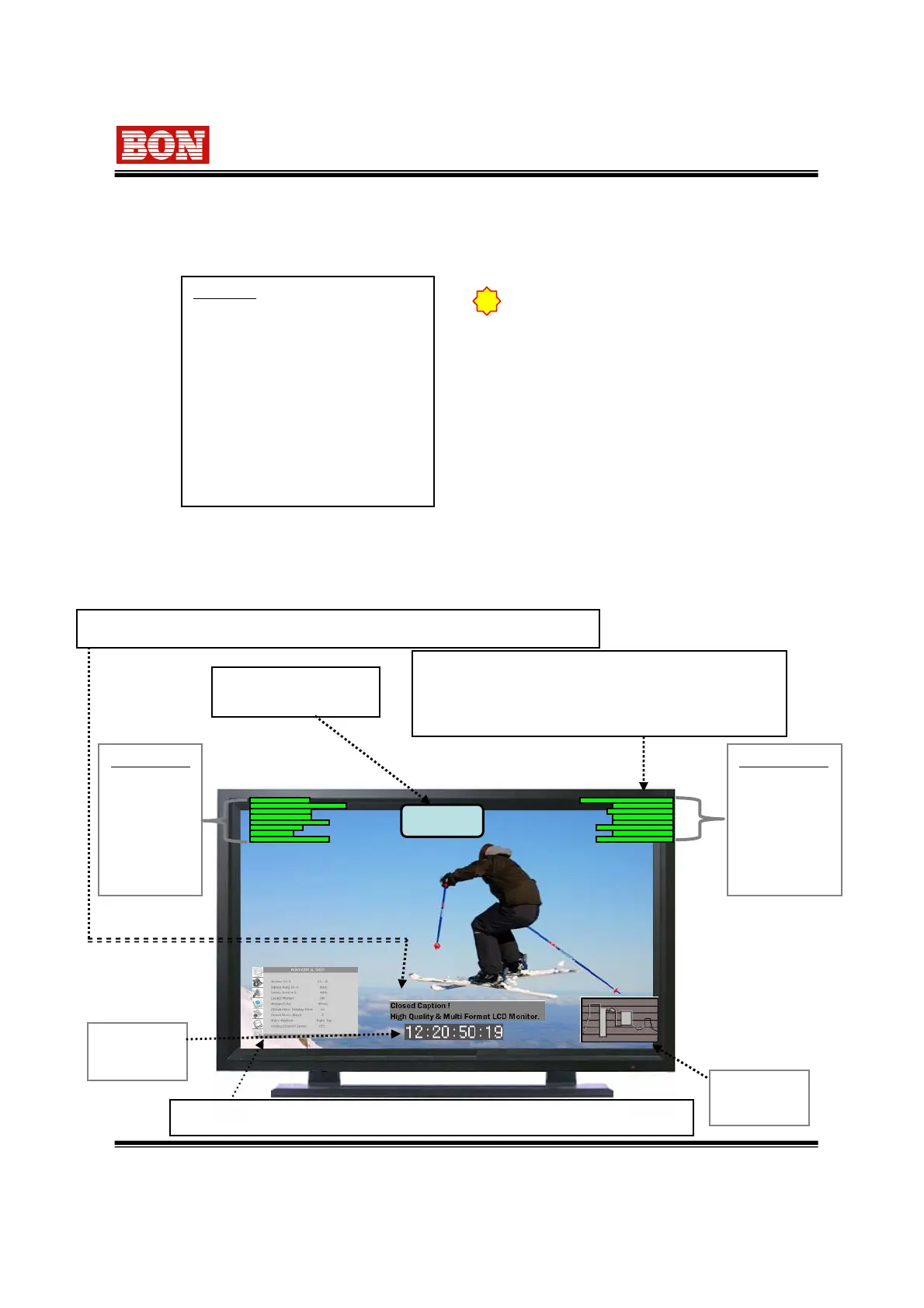

4. Display Status
The function of displaying the mode to confirm the operating status of product.
Some functions are not able to support according to option.
Display up to 16 channels ( L/R each 8channels) of
audio level by De-Embedded of HD/SD-SDI’s serial
Audio Signal.
Display signal format
selected.
Display Left
CH-1
CH-3
CH-5
CH-7
CH-9
CH-11
CH-13
CH-15
Display Right
CH-2
CH-4
CH-6
CH-8
CH-10
CH-12
CH-14
CH-16
Video
Waveform
(Option)
Time Code
Display
(Option)
Functions
1. H/V Delay (on,off)
2. BLUE/GRAY
3. Audio Display (on/off)
4. Pixel to Pixel (on,off)
5. Anamorphic (on,off)
6. PaP On/Off
7. Waveform Display
8. Time Code Display
9. SD Aspect (16:9,4:3)
10. 1 : 1 Scan
11. Audio Mute on/off
Menu Position: Left-Top, Left-Bottom, Right-Top, Right-Bottom, Center
Closed Caption Display : Standard 608(CVBS & Component: NTSC/PAL)
