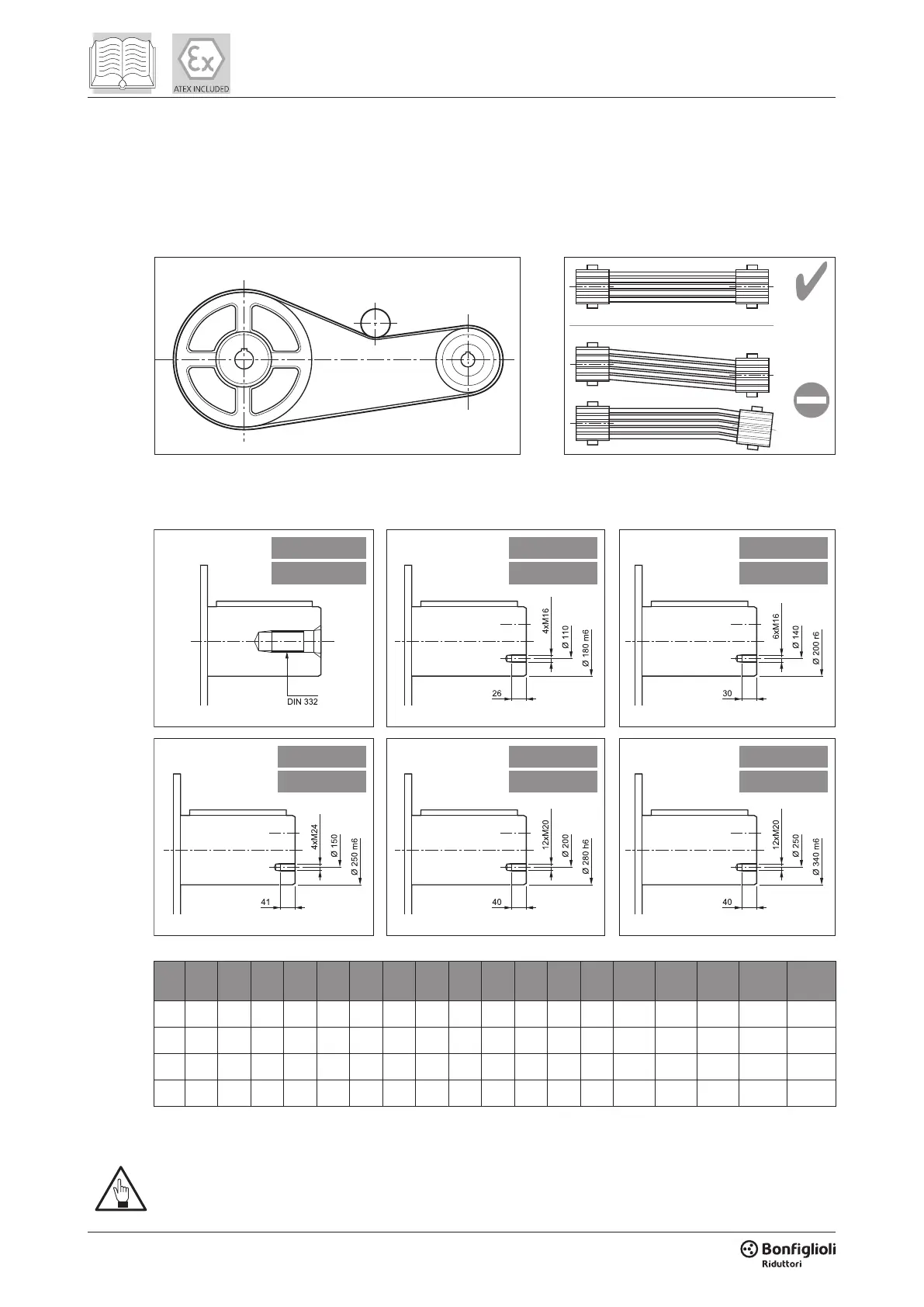

Shaft end: threads
Installing accessories on splined shafts
Do not use hammers or other tools that might damage the gear unit’s shafts or bearings
when mounting external parts. Instead, proceed as illustrated in the diagram below:
316 , 316M 317 , 317M
319 321318 , 318M
HC-PC HC-PC
HC-PC
HC-PCHC-PC
300...315
310M...315M
300 301 303 304 305 306 307 309
310
310M
311
311M
313
313M
314
314M
315
315M
316
316M
317
317M
318
318M
319 321
MC M12 M12 M20 M20 M20 M20 M20 — — — — — — — — — — —
HC M16 M16 M20 M20 M20 M20 M20 M24 M24 M24 M24 M24 M24 4xM16 6xM16 4xM24 12xM20 12xM20
PC M12 M16 M20 M20 M20 M20 M20 M24 M24 M24 M24 M24 M24 4xM16 6xM16 4xM24 12xM20 12xM20
VK — — M20 M20 M20 M24 M24 M24 M24 M24 M30 M30 M30 — — — — —
Mounting pulleys
Clean all parts before installing them. When installing belt drive pulleys, the shafts must be paral-
lel with their pulleys aligned.
Do not over tension the drive belt as this can damage the bearings.
