23 / 52
300 301 303 304 305 306 307 309
310
310M
311
311M
313
313M
314
314M
315
315M
316
316M
317
317M
318
318M
319 321 323 325
M6 M6 M8 M8 M8 M10 M10 M16 M16 M16 M16 M20 M20 M20 M20 M20 M24 M27 M30 M30
8 10 12 12 12 9 12 8 8 10 10 15 15 15 16 20 18 16 21 24
10.9 10.9 10.9 10.9 10.9 10.9 10.9 10.9 10.9 10.9 10.9 10.9 10.9 12.9 12.9 12.9 10.9 10.9 10.9 10.9
12 12 30 30 30 58 58 250 250 250 250 490 490 570 570 570 840 1250 1640 1640
Bolt
Quantity
Class
Tightening
torque [Nm]
Locate the closed oil plug used during shipping and replace it with the vent plug supplied in the
shipment.

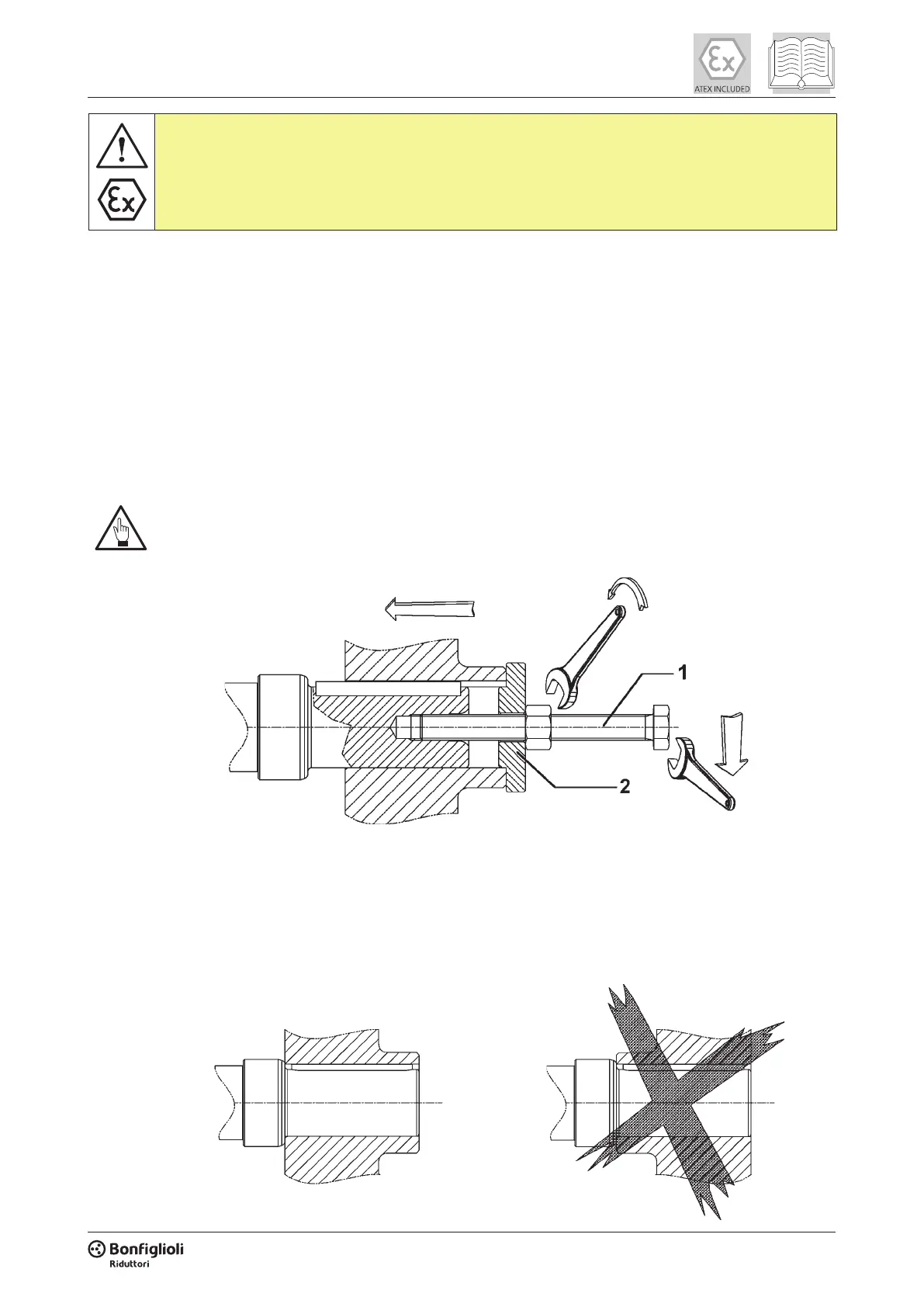

5.1.4 Installing accessories on solid input and output shafts
Do not use hammers or other tools that might damage the gear unit’s shafts or bearings
when mounting external parts. Instead, proceed as illustrated in the diagram below:
Bolt (1) and spacer (2) are not included in the consignment.
To minimise the loads on the shaft bearings, when mounting transmission mechanisms with
asymmetrical hubs use the conguration shown in diagram (A) below:
