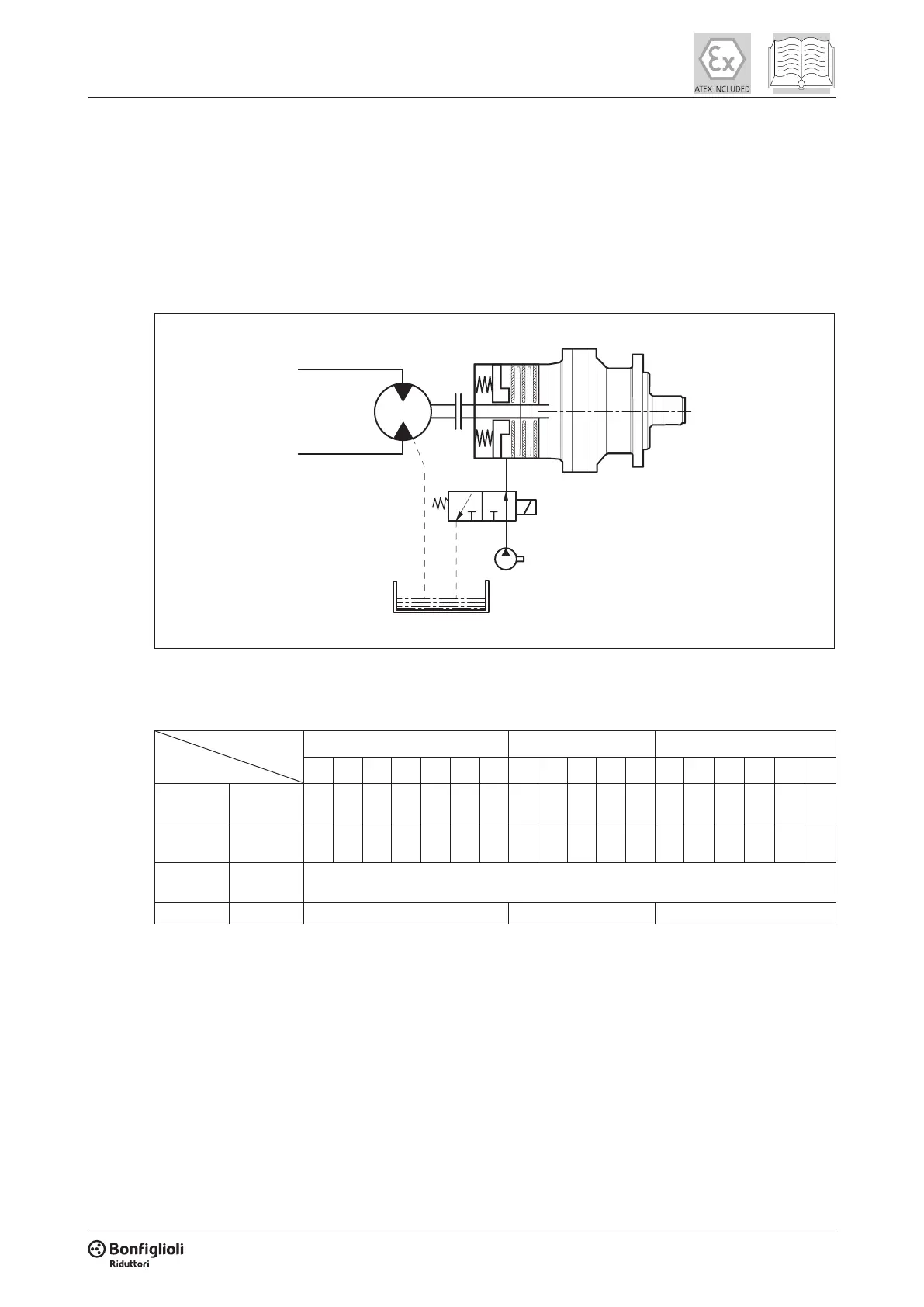

5.4 CONNECTING THE HYDRAULIC BRAKE
On gear units designed for coupling to hydraulic motors and tted with a brake, connect the brake
control tting to the hydraulic circuit at the time of assembly.
Start-up
The minimum pressure to release the brake (see chart) must be less than 320 bar.
Technical data
NOTE: The static torque M
bs
is the maximum torque the brake can exert.
Under dynamic loads the braking torque is reduced. The actual M
bs
values can vary from -5% to
+15% of the rating given in the chart.
4... 5... 6...
A B D F H K L B C E G K B C E G K L
M
bs
[
Nm
±10%
]
50 100 160 260 330 400 440 400 500 630 800 1000 850 1100 1500 2100 2600 3200
bar 10 20 30 20 25 30 33 20 27 20 25 32 14 19 25 19 24 28
bar 320
kg 10 18 35
Brake
Characteristics
Braking
torque
Minimum
release
pressure
Max. pressure
Weight
