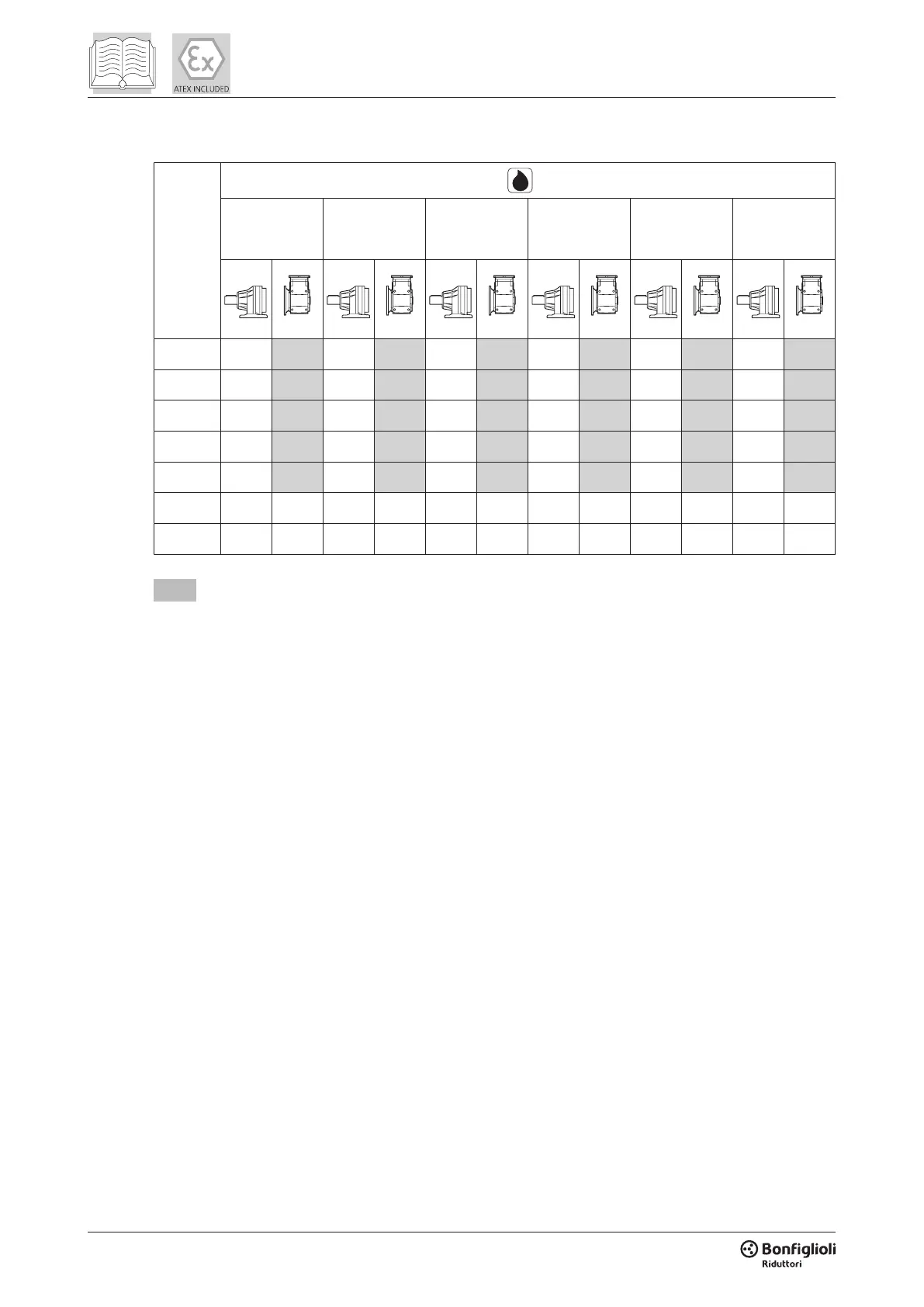

3/A Series
NOTE: In combined gear units, lubrication of the planetary stage is separate from that of the worm
(3/V) or helical bevel (3/A) stages.
Life lubrication
oil
[l
AA - EA - FD TA - TE - TF
TD- VA - VE
VF - VD
OA - OE - OF
OD - QA - QE
QF- QD
AD - ED - FA AF - EF - FE AE - EE - FF
3/A 00 L2 0.60 1.4 1.0 1.4 0.90 1.4 0.60 1.4 0.60 1.4 0.60 1.4
3/A 01 L2 0.80
2.3
1.2
2.3
1.1
2.3
0.80
2.3
0.80
2.3
0.80
2.3
3/A 03 L2 1.3 3.2 2.3 3.2 2.0 3.2 1.3 3.2 1.3 3.2 1.3 3.2
3/A 04 L2 1.4 3.8 2.4 3.9 2.2 3.9 1.4 4.5 1.4 5.0 1.4 4.2
3/A 05 L2 1.6 4.0 2.6 4.1 2.4 4.1 1.6 4.7 1.6 5.2 1.6 4.4
3/A 06 L2 2.5 4.9 3.5 8.1 3.2 4.7 2.5 8.4 2.5 11 2.5 9.2
3/A 07 L2 3.5
6.8
5.0
8.1
4.5
12
3.5
15
3.5
18
3.5
15
