The grounding wire of the inverter must not be grounded together with other large current
loads (such as soldering machines or large current motors). They should be grounded
separately.
z
Grounding circuitry must not be formed when grounding several inverters together.
(a) good (b) good (c) not good
(D) Wire specification, apply appropriate wire with correct diameter for primary power circuitry and
control circuitry in accordance with electricity regulations.

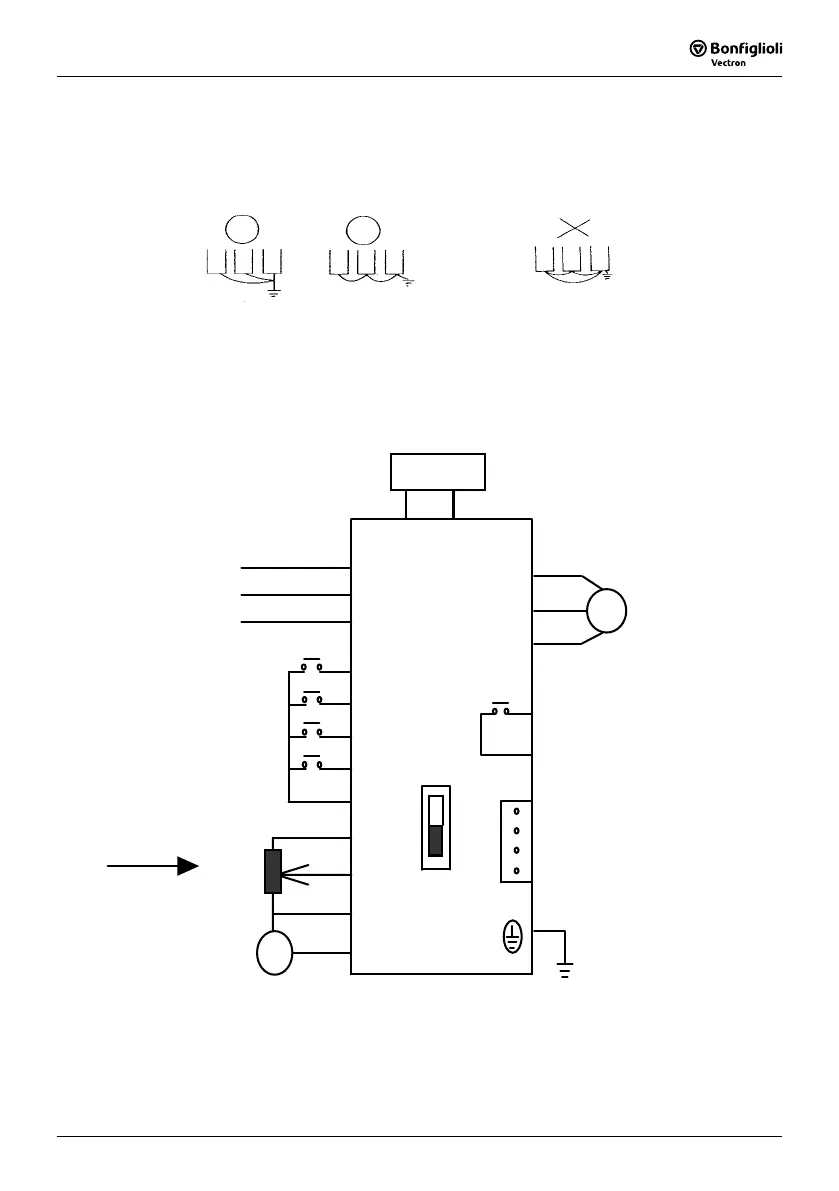

4. Wiring Diagram
Wire Terminations to the Inverter must be made in compliance to the applicable standards.
P R
L1
L2
L3
F WD
REV
SP1
RST
12V
+10V
MVI
(0~10V/0~20/4~20mA)
0V(FM–)
FM+
* Braking Resister
(Option
)
S W1
1
2
3
(U)T1
(V)T2
(W)T3
1
2
CON2
AC Input
I M
}
Trip Relay
Test Points
Grounding
3
4
6
5
{
Multi-Function
Inputs
8
9
10
11
F
S
eed Pot
10k
Ω
0~10V
To Next Page
