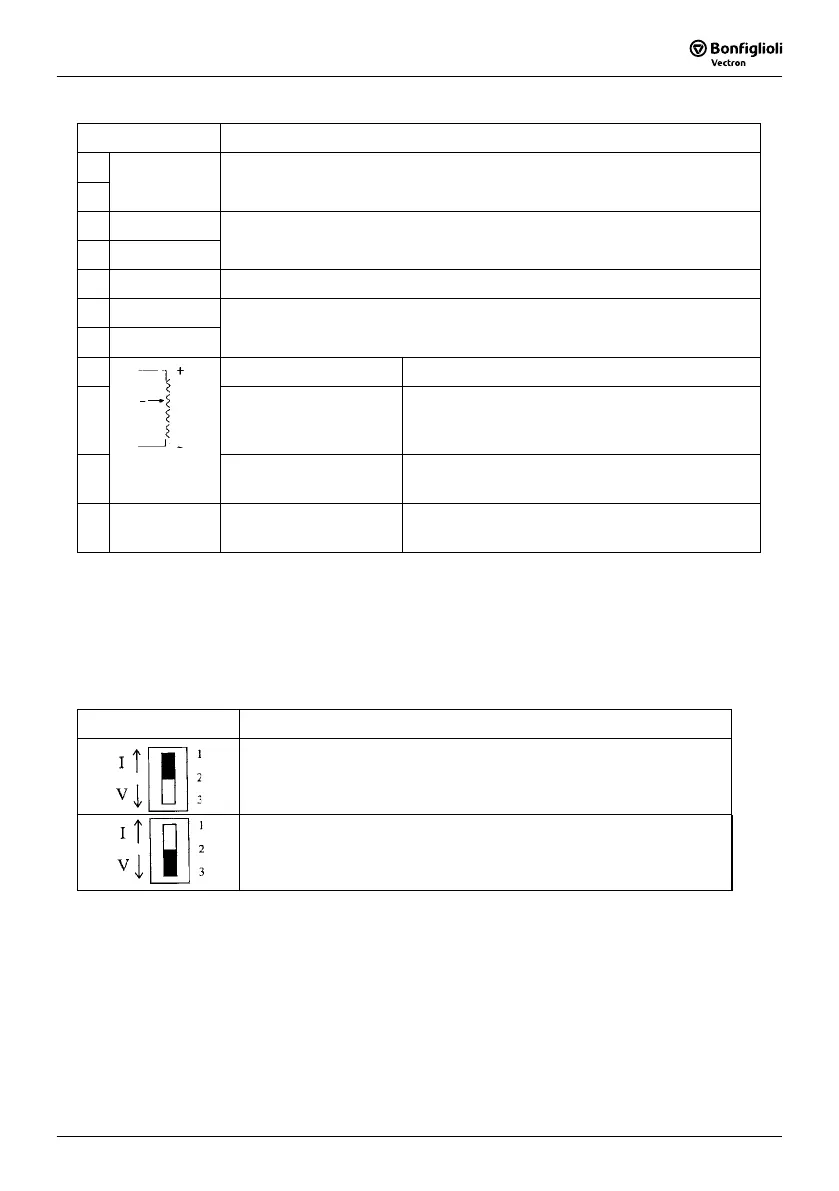

Control Circuitry Terminal Block (TM2) description
Terminal Symbol Function Description
1
2
TRIP
RELAY
Fault relay output terminal Multi function output terminal (refer to F_21)
Connection point rated capacity 250VAC/1A (30VDC / 1A)
3 FWD (FW)
4 REV (RE)
Operation control terminals (refer to F_03)
5 + 12V(12) Common point of terminal 3 / 4 / 6 / 7
6 SP1(SP)
7 RESET(RS)
Multifunction input terminals (refer to F_19)
8 +10V Power terminal for potentiometer ( Pin 3 )
9 Analog input wire
Wiper
Analog frequency signal input terminal ( Pin 2 of
potentiometer or positive terminal of 0~10V / 4~20mA /
0~20mA)
10
0V(FM -)
Analog common point Analog signal common point ( Pin 1 of potentiometer or
negative terminal of 0~10V / 4~20mA / 0~20mA )
11 FM+ Analog output positive
connection point
Analog frequency signal output terminal
Output terminal signal is 0 ~ 10VDC/Fn6
Tightening torque for TM2 is 0.57 Nm.
* Wire voltage rating must be a minimum of 300V
* Control wiring should not run in the same conduit or raceway with power or motor wiring
* Single Input and Output Terminals (TM2) Ratings are ALL Class 2
SW1 function description
SWITCH 1 External signal type
0~20mA analog signal (When F_11 is set to 1)
4~20mA analog signal (When F_11 is set to 2)
0~10 VDC analog signal (When F_11 is set to 1)
(default)

BONFIGLIOLI Vectron Syn10 T400 05 AF Specifications

General

Category	Controller
Model	Vectron Syn10 T400 05 AF
Output current	5 A
Frequency	50/60 Hz
Power	2.2 kW
Protection class	IP20
Communication interface	Modbus RTU
Operating temperature	0...+40 °C
Input voltage	400V AC
