BONFIGLIOLI Vectron Syn10 T400 05 AF User Manual

32
32

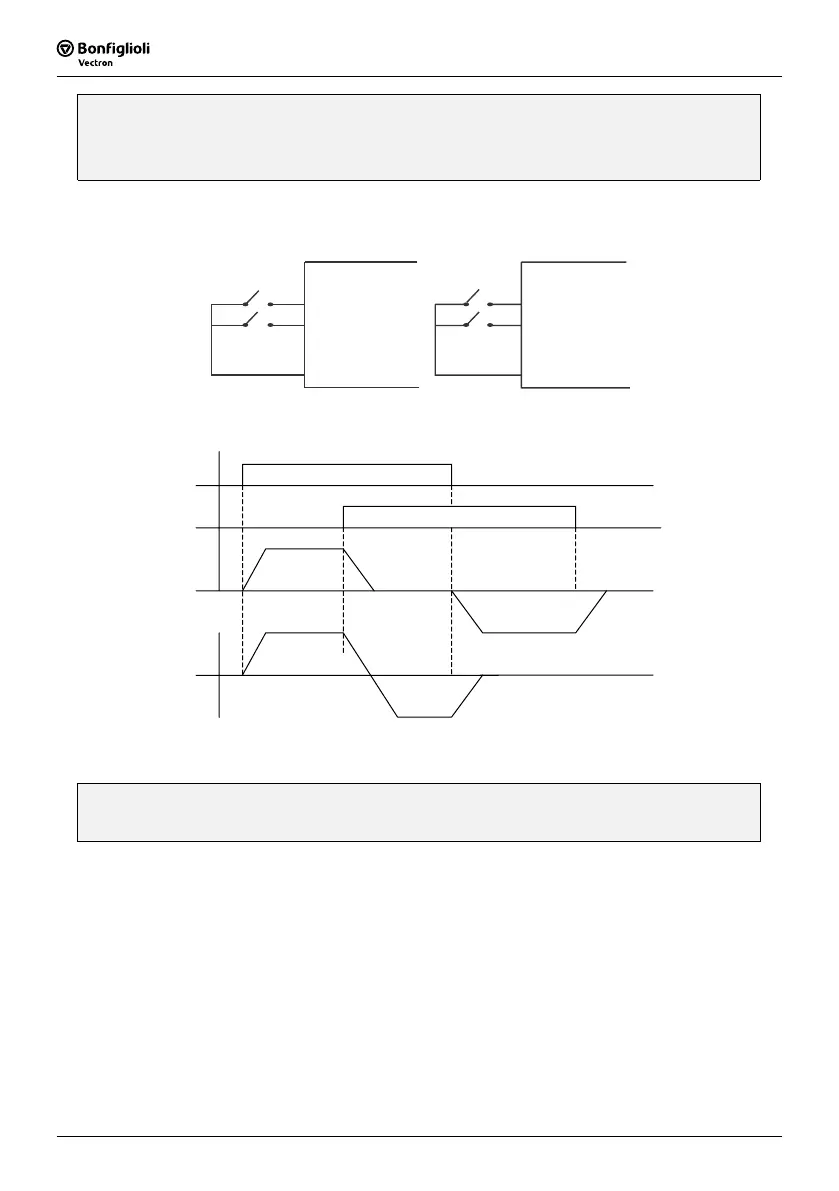

F_03: Operation mode selection =
0: Forward / Stop, Reverse / Stop
1: Run / Stop, Forward / Reverse
NOTE 1: F_03 takes effect only when F_10 = 1 (external operation control)
TM2 PIN3
TM2 PIN4
Note: Reverse command is ignored when F_22 = 1
F_04: Motor rotation direction setting = 0: Forward
1: Reverse
Although there is no Forward / Reverse push button on the digital control panel, it is possible to
adjust forward / reverse function by changing the F_04 setting.
NOTE:
When F_22 =1: Reverse is disabled, the F_04 cannot be set to 1.
The keypad indication would display “LOC”.
F_03 = 0
control
method
F_03 = 1
control
method
3 FWD /Stop
4 REV /Stop
3 Run / Stop
4 FWD/ REV
5 COM
5 COM
Forward
F_03=1
Out
p
ut
ON
ON
Forward
Reverse
Reverse
F_03=0
Output
