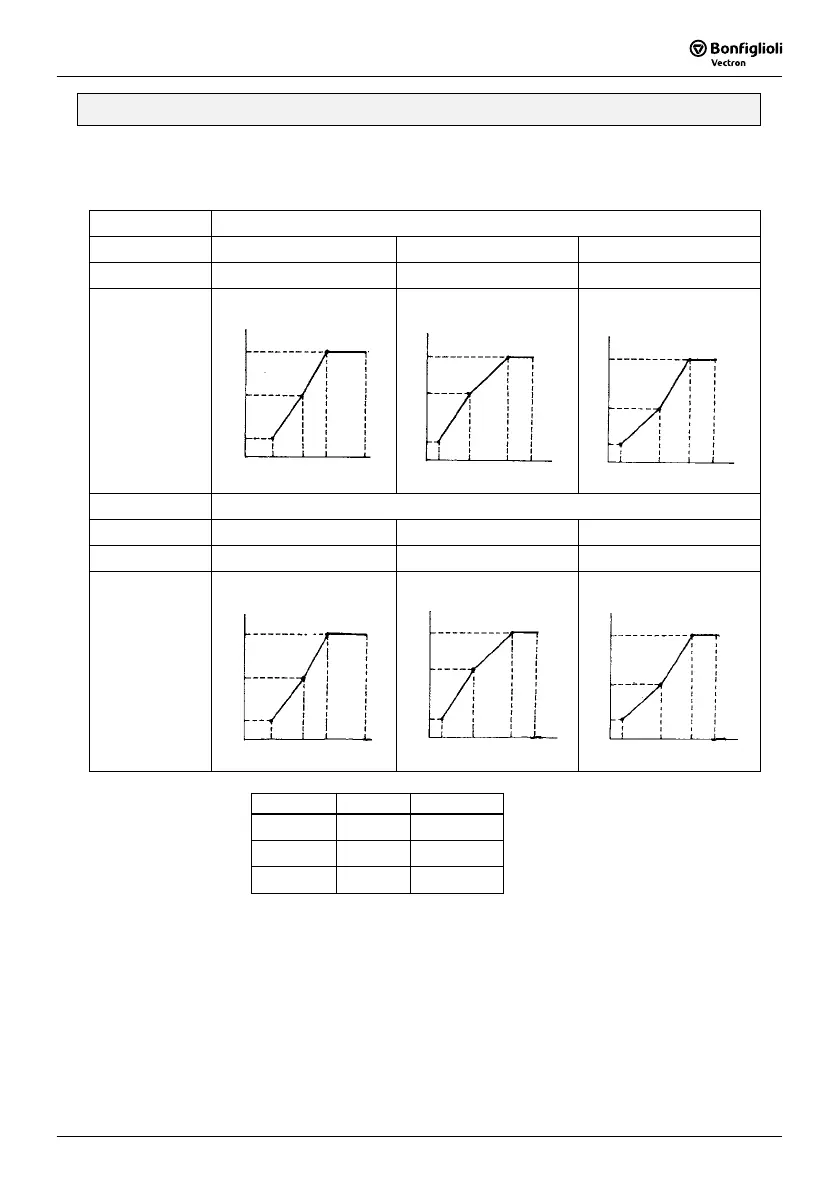

F_05: V/F pattern setting = 1 ~ 6
Selecting F_05 = 1-6 to select one of the six preset V/F patterns. (Refer to the following tables)
Specification 50 Hz System
Application General Application High starting torque Decreasing torque
F_5 1 2 3
V/F pattern
Specification 60Hz System
Application General Application High starting torque Decreasing torque
F_5 4 5 6
V/F pattern
F_5 B C
1/4 10% 8%
2/5 15% 10.5%
3/6 25% 7.7%
V (%) V (%)
V (%)
V (%) V (%)
V (%)
100
B
C
100
B
C
100
B
C
100
B
C
100
B
C
100
B
C
1 2.5 50 200
1 25 50 200
1 2.5 50 200
1 3.0 60 200 1 3.0 60 200
1 30 60 200
Hz
Hz
Hz
Hz
Hz
Hz

BONFIGLIOLI Vectron Syn10 T400 05 AF Specifications

General

Category	Controller
Model	Vectron Syn10 T400 05 AF
Output current	5 A
Frequency	50/60 Hz
Power	2.2 kW
Protection class	IP20
Communication interface	Modbus RTU
Operating temperature	0...+40 °C
Input voltage	400V AC
