BONFIGLIOLI Vectron Syn10 T400 05 AF User Manual

18

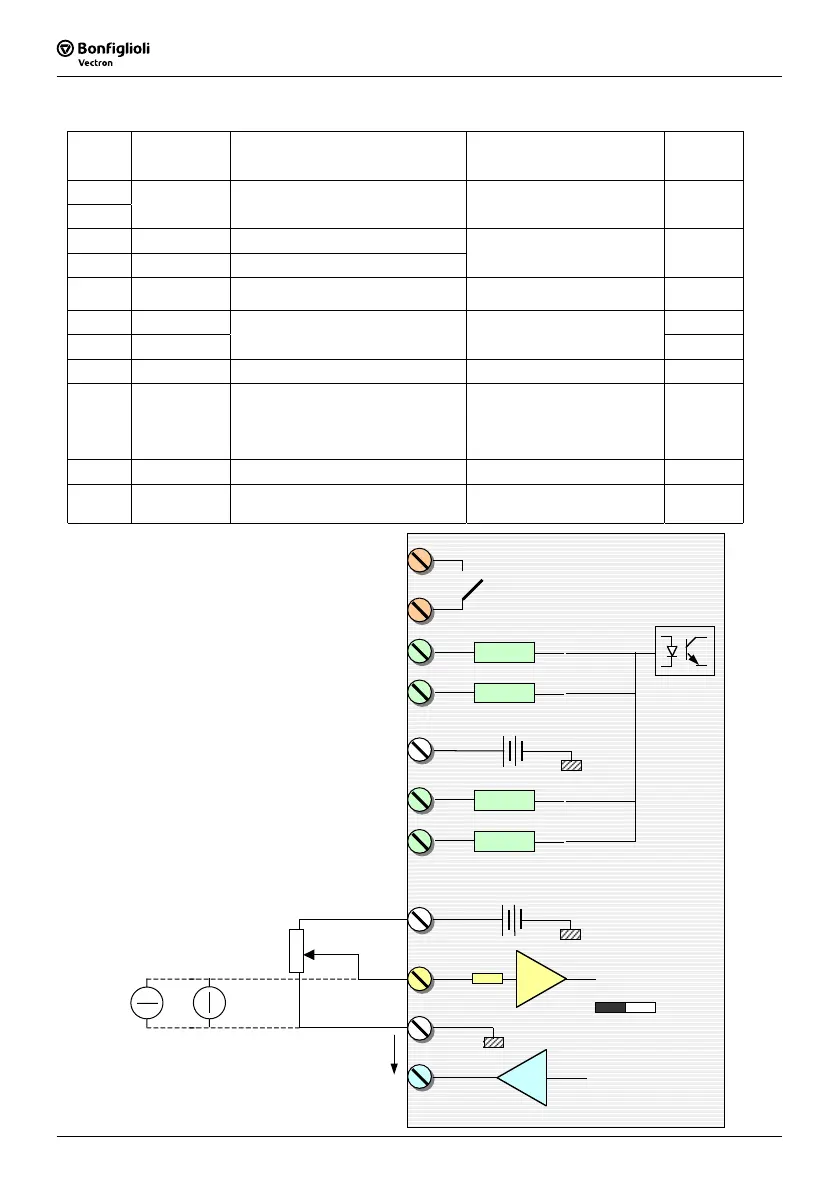

Control Circuitry Terminal Block Electrical Features
Terminal
number
Terminal name Default function Electrical features Parameter
1
2
Trip
Relay
Relay output
250VAC/1A 30VDC/1A
F_21
3 FWD Forward run
4 REV Reverse run
12/24VDC, 4.5mA , 3.6K_
F_03
F_10
5 DC12V Output power supply +12VDC
12VDC, 20mA
-
6 SP1 F_19
7 RST
Multifunction digital input
12/24VDC, 4.5mA , 3.6K_
F_20
8 DC10V Output power supply +10VDC
10VDC, 10mA
9 V / I in
Analog input (+)
Voltage/Current
(Potentiometer 10K_)
DC 0~10V 20K_,
DC 0~20/4~20mA 250_
10 bits resolution
F_06,
F_07
F_11
Switch1
10 0V Common Analog (-)
0V
-
11 FM + Analog output (+)
DC 0~10V, 1mA
F_06
F_07
3. 6 k
3. 6 k
SP
RST
3. 6
k
3. 6
k
FWD
REV
10k
0 – 10V0/4-20mA
1
m
A
FM
+
0 – 10V
AIN
+
R
R=
20kΩ
1
3
SW1
R=
250Ω
0V
-
Isol.
250Vac/1A
30Vdc/1A
RELAY
+ 10VDC
10 mA
10V
Isol.
+ 12VDC
20 mA
+12V
Isol.
18

BONFIGLIOLI Vectron Syn10 T400 05 AF Specifications

General

Category	Controller
Model	Vectron Syn10 T400 05 AF
Output current	5 A
Frequency	50/60 Hz
Power	2.2 kW
Protection class	IP20
Communication interface	Modbus RTU
Operating temperature	0...+40 °C
Input voltage	400V AC
