Chapter 3 Software Index
Keypad operating instructions -Keypad Description
CAUTION
Do not operate keypad by screwdriver or other sharp-ended tool to avoid damaging keypad.

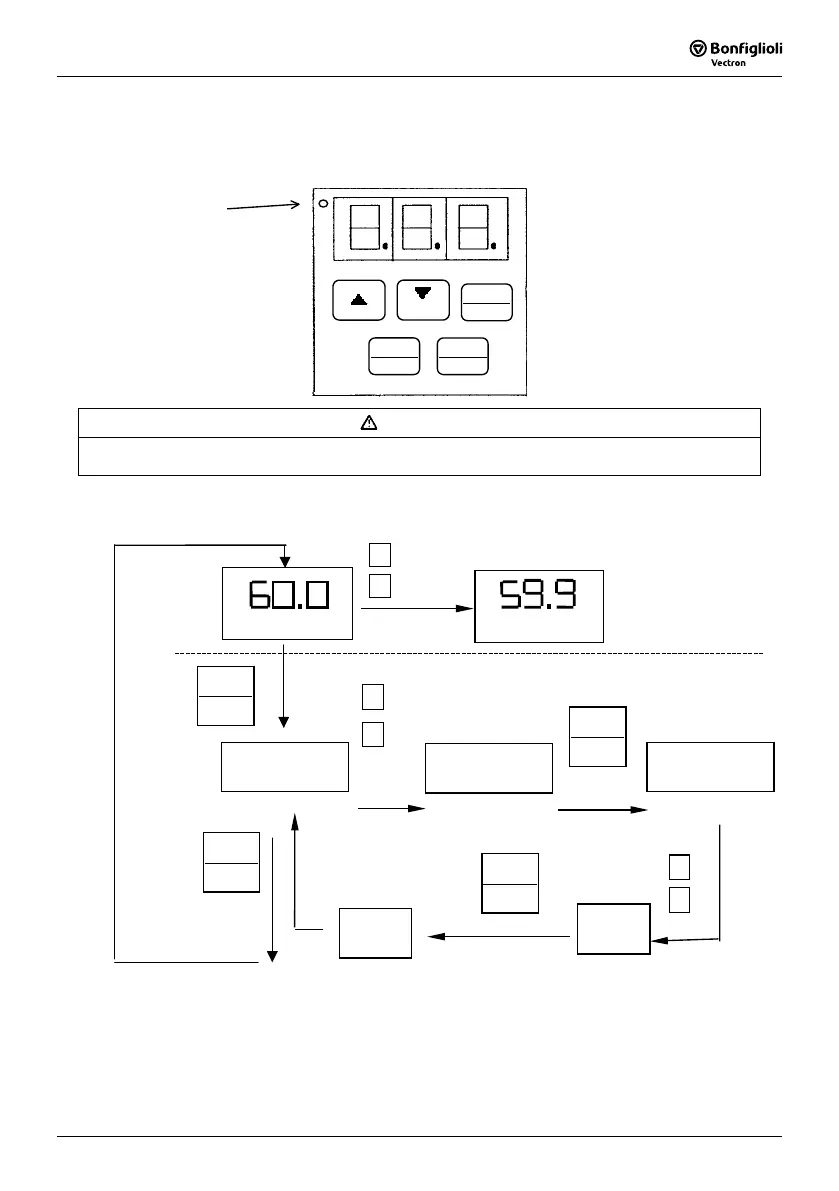

Brief keypad operation flowchart
Note 1: Displayed setting of frequency when stopped. Display output frequency when running.
Note 2: The setting of the frequency can be modified either when stopped or when running.
(FREQ) * 1
(FREQ)
POWER LED
F

DSP
FUN
DSP
FUN
F



DATA
ENT
(READ)
END

DATA
ENT
(WRITE)
AFTER
0.5 SEC



2


RESET
DATA
ENT
RUN
STOP
STOPSTOP
STOP
DSP
FUN

BONFIGLIOLI Vectron Syn10 T400 05 AF Specifications

General

Category	Controller
Model	Vectron Syn10 T400 05 AF
Output current	5 A
Frequency	50/60 Hz
Power	2.2 kW
Protection class	IP20
Communication interface	Modbus RTU
Operating temperature	0...+40 °C
Input voltage	400V AC
