bora Classic 2.0 Installation Instructions

EN
32
Installation
www.bora.com
Total nominal connection values for U-LPG/
2.75 kPa test point pressure: 18.6 Mj/h
Cooktop energy consumption AU/NZ – U-LPG/
2.75 kPa test point pressure:
High Power front burner 11.2 Mj/h
Normal back burner 7.4 Mj/h
Total nominal connection values for NG/
1.0kPa test point pressure: 19.5 Mj/h
Cooktop energy consumption AU/NZ – NG/
1.00 kPa test point pressure:
High power front burner 12.0 Mj/h
Normal back burner 7.5 Mj/h
1
2
3
4
5
6

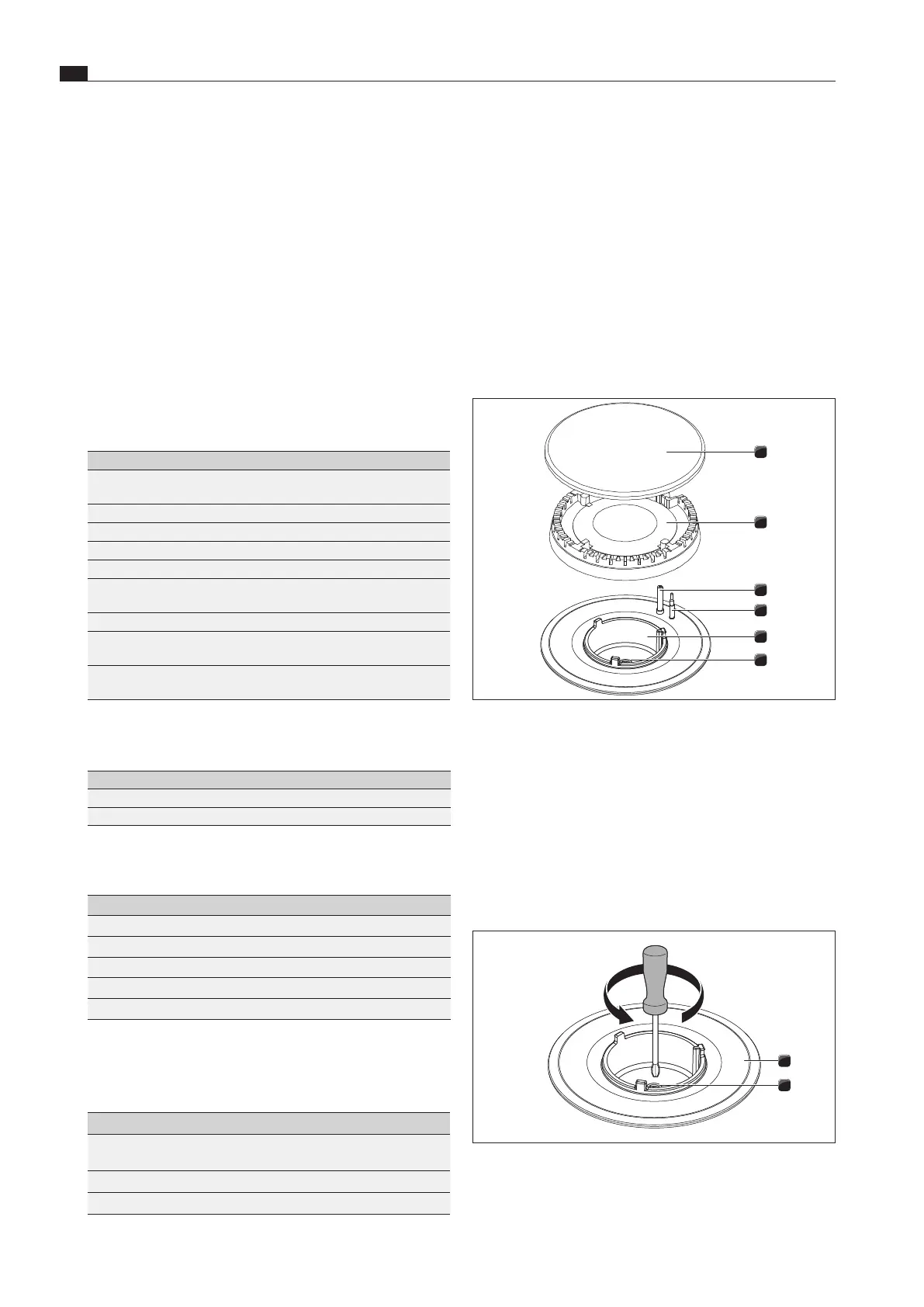

Fig. 4.43 Gas burner structure
[1] Burner cap
[2] Burner head
[3] Electric igniter
[4] Safety thermocouple
[5] Burner housing
[6] Gas burner nozzle
XX
Remove the pan support.
XX
Remove the burner cap [1] from the burner head [2].
XX
Remove the burner head [2] from the gas outlet.
1
2
Fig. 4.44 Cooktop burner with gas burner nozzle
[1] Gas burner
[2] Gas burner nozzle
XX
Unscrew the gas burner nozzle [2] from the gas burner [1]
Changing the gas burner nozzle in the gas burner
i
The nozzles regulate the maximum gas throughflow for
each burner and gas type/pressure.
i
The gas cooktop is set by default to natural gas
G20/20mbar (pre-assembled).
i
Special setting for Australia and New Zealand:
The gas cooktop is set by default to natural gas/ 1.0 kPa
(G20/10mbar pre assembled).
i
Use only stamped and approved nozzles.
The stamp on the nozzles corresponds to the values in the
nozzle table and can be found either on the top or side of the
nozzles.
EU
Gas type/
gas pressure mbar
Ø SR burner/
normal burner
Ø R burner/
high-power burner
G20/20 104 125
G25/20 110 131
G20/10 122 155
G20/13 115 149
G25/25
G25.3/25
104 131
G20/25 100 119
G30/29
G31/37
69 85
G30/50
G30/31 – 50 mbar
62 78
Tab. 4.9 Nozzle table
Total nominal connection values for liquid gas:
Gas type mbar kW g/h m³/h
G30/G31 50 4.90 328 0.129
G30 29 5.00 348 0.137
Tab. 4.10 Liquid gas nominal connection values
Total nominal connection values for natural gas:
Gas type mbar kW m³/h
G20 20 5.00 0.449
G25 25 5.10 0.538
G25.3 25 5.10 0.538
G20 13 5.10 0.486
G25 20 4.80 0.501
Tab. 4.11 Natural gas nominal connection values
Special nozzle table for Australia and NewZealand:
AUS / NZS
gas type Ø SR burner/
normal burner
Ø R
burner
NG/1.0 kPa (G20/10) 1.22 1.55
ULPG/2.75 kPa (G31/27,5) 0.75 0.92
Tab. 4.12 Nozzle table (Australia and New Zealand)

bora Classic 2.0 Specifications

General

Product name	BORA Classic 2.0
Category	Cooktop
Cooking zones	2
Automatic heat up function	Yes
Timer function	Yes
Child safety lock	Yes
Residual heat indicator	Yes
Material	Glass ceramic
Color	Black
Type	Induction
Control type	Touch
Power levels	9
Extraction System	Integrated
Frequency	50 Hz
Safety features	Overheating protection
Supply voltage	220 – 240 V
Installation type	Built-in
