Do not use a cordless screwdriver or similar electrical device
to secure the Tepan stainless steel grill
XX
Check that the alignment and installation height are correct.
4.12 Connecting external switch
contacts
i
The Home In and Home Out external connections must
only be connected by a certified specialist. The specialist
also assumes responsibility for the proper installation
and commissioning.
When using Home In and Home Out, you will require the relevant
documents for the external switch devices in order to ensure
safe device connection and operation.
The following switch contacts can be used:
Contact Function Connection
Home In
Cooktop extractor on/off connection
for external switch contact (contact
closed: cooktop extractor on)
12 V DC
100 mA
Home Out Electrically isolated contact for
controlling external installations
depending on the operating status
of the cooktop extractor (cooktop
extractor on: contact closed)
maximum
250 V AC/
30 V DC, 5 A
Tab. 4.5 Switch contacts
i
The Home In contact can be used for external safety
devices (e.g. window contact switches). If the switch is
open, the cooktop extractor is off.
i
No window contact switches may be installed that
interrupt the control unit power supply (phase
separation). Only the built-in interface is to be used.
Preparing the control unit
1
2
3
4
5

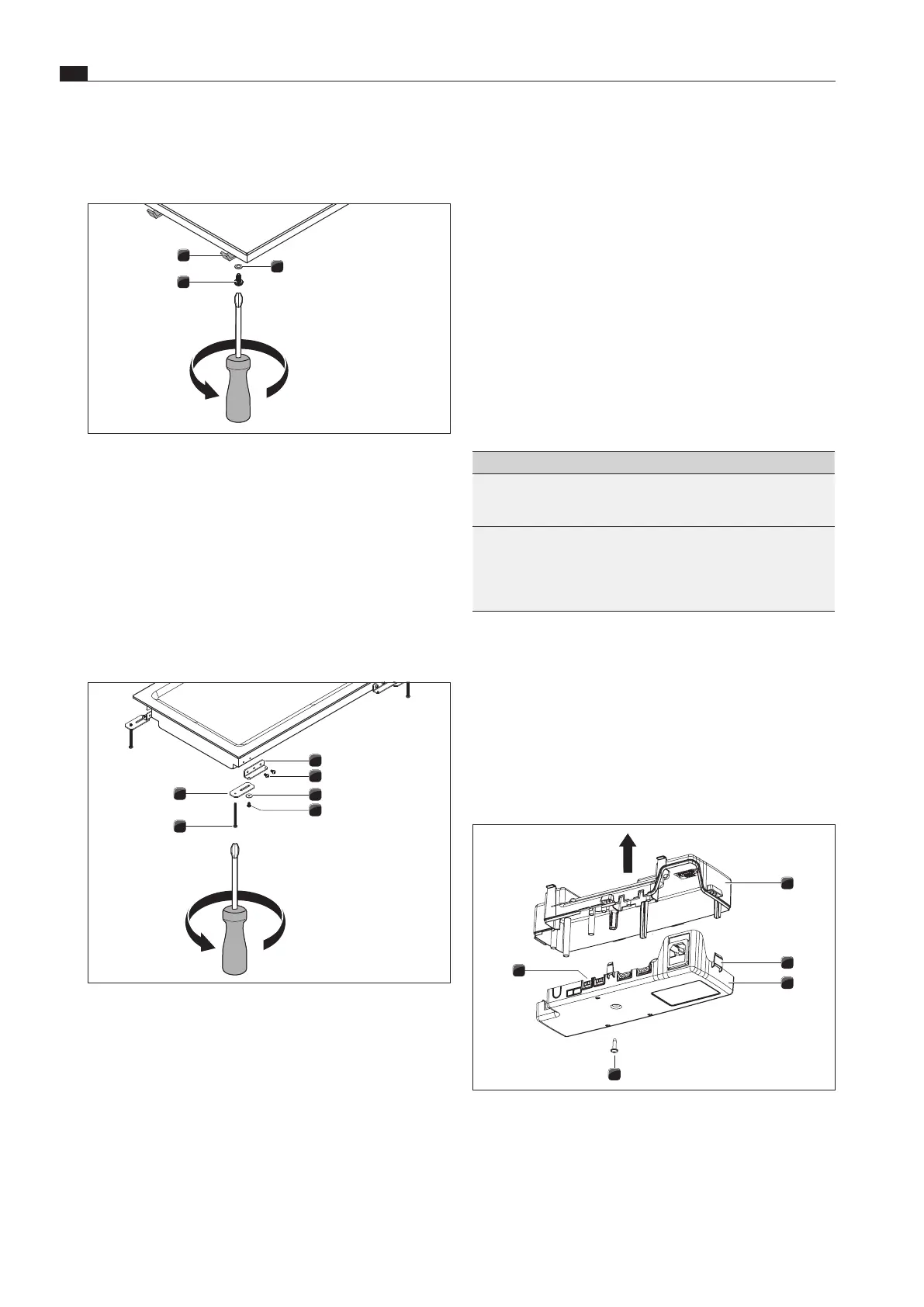

Fig. 4.30 Opening the control unit housing cover
[1] Housing cover
[2] Locks
[3] Housing subshell
[4] Screw
[5] Electronic unit
4.11.3 Securing the cooktops
Cooktops CKFI, CKI, CKIW, CKCH, CKCB, CKG
1
3
2
Fig. 4.28 Securing the cooktops
[1] Mounting bracket
[2] Washer
[3] Screw
XX
Secure the cooktop using the four mounting brackets [1].
XX
To do this, tighten the mounting brackets with a screw [3]
using the washers [2] with max. 2 Nm.
XX
Do not use a cordless screwdriver or similar electrical device
to secure the cooktops.
XX
Check that the alignment and installation height are correct.
Tepan stainless steel grill CKT
5
4
3
2
2
1
Fig. 4.29 Securing the Tepan stainless steel grill
[1] Angled plate
[2] Screws
[3] Washer
[4] Screw (60 mm)
[5] Mounting bracket
i
Before the Tepan stainless steel grill can be laid in the
cut-out, the 4 angled plates [1] must be fitted.
XX
Secure the cooktop using the four mounting brackets [5].
XX
To do this, tighten the mounting brackets with the screws [2]
and [4] using the washer [3] with max. 2Nm.
