2. Aligning the appliance in the
installation enclosure
Note:
To ensure that the appliance functions correctly,
it must be set perfectly levelled.
Do not twist or jam the appliance inside the
installation enclosure! When adjusting the height-
adjustable feet, proceed gradually: Always alternate
between left and right, etc.
For easier adjustment of the rear feet take the weight
off by slightly tilting the appliance forward.
Do not bend the appliance against the anti-tip-
brackets.
The positioning aid on the door have been designed for
the following total thickness of door panels:
3
/
4
" (19 mm)
1
1
/
2
" (38 mm)
Always take account of the possible differing thickness
of the panel fronts which are to be fitted subsequently.

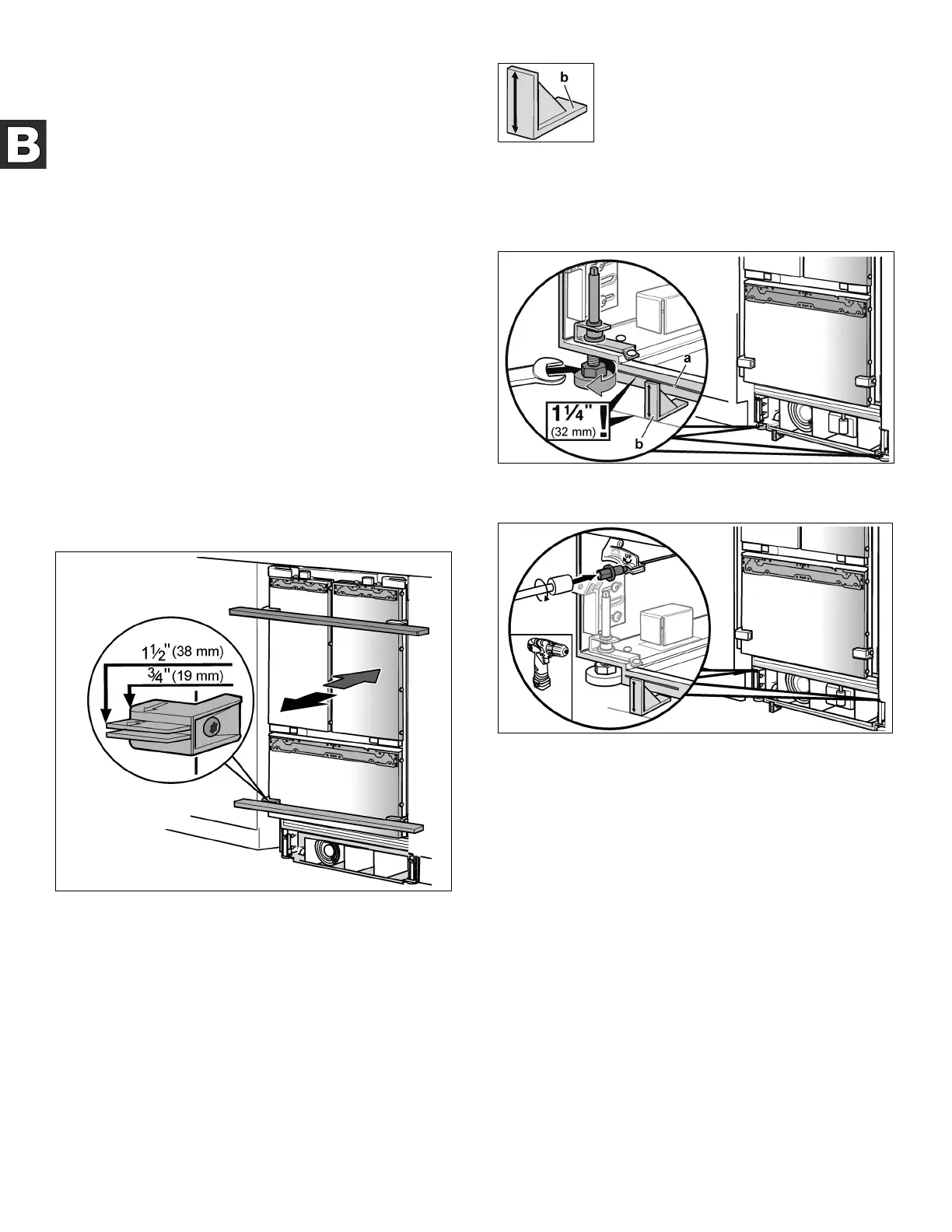

1. Align the appliance with the cabinet fronts using the
positioning aid.
Place level over the positioning aid on the door.
The height-adjustable feet at the front and rear can all be
adjusted from the front.
Front: with open-ended wrench
1
/
2
"
(Width across flats 13 mm)
Rear: with
5
/
16
" (8 mm) hex nut driver via flexible
shaft.
The mark (a) attached at the appliance base is used as
a standard gage for height adjustment. When adjusting
the height, align this mark at a height of 1
1
/
2
" (32 mm)
above the floor.
It is very important to comply with this dimension for the
subsequent alignment of the furniture fronts.
The height adjustment gauge (b) is used
to set this height correctly. The upper
edge of the gauge must be in alignment
with the mark on the appliance.
2. Unscrew the feet at the front of the appliance
until the mark (a) on the appliance is in alignment
with the upper edge of the height adjustment
gauge (b).
3. Align the appliance vertically using the feet
at the back. Use a level!
