4. Remove the door panel.
5. Using the positioning aid, mark the vertical sides of
the door panel parallel.
6. Using a square, extend the drill hole marks which
you have just made to the vertical marks.
7. Apply the fixation strip and mark out the holes.
8. Pre-drill the holes.
9. Screw on the fixation strips.
10. Hang the door panel on the double threaded bolts.

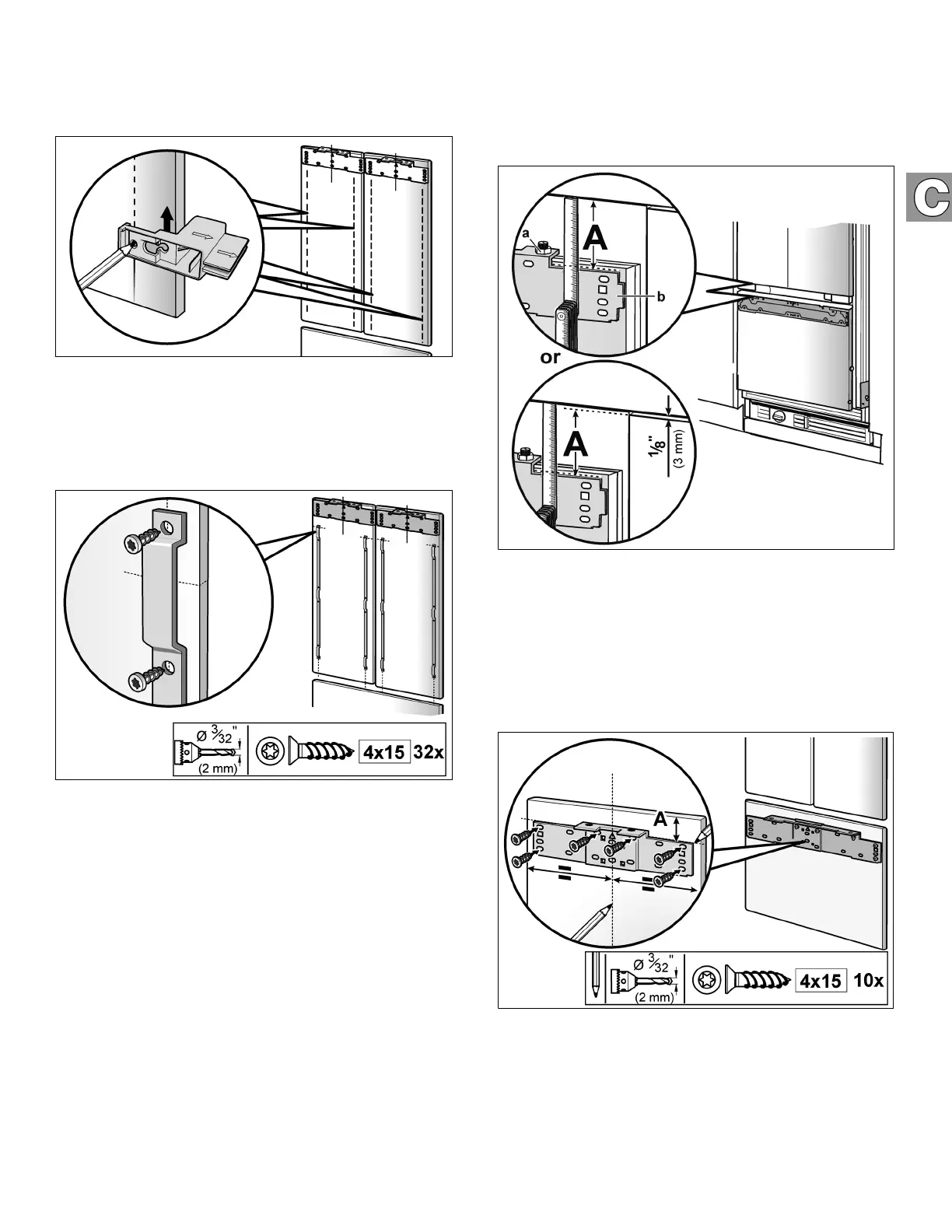

9. Attaching the adjusting rail to the
door panel (freezer compartment)
1. Measure the distance A between the adjusting rail
and the overhead cabinet/fixtures.
2. Loosen the 2 nuts and remove the adjusting rail.
3. Mark this amount A on the rear of the door panel.
4. Determine and mark the centerline of the door panel.
5. Put on the adjusting rail and align along the marks.
Mark the drill holes.
6. Drill the holes.
7. Screw on the adjusting rail tightly.
