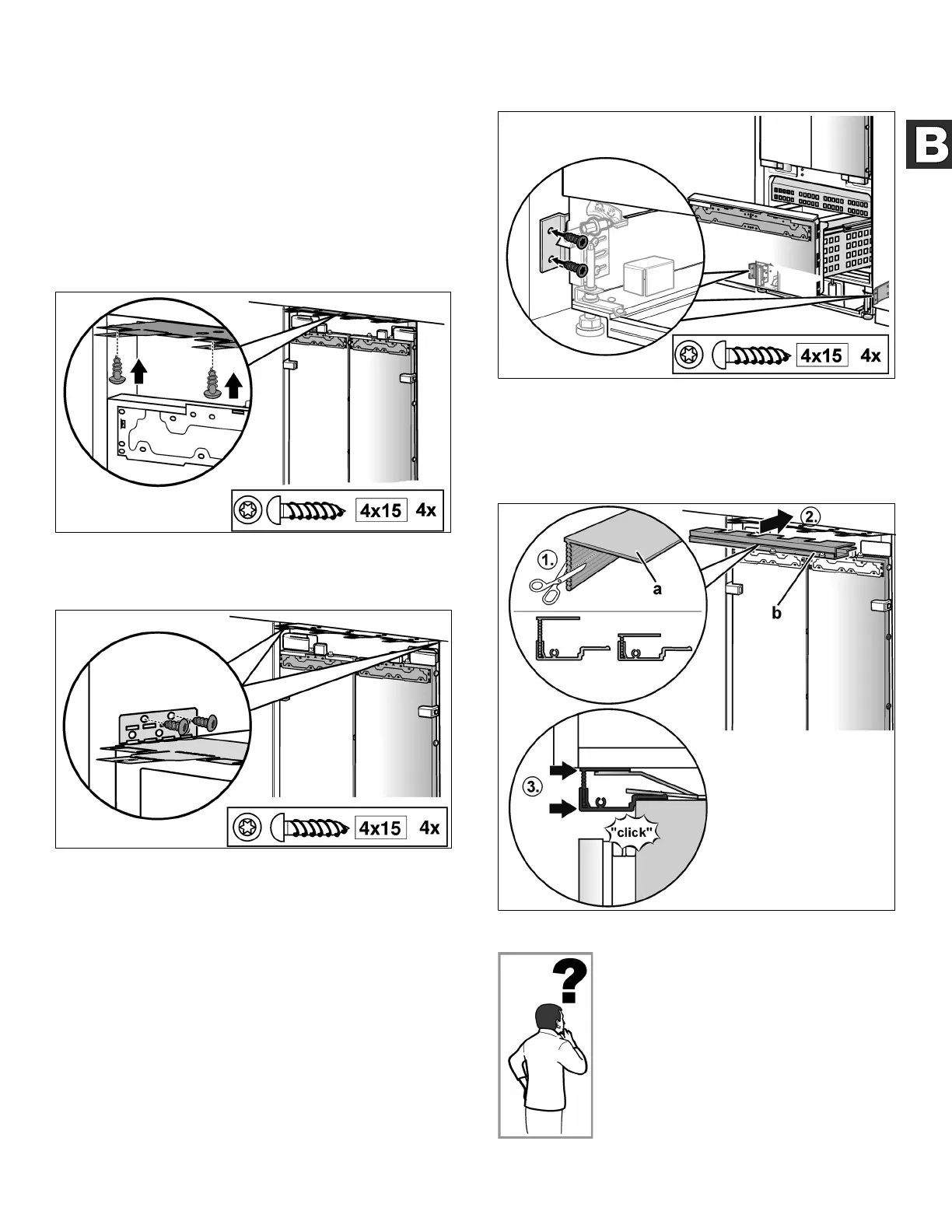

3. Attaching the appliance to the
installation enclosure
Note:
It is essential to attach the appliance to the top of the
installation enclosure.
1. Screw the attachment plate lugs (top) to the
overhead furniture.
2. If there is a fairly large gap above the appliance,
fit a wooden beam above the appliance, ensuring
that the wooden beam fits the gap exactly.
3. If there enough room on the top of the appliance fix
the attachment plate side lugs (top) to the side of the
enclosure.
4. Screw the fastening brackets to the sidewall of the
installation enclosure.
5. Shorten the fitting strip (a) to the required height to
fill the gap.
6. Press fitting strip (a) into the cover strip.
7. Attach the cover strip (b) to the attachment plate
(top).
These are special installation steps.
Instructions are provided after section C.
Connecting the water, see
“Connecting the water to the
appliance”.
