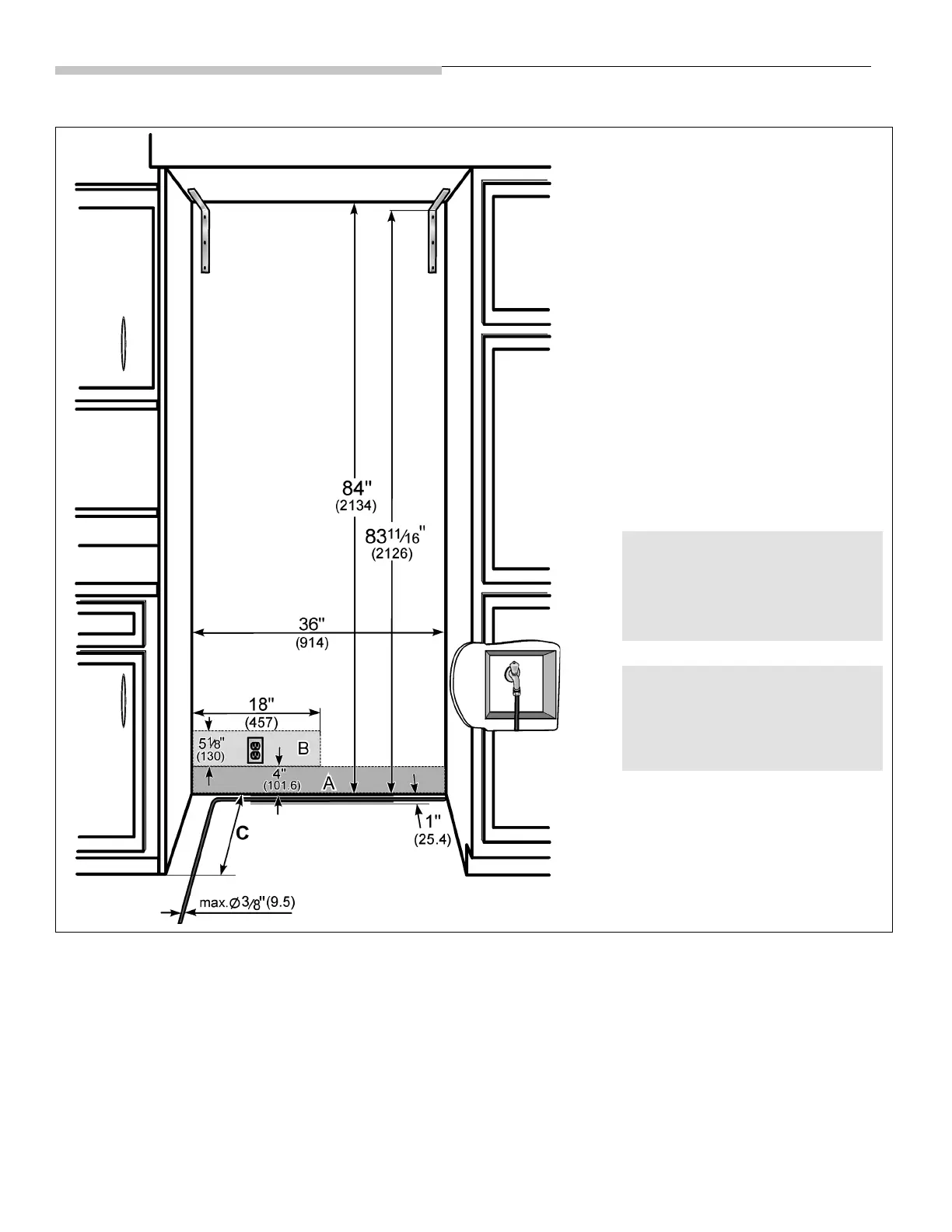

Installation dimensions
Legend:
A Area for installation of the water connection
It is recommended the water-box be placed adjacent to the installation enclosure, so that it can be accessed for
service without uninstalling the appliance. If this is not possible, place the recessed water box within the shaded
area.
B Area for installation of the power connection
C Opening depth of enclosure, depending on kitchen design
C = 24" (610 mm) minimum
IMPORTANT !
It is strongly recommended the top
panel of the enclosure be of solid
material at least
5
/
8
" (16 mm)
thickness.
IMPORTANT !
The side walls of the enclosure
must be perfectly straight.
The furniture return area has to be
at least 4" (100 mm) deep.
