Notes:
Attach the adjusting rail to the door panel with at
least 10 screws. One screw should be inserted
under each double threaded bolt.
The adjusting rail features a variety of holes for the
many different design options of door panels.
Always screw into the best load-bearing material of
the door panel.
10. Attaching the fixation strips to the
door panel (freezer compartment)
Note:
The fixation strips are pre-assembled for stainless steel
doors. In this case continue with the next installation step
(“C / 11. Attaching the door panel (refrigerator
compartment)”).

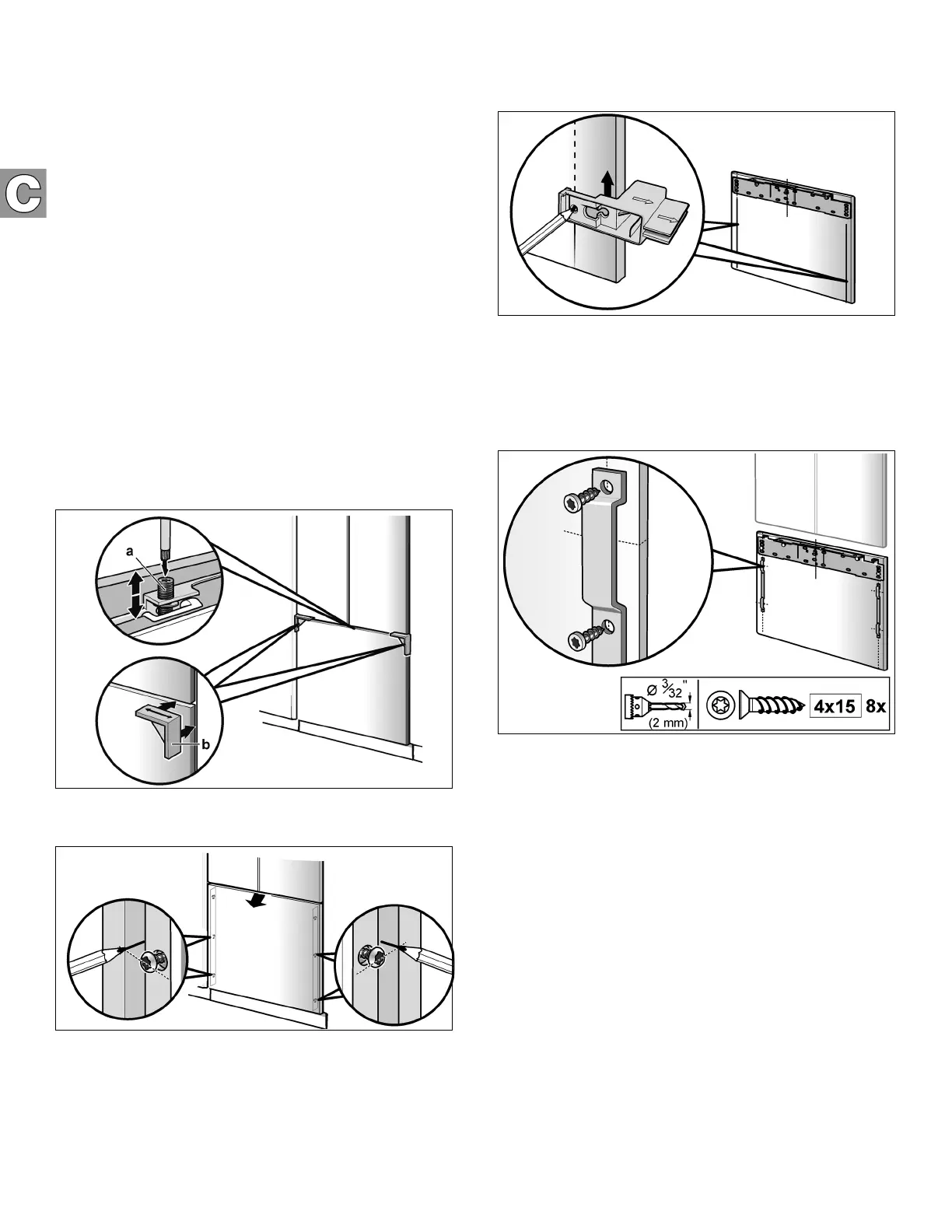

1. Hang the door panel on the double threaded
bolt (a).
2. Align the door panel with the double threaded bolts
(Torx screwdriver).
Re-examine the dimensions of the gap continuously.
Use the height adjustment gauge (b).
3. Transfer the middle drill holes along the outer edge
of the appliance door to the door panel and mark.
4. Remove the door panel.
5. Using the positioning aid, mark the vertical sides of
the door panel parallel.
6. Using a square, extend the drill hole marks which
you have just made to the vertical marks.
7. Apply the fixation strip and mark out the holes.
8. Pre-drill the holes.
9. Screw on the fixation strips.
