Bosch B5512 Reference Guide

Bell requirements
Use the following Rothenbuhler bell and balanced line modules with the control panel:
– UL Listed Model 5110 Bell
– UL Listed Model 4001-42 External Line Balancer
Wiring information for installations using the Rothenbuhler 5110/4001-42 High Security Bell
Refer to the following two figures for wiring information.
0.64 mm (0.25 in)
minimum distance
+
-
+
-
2
1
1
14
9
7
5
6
8
3
4
10
11
13
12
9
16
15
11

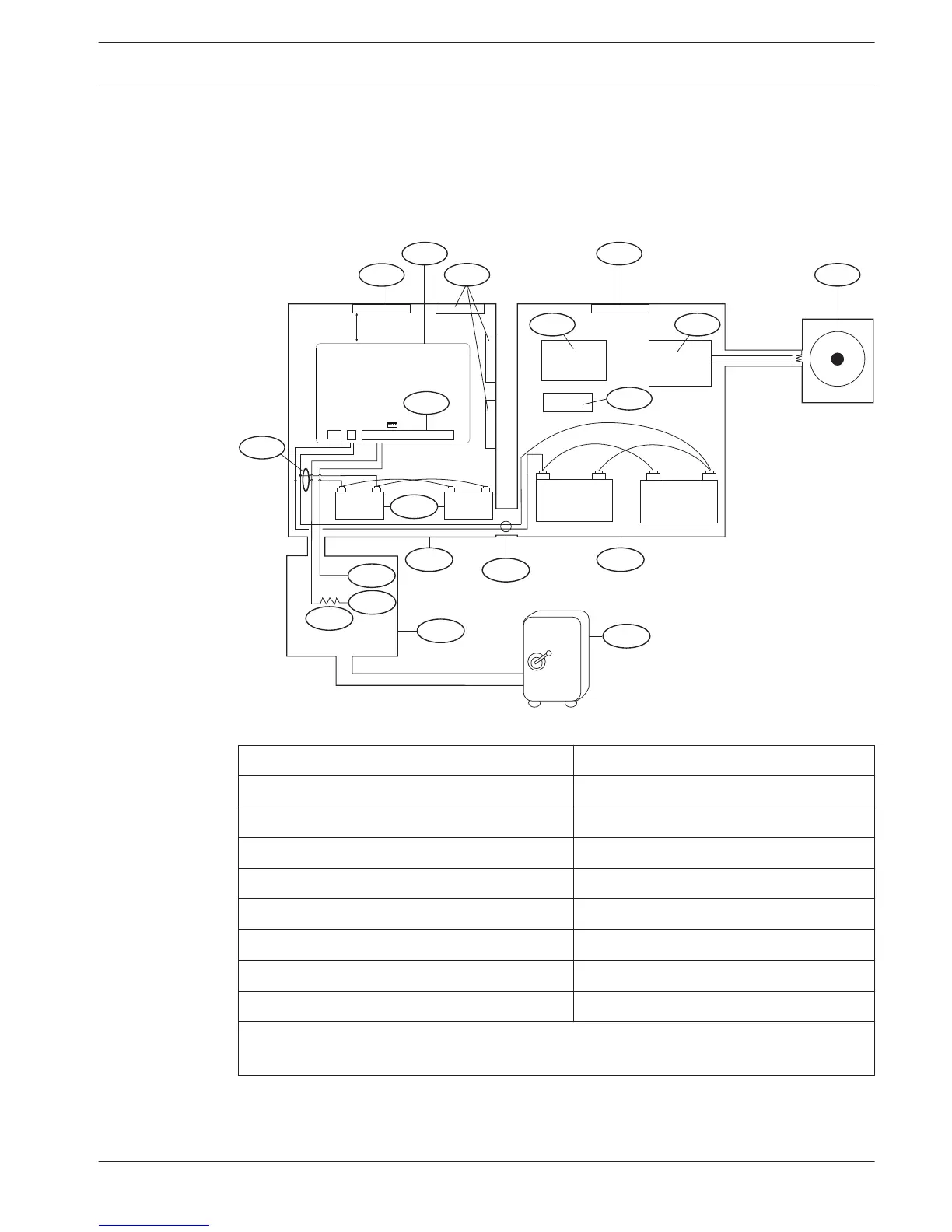

Figure 18.1: Rothenbuhler 5110 4001-42 High Security Bell to control panel wiring
Callout ᅳ Description
Callout ᅳ Description
1 ᅳ Self-contained UL listed vibration sensor 9 ᅳ D122/D122L Dual Battery Harness
2
2 ᅳ Control panel 10 ᅳ D126 Battery
3 ᅳ Accessory modules 11 ᅳ D8108A Enclosure
4 ᅳ High line security module 12 ᅳ Proximity/control unit
5 ᅳ 4001-42 Balanced Line Module 13 ᅳ Normally open (NO)
6 ᅳ 5110 Bell 14 ᅳ Normally closed (NC)
7 ᅳ D133 Relay 15 ᅳ End-of-line (EOL) resistor
8 ᅳ Alarm input point
1
16 ᅳ Safe
1
Use Terminals 1 through 8. (Select only one.)
2
Use a D113 Battery Lead Supervision Module to supervise the battery connections
.
Control Panel
Approved applications | en 91
Bosch Security Systems, Inc. Installation and System Reference Guide 2015.07 | 12 | F.01U.287.180

Bosch B5512 Specifications

General

Model	B5512
Category	Control Panel
Zones	48
Partitions	4
Series	B Series
Wired Zones	48
Programmable Outputs	2
On-board Relays	1
Keypads Supported	8
Manufacturer	Bosch
Input Voltage	16.5 VAC
Battery Backup	12 VDC, 7 Ah
Outputs	2
Communication Formats	Contact ID, SIA
Communication	Cellular
Power Supply	16.5 VAC
