3. Product description
3.1 Intended use
The BEA 070 (opacimeter) measures emissions in diesel
vehicles.
The BEA 070 can be used as a stand-alone unit or with
the BEA 550.
3.2 Required equipment
The BEA 070 can only be used via a PC/laptop and with
the BEA-AU-OBD system software.
3.2.1 Hardware
R PC/laptop with DVD/CD drive and Windows XP or
WIN 7 operating system
R CPU X86 (Celeron M): at least 1 GHz,
recommended dual-core 1.66 GHz
R Available space on hard disk: at least 1GB
R RAM: at least 1 GB
R Two vacant USB ports for the Bluetooth USB adapter
and for a USB cable
3.2.2 Software
Software installed on PC/laptop.
3.3 Scope of delivery
Name Part number
BEA 070
1 687 023 551
BEA 030 1 687 023 577
Case
with sticker
1 685 438 626
1 681 105 271
Power supply unit for BEA 030 1 687 023 620
Power cord (1.5 m) for
BEA030 power supply units
1 684 461 106
USB cable (3 m) 1 684 465 562
Power cord (4 m) for
BEA070 power supply units
1 684 461 182
Cleaning brush 1 687 929 006
Hose and exhaust gas
sampling probe (diesel)
1 680 703 047
1 680 790 044
USB cable (5 m) 1 684 465 563
Oil temperature sensor 1 687 230 068
Battery connecting cable B+/B– 1 684 463 822
Connecting cable
for cigarette lighter socket
1 684 463 547
Primary adapter cable 1 684 460 196
Bluetooth USB adapter 1 687 023 449
Software package with BEA-PC system
software and AU vehicle data
1 687 005 087
Operating instructions 1 689 989 113
1 689 989 114
1 689 979 922
3.4 Device description
459909-01_Ko
BEA 070
1
2
14
12
11
10
9
8
7
6
4
3
13
5

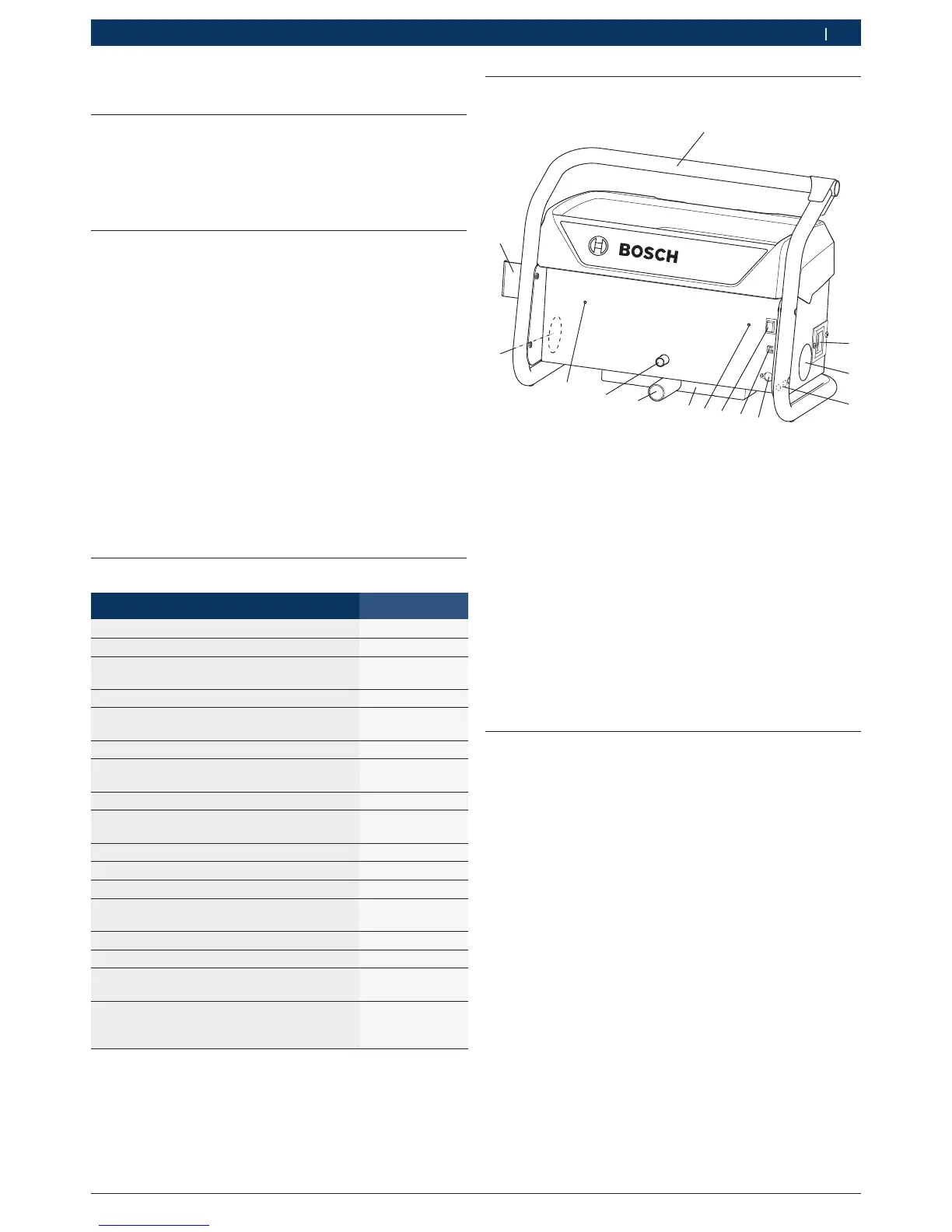

Fig. 1: BEA 070
1 Carrying handle
2 Mains connection
3 Cover for optical head (transmitter)
4 Holes for cable tie (power cord strain relief)
5 Power supply unit connection
(only with battery pack special accessory)
6 USB port
7 On/Off button
8 LED2 for battery capacity
(only with battery pack special accessory)
9 Collector for soot particles
10 Connection for workshop extraction
11 Connection for exhaust gas sampling hose
12 LED1
13 Cover for optical head (receiver)
14 Retaining panel for exhaust gas sampling probe
3.5 Special accessories
Information on special accessories can be obtained
from your authorized Bosch dealer.
